Front Suspension System: Description

Front suspension consists of a strut assembly, steering knuckle, control arm(s) and stabilizer bar. See Fig 1 and Fig 2 . After replacing any suspension component, check wheel alignment. See SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

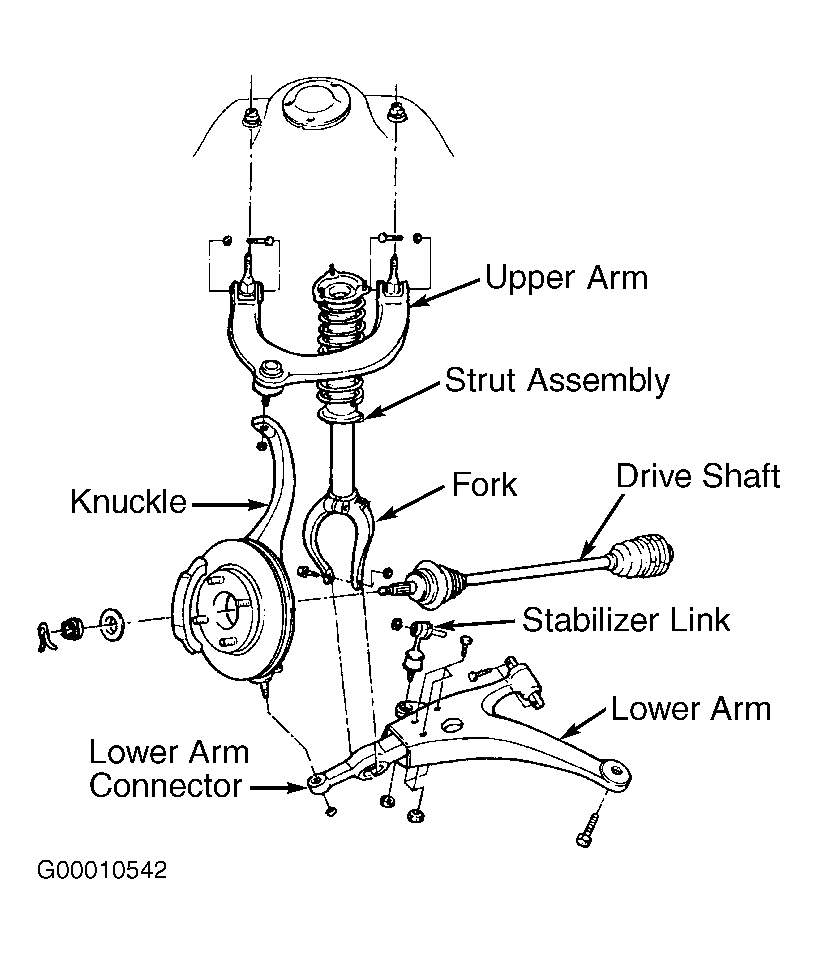

Fig 1: Exploded View Of Front Suspension (Accent, Elantra & Santa Fe)

Courtesy of HYUNDAI MOTOR CO.

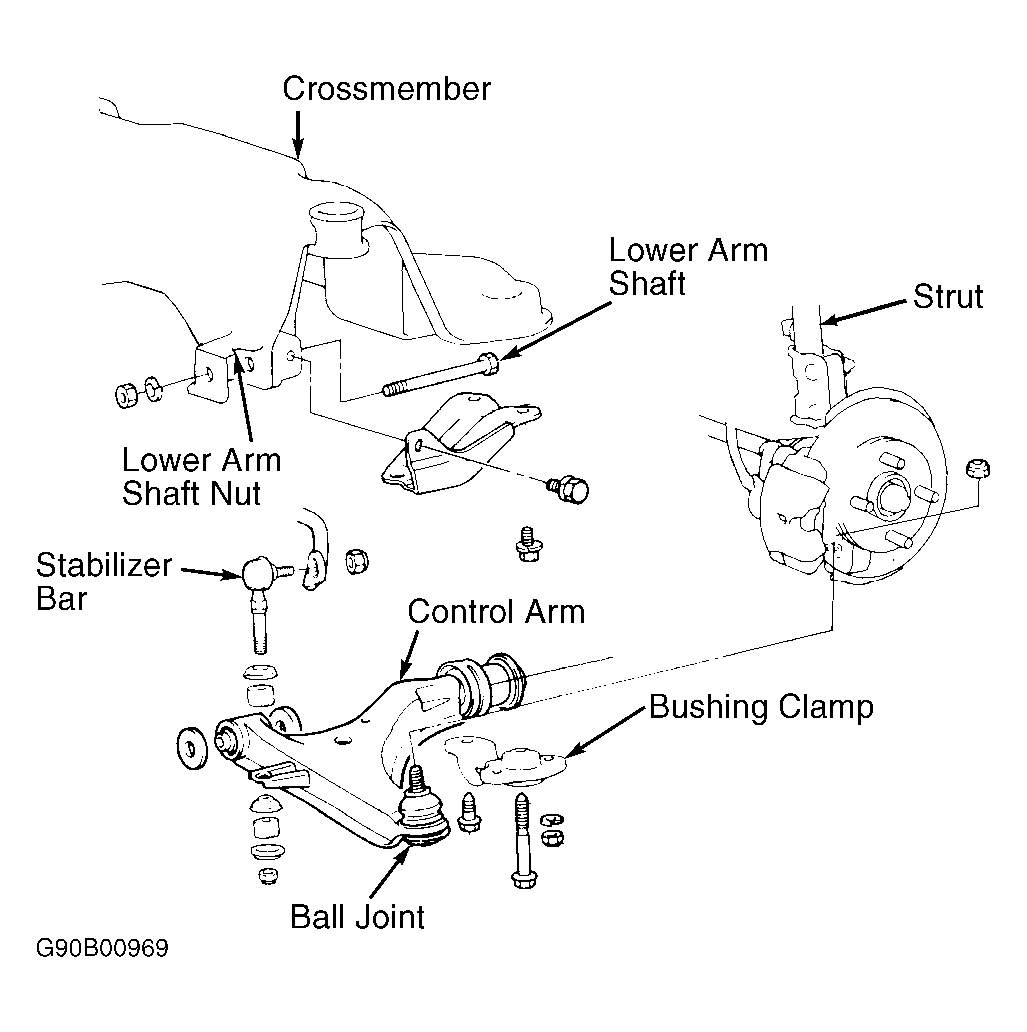

Fig 2: Exploded View Of Front Suspension (Sonata & XG350)

Courtesy of HYUNDAI MOTOR CO.
