Planetary Gear Sets

The planetary gear sets have two planetary gears each. The carrier of one gear set is connected mechanically to the annulus gear of the other.

This arrangement allows the gear ratio to be varied by connecting or locking the carriers and sun gears.

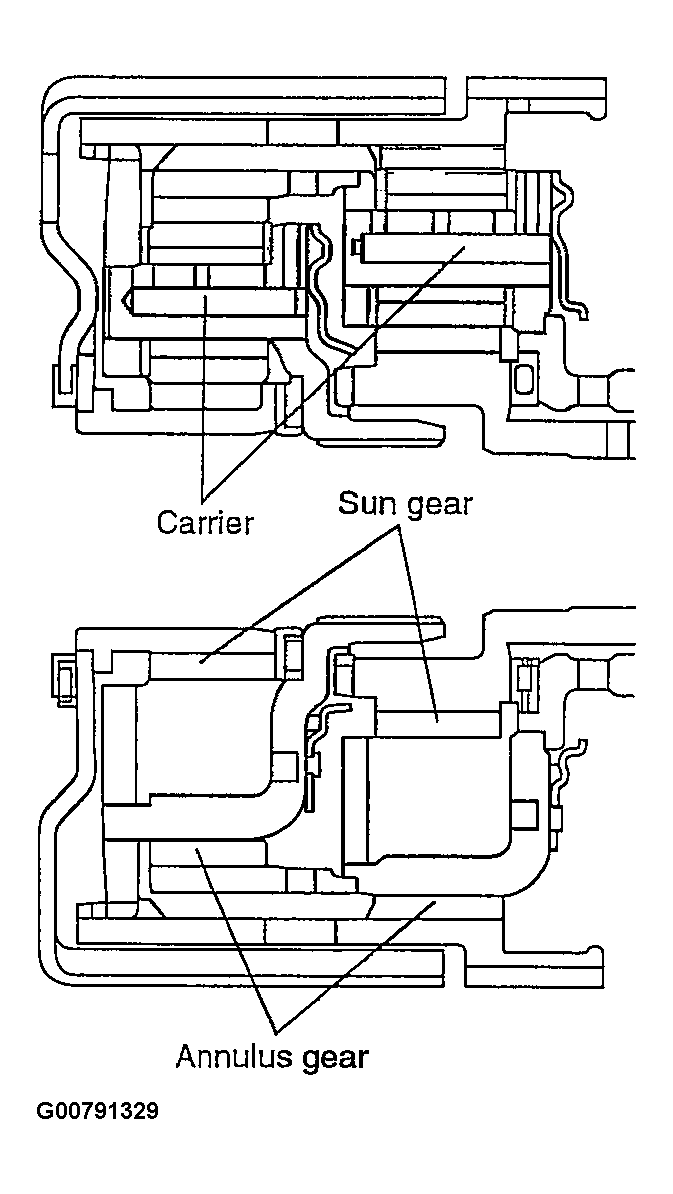

Fig 1: Identifying Planetary Gear Sets Components
G00791329Courtesy of HYUNDAI MOTOR CO.
