Automatic Transaxle Hydraulic Circuit: Third

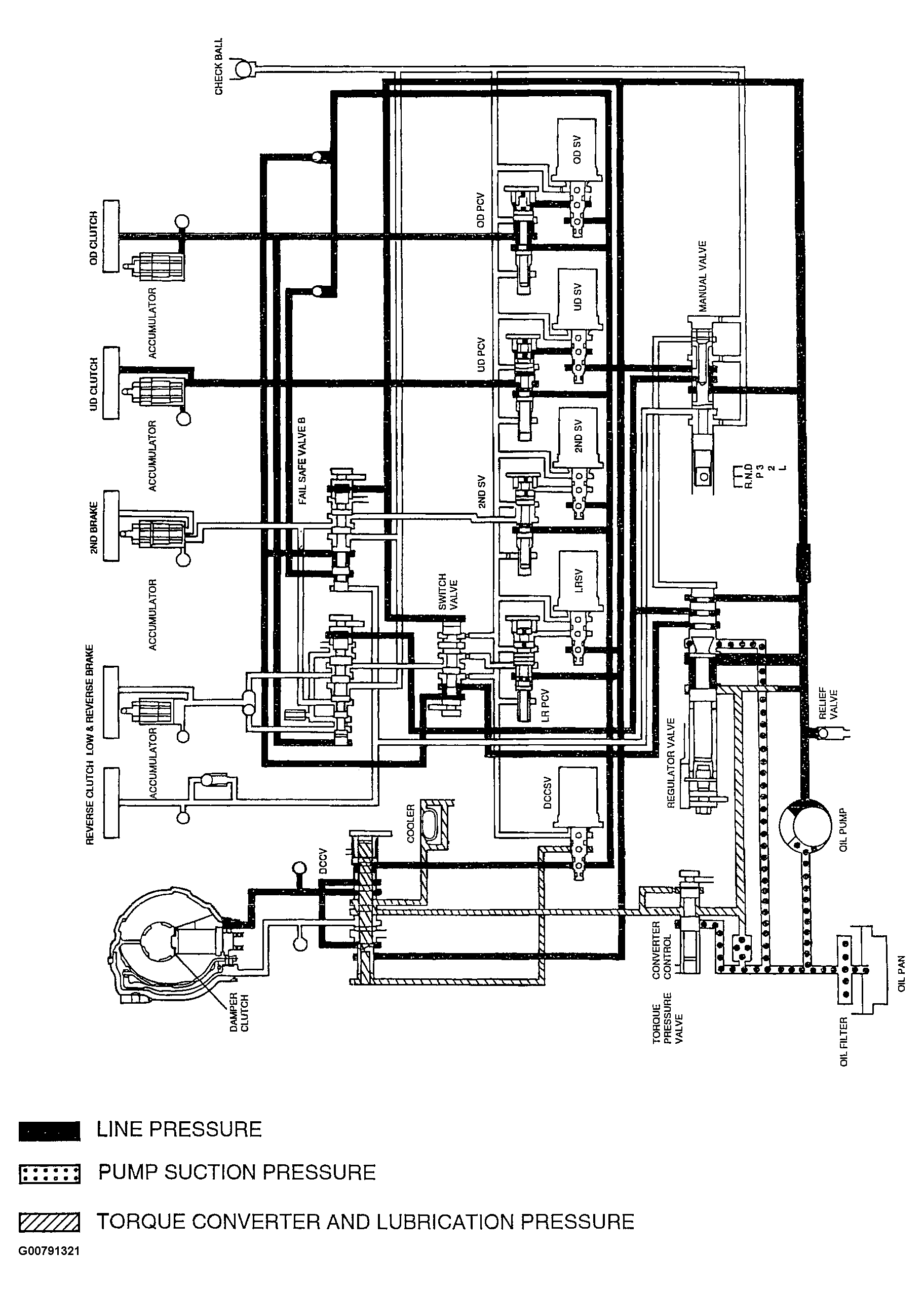

Fig 1: Third Gear Hydraulic Circuit
G00791321Courtesy of HYUNDAI MOTOR CO.
