Removal & Installation

Disconnect the negative (-) battery terminal.
Remove the lower crash panel.
Remove the ETACS CM from the junction block and disconnect the connectors. See Fig 1 .
To install, reverse removal procedure.

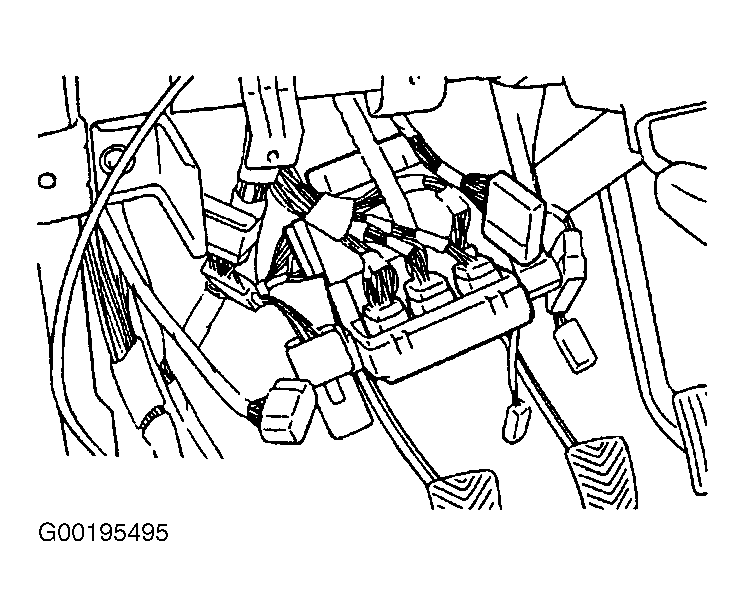

Fig 1: Removing ETACS CM From Junction Block

Courtesy of HYUNDAI MOTOR CO.
