Home › Hyundai › 2002 › Santa Fe GLS, AWD › Repair and Diagnosis › Engine Mechanical › Lubrication System › 2.7L V6 Engine › General › Troubleshooting

2.7L V6 Engine: General: Troubleshooting

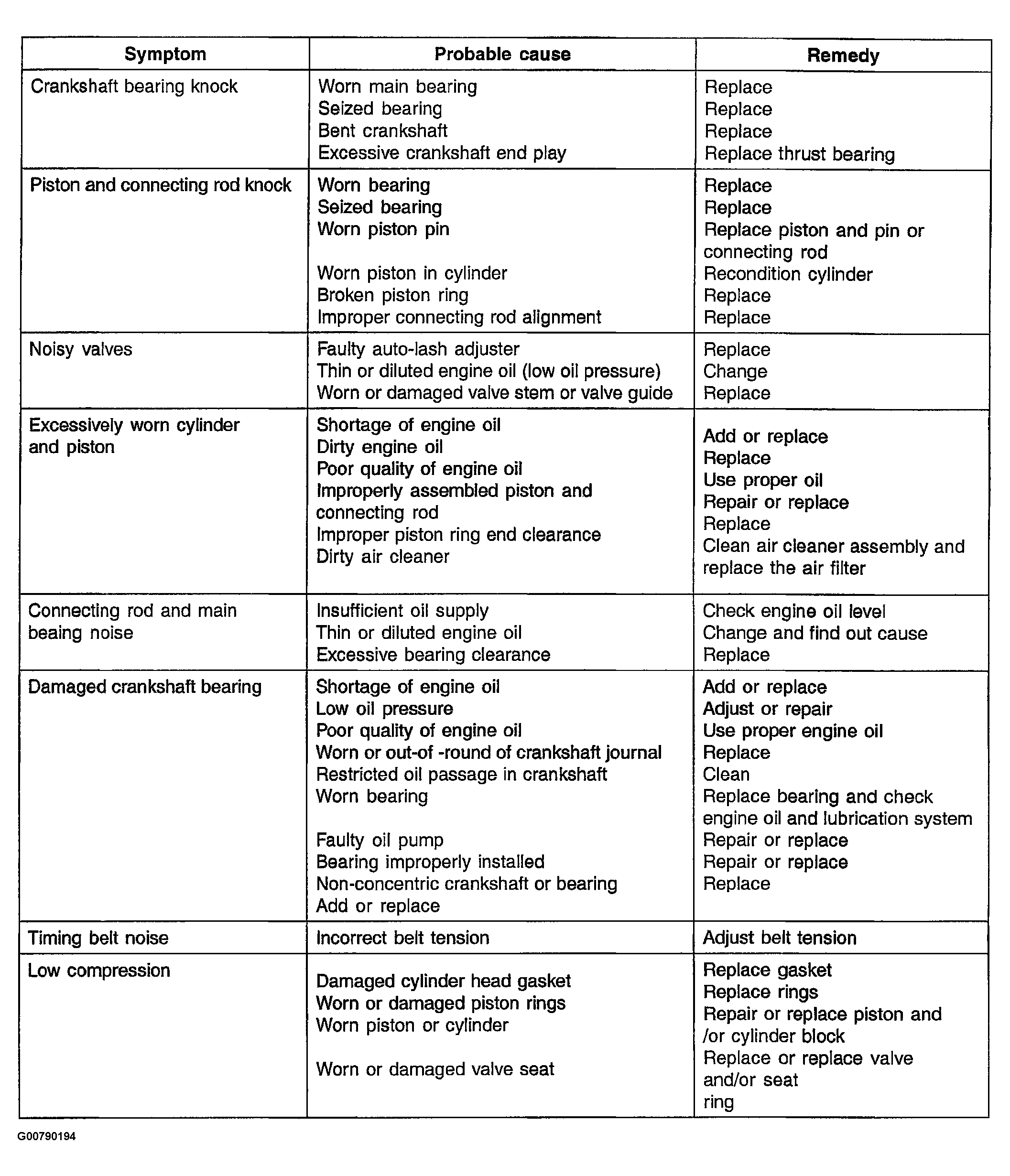

Fig 1: Troubleshooting Table (1 Of 2)
G00790194Courtesy of HYUNDAI MOTOR CO.

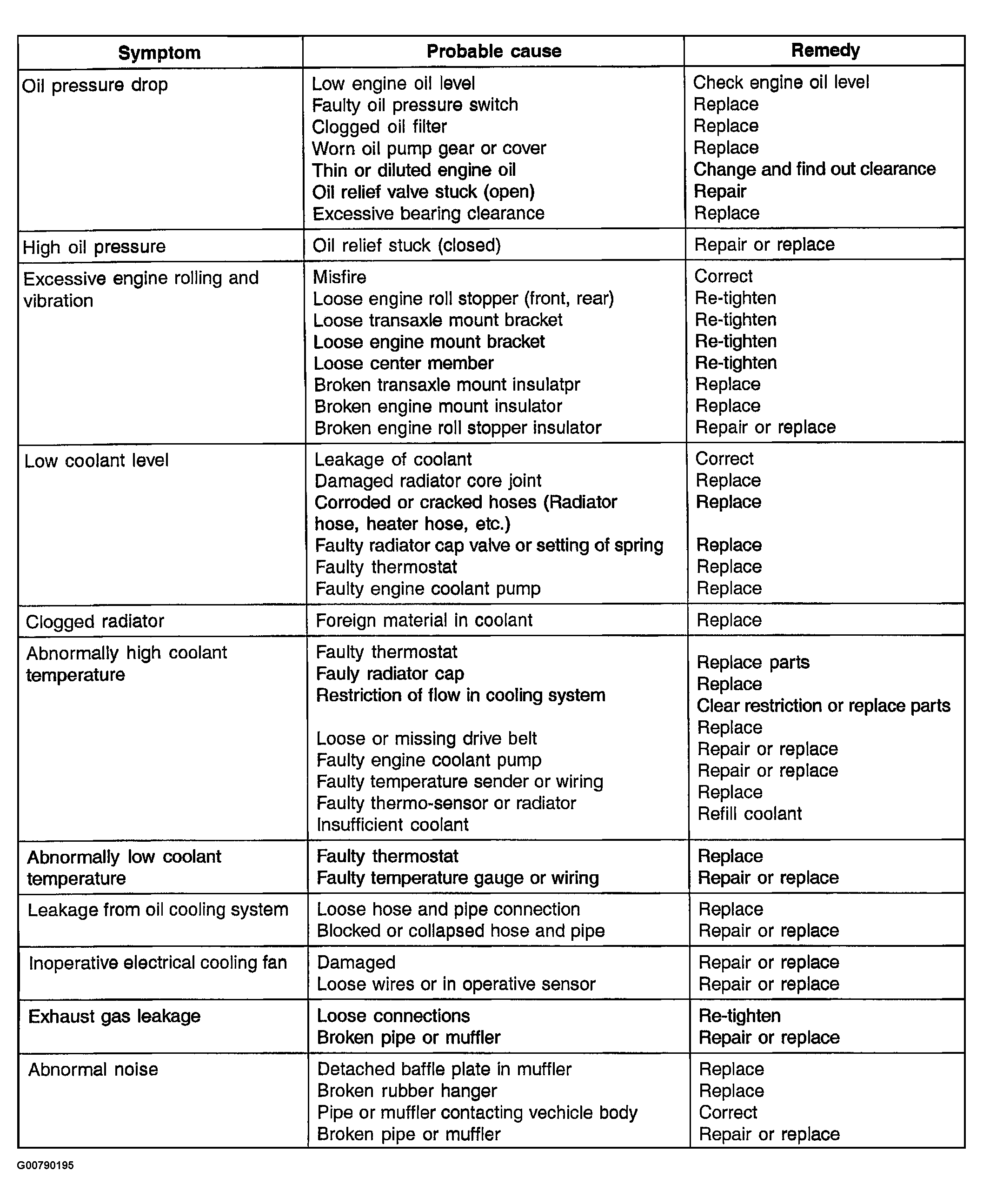

Fig 2: Troubleshooting Table (2 Of 2)
G00790195Courtesy of HYUNDAI MOTOR CO.
