Home › Hyundai › 2002 › Santa Fe GLS, AWD › Repair and Diagnosis › Engine Mechanical › Lubrication System › 2.7L V6 Engine › Main Moving System › Camshaft › Components

Main Moving System: Camshaft: Components

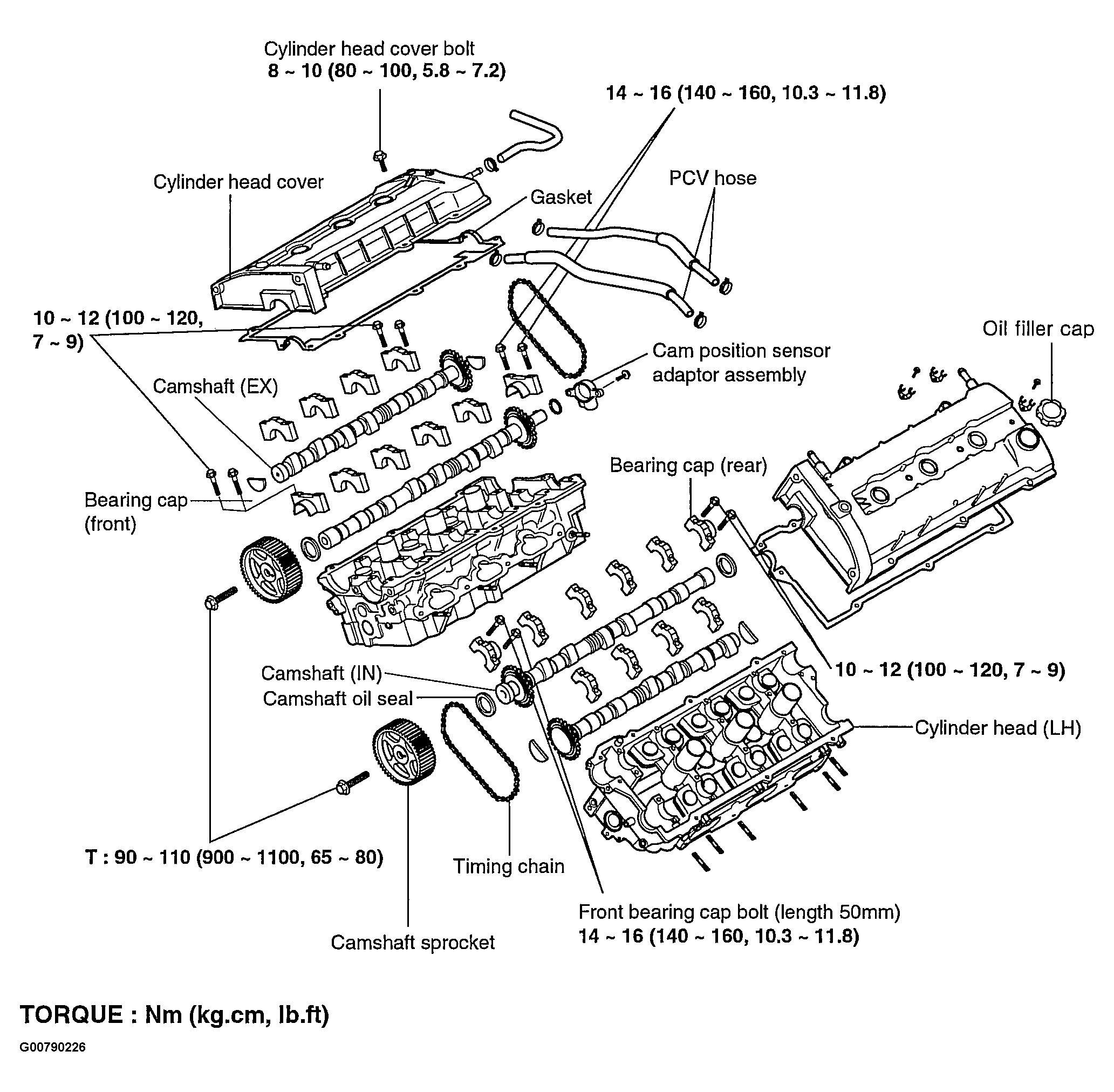

Fig 1: Camshaft Components
G00790226Courtesy of HYUNDAI MOTOR CO.
