Power Window Main Switch

Fig 1: Identifying Power Window Main Switch Connector Terminals
G01139025Courtesy of HYUNDAI MOTOR CO.

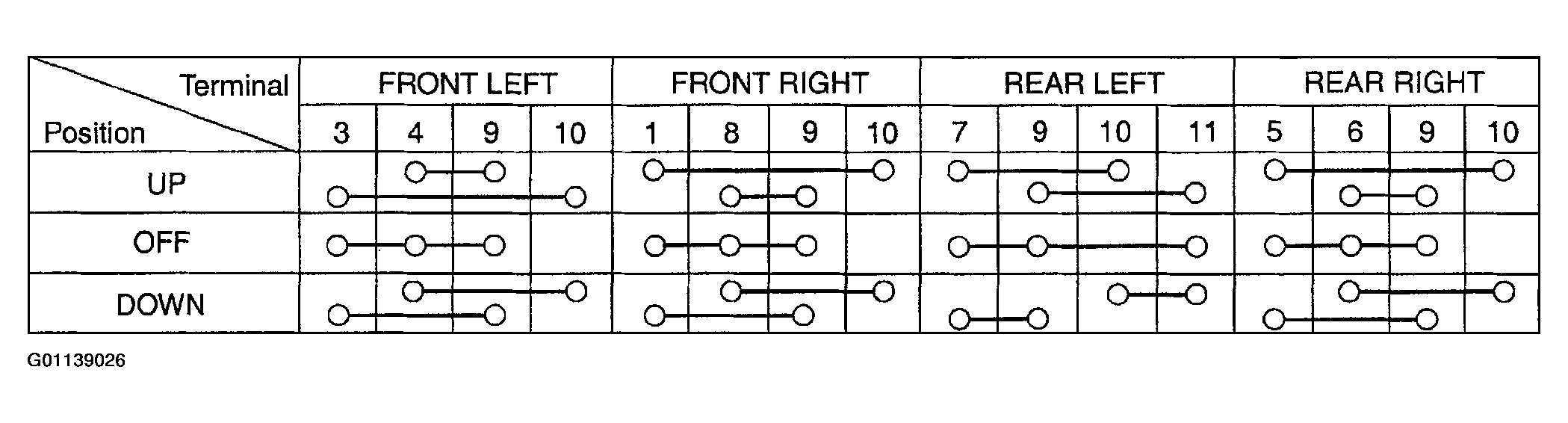

Fig 2: Power Window Main Switch Continuity Table
G01139026Courtesy of HYUNDAI MOTOR CO.
