Main Moving System: Crankshaft: Components

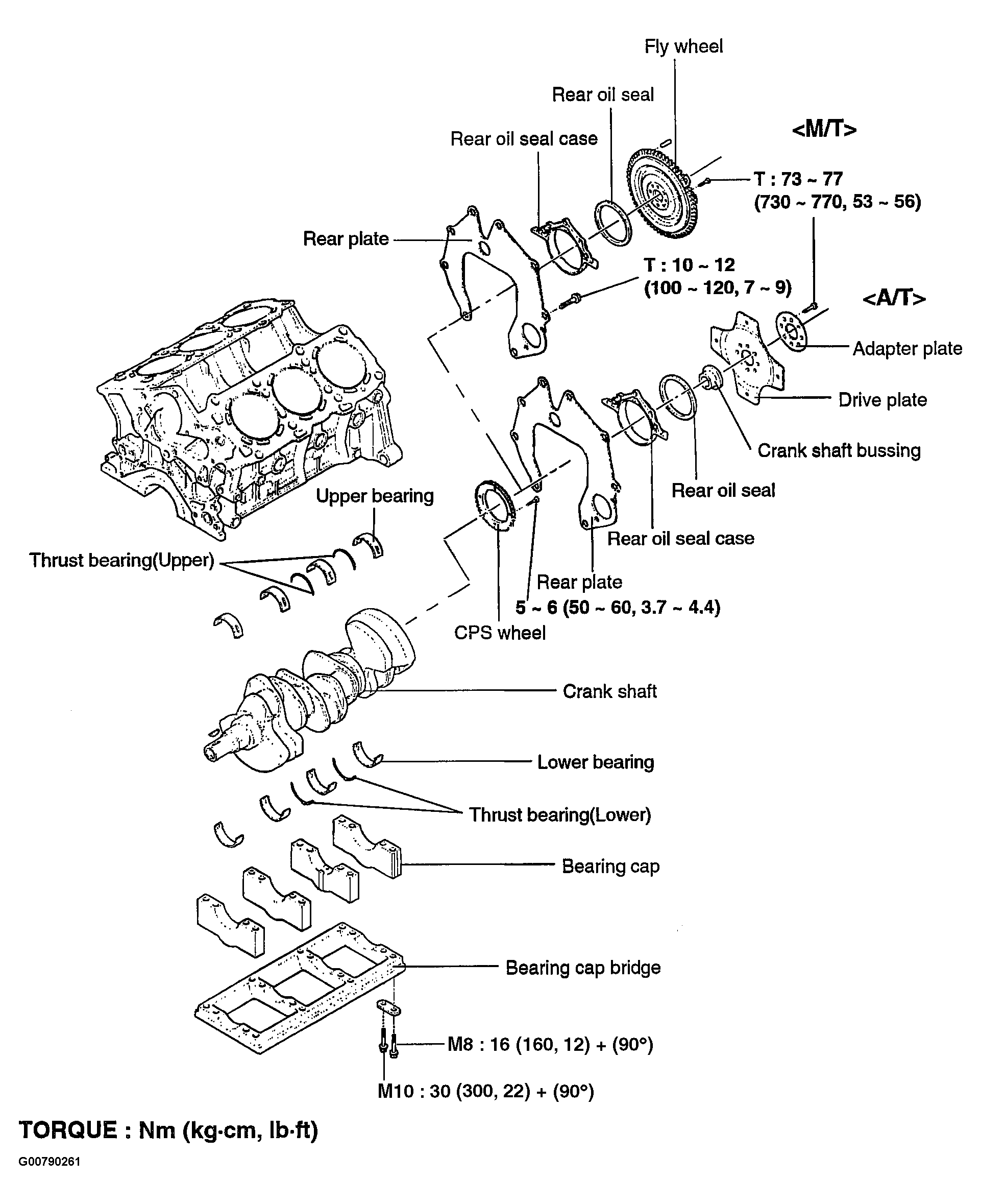

Fig 1: Crankshaft Components
G00790261Courtesy of HYUNDAI MOTOR CO.
