Hydraulic Pressure Test Diagnosis Table

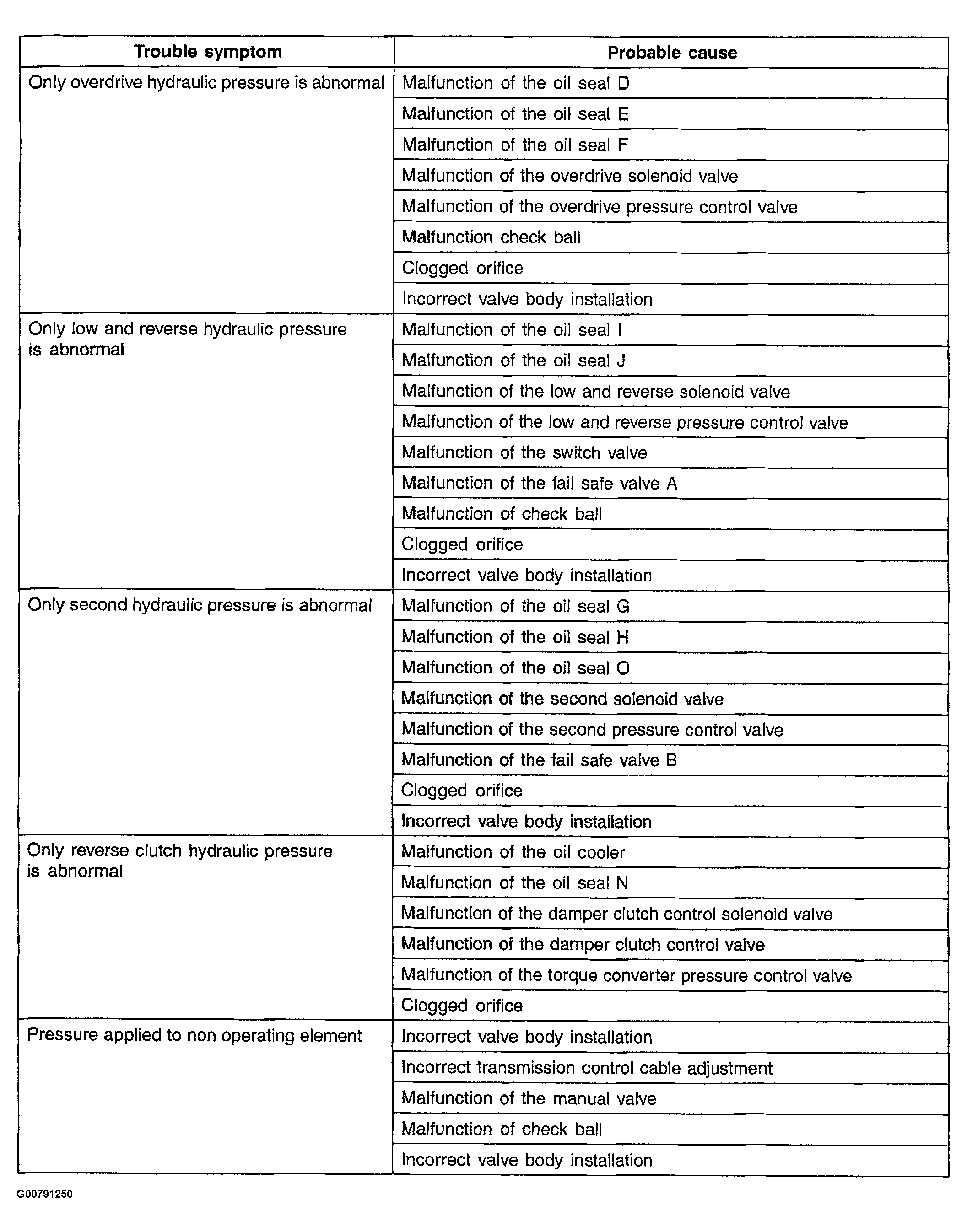

Fig 1: Hydraulic Pressure Test Diagnosis Table (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

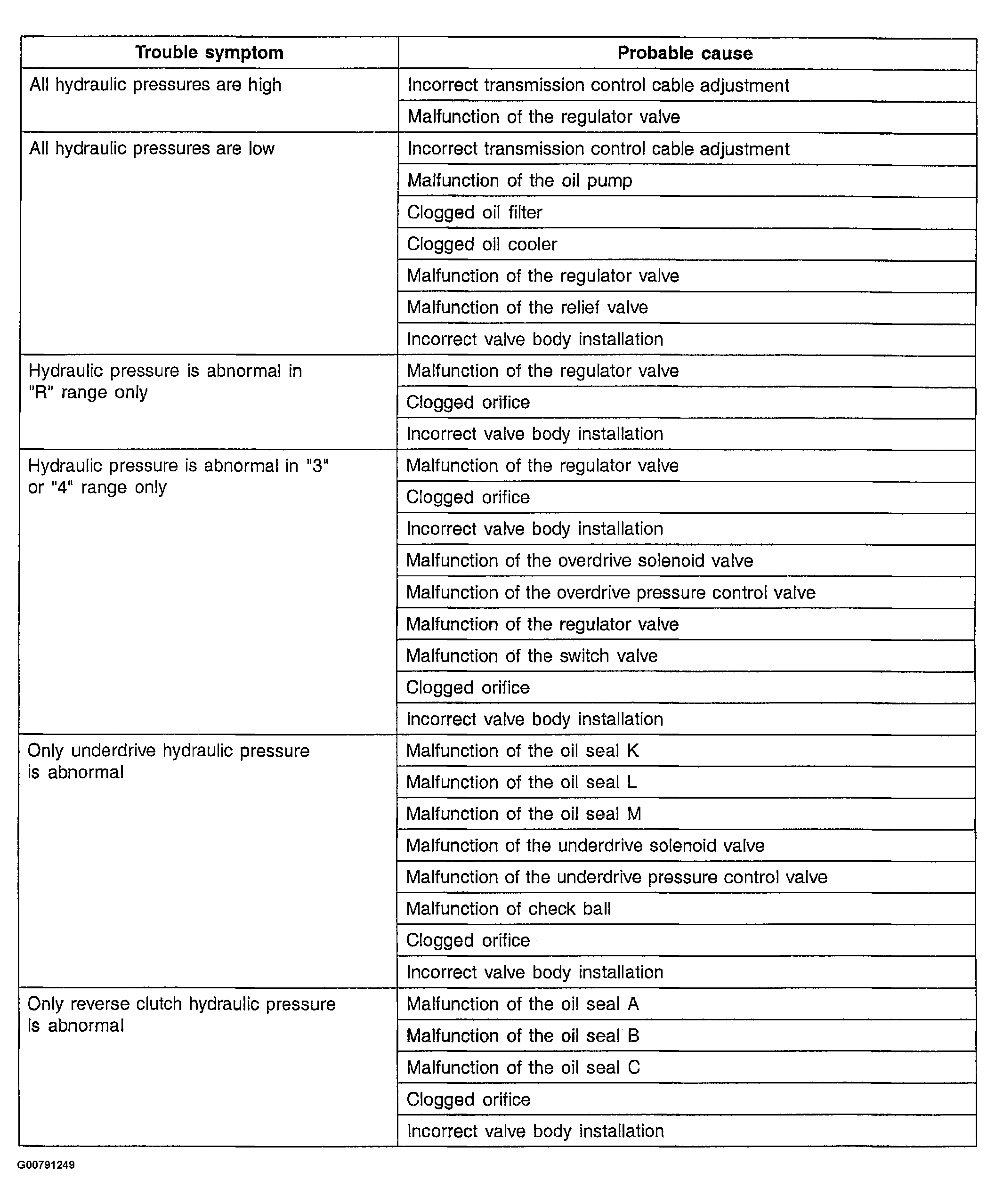

Fig 2: Hydraulic Pressure Test Diagnosis Table (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
