Inspection Procedure 9

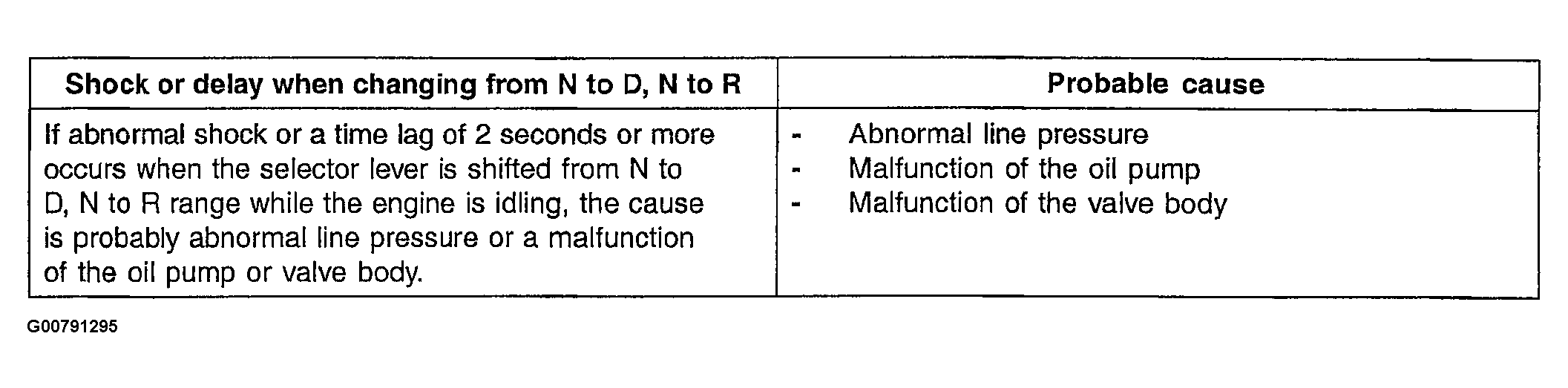

Fig 1: Inspection Procedure 9 Definitions & Probable Causes
G00791295Courtesy of HYUNDAI MOTOR CO.

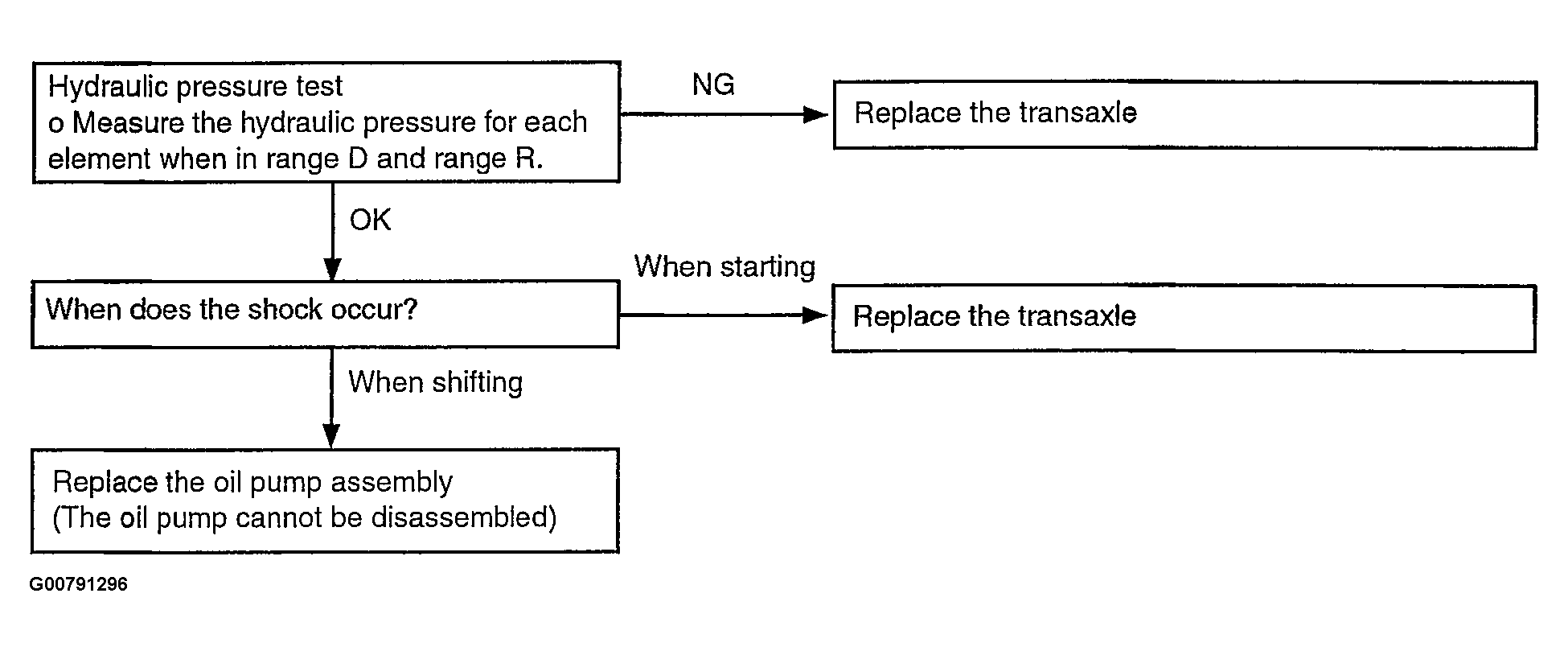

Fig 2: Inspection Procedure 9 Diagnostic Flow Chart
G00791296Courtesy of HYUNDAI MOTOR CO.
