Automatic Transaxle System
›
Inspection Process For Trouble Symptoms
›
Inspection Procedure 3
Inspection Procedure 3

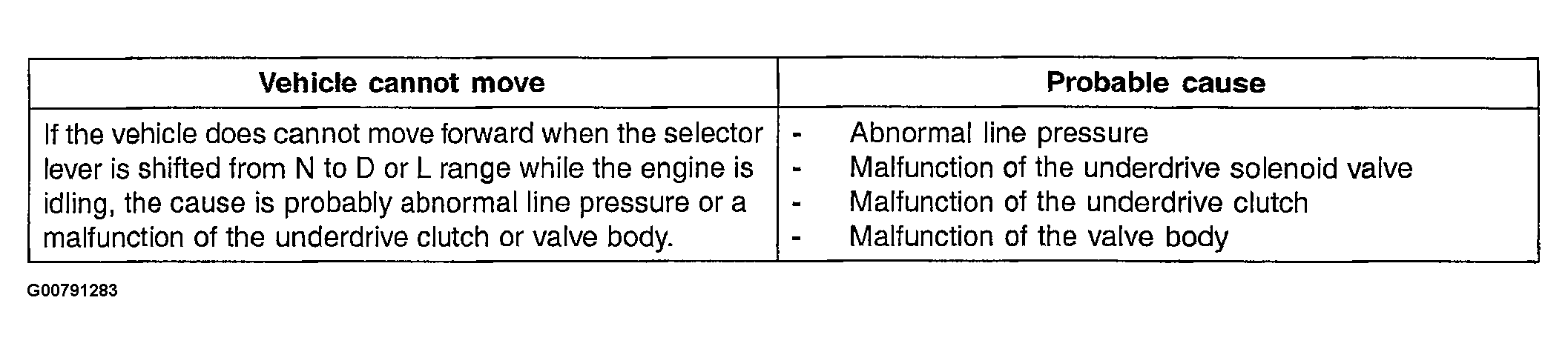

Fig 1: Inspection Procedure 3 Definitions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

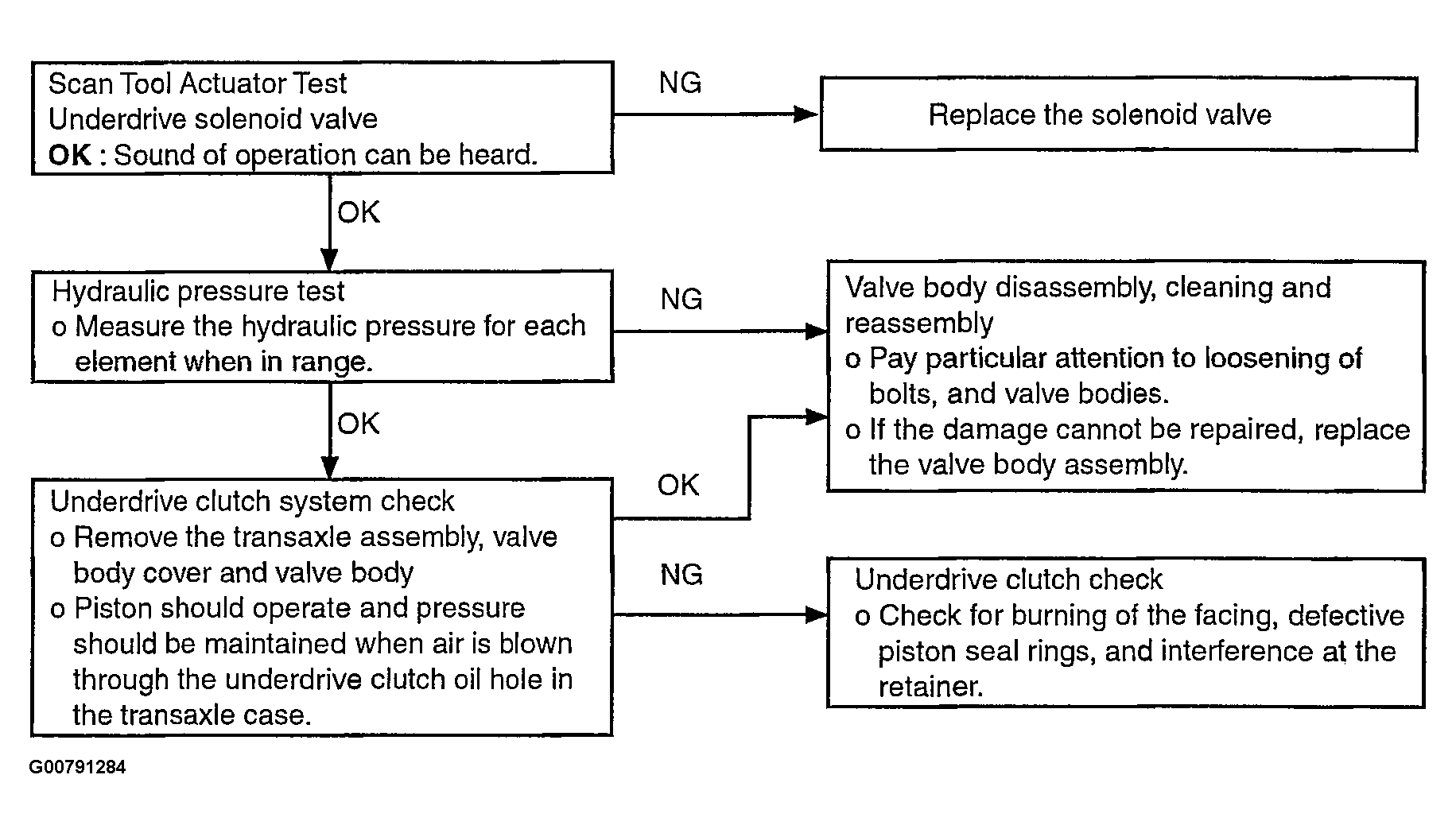

Fig 2: Inspection Procedure 3 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
