Front Case And Lubrication System: Components

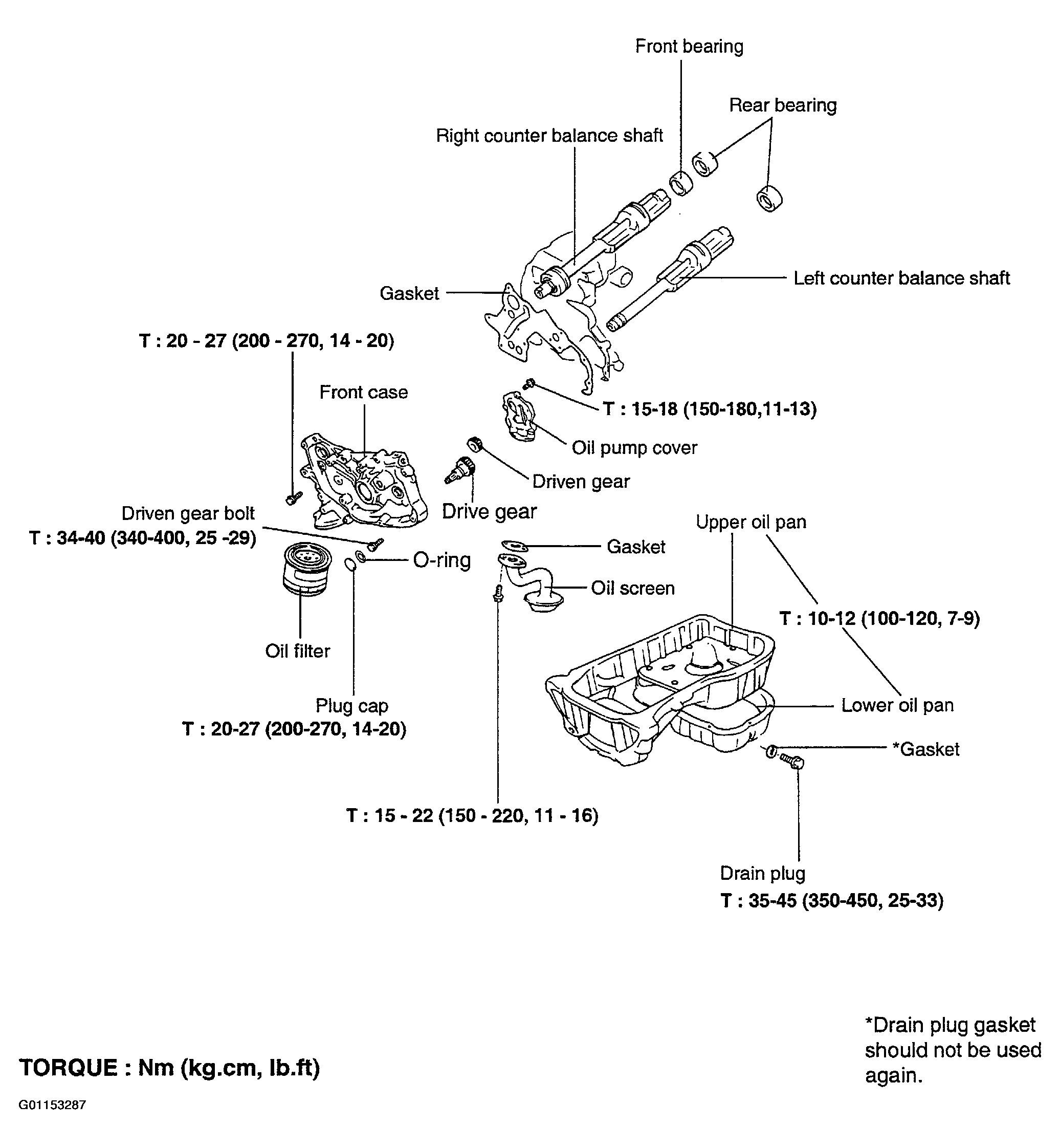

Fig 1: Front Case Components
G01153287Courtesy of HYUNDAI MOTOR CO.
