Operating Elements & Their Function

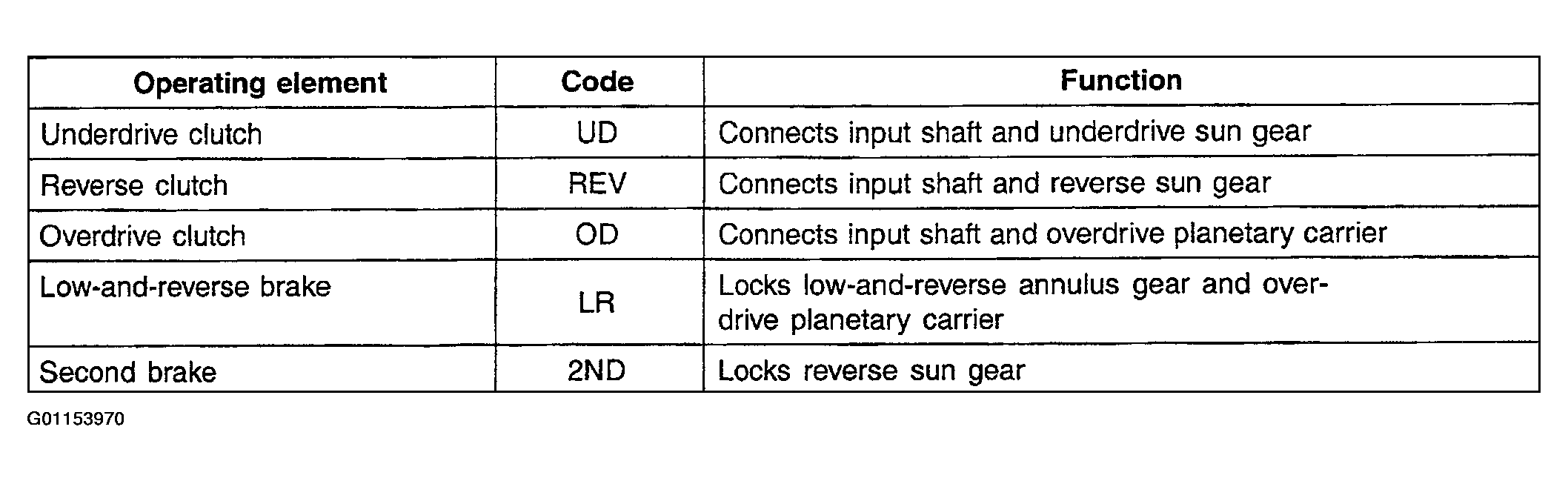

Fig 1: Operating Elements & Function Table
G01153970Courtesy of HYUNDAI MOTOR CO.
