2-3 Shift Flare - TCM Reprogramming Instructions (02-40-003)

Publication date: 2002-02-01
Reference number: 02-40-003

2-3 SHIFT FLARE - TCM REPROGRAMMING INSTRUCTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-40-003, Date of Issue: January, 2002

HYUNDAI:	2002 Sonata
GROUP:	Transaxle

DESCRIPTION

2002 SONATA 2-3 SHIFT FLARE TCM REPROGRAMMING INSTRUCTIONS

This bulletin provides a procedure to reprogram the TCM (Transaxle Control Module) software by using the Hi-Scan Pro. The 2002 Sonata updated software addresses the following shift condition:

2-3 shift flare (engine speed increases during shift).

BULLETIN CONTENT

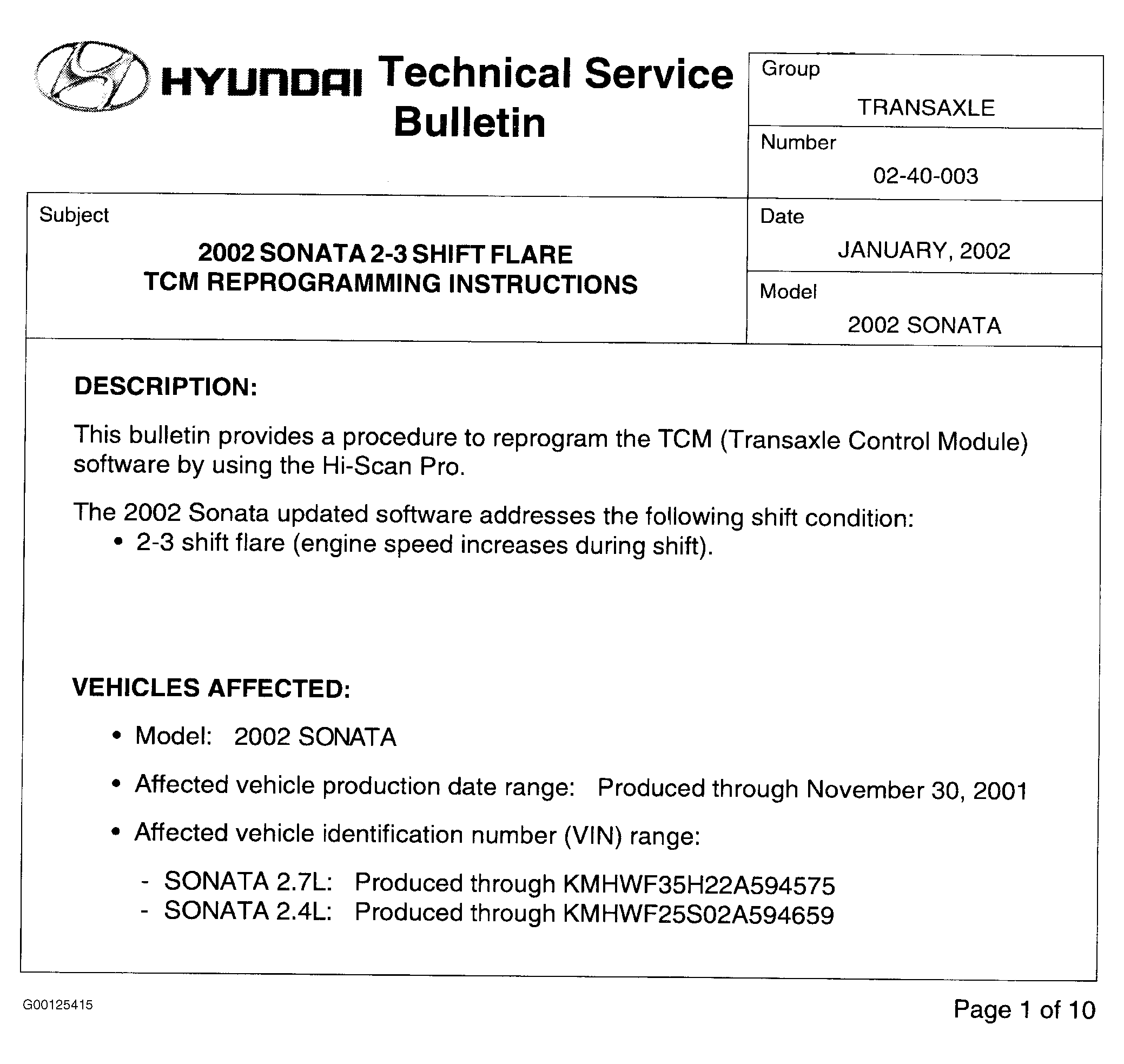

Fig 1: Page 1 of Bulletin

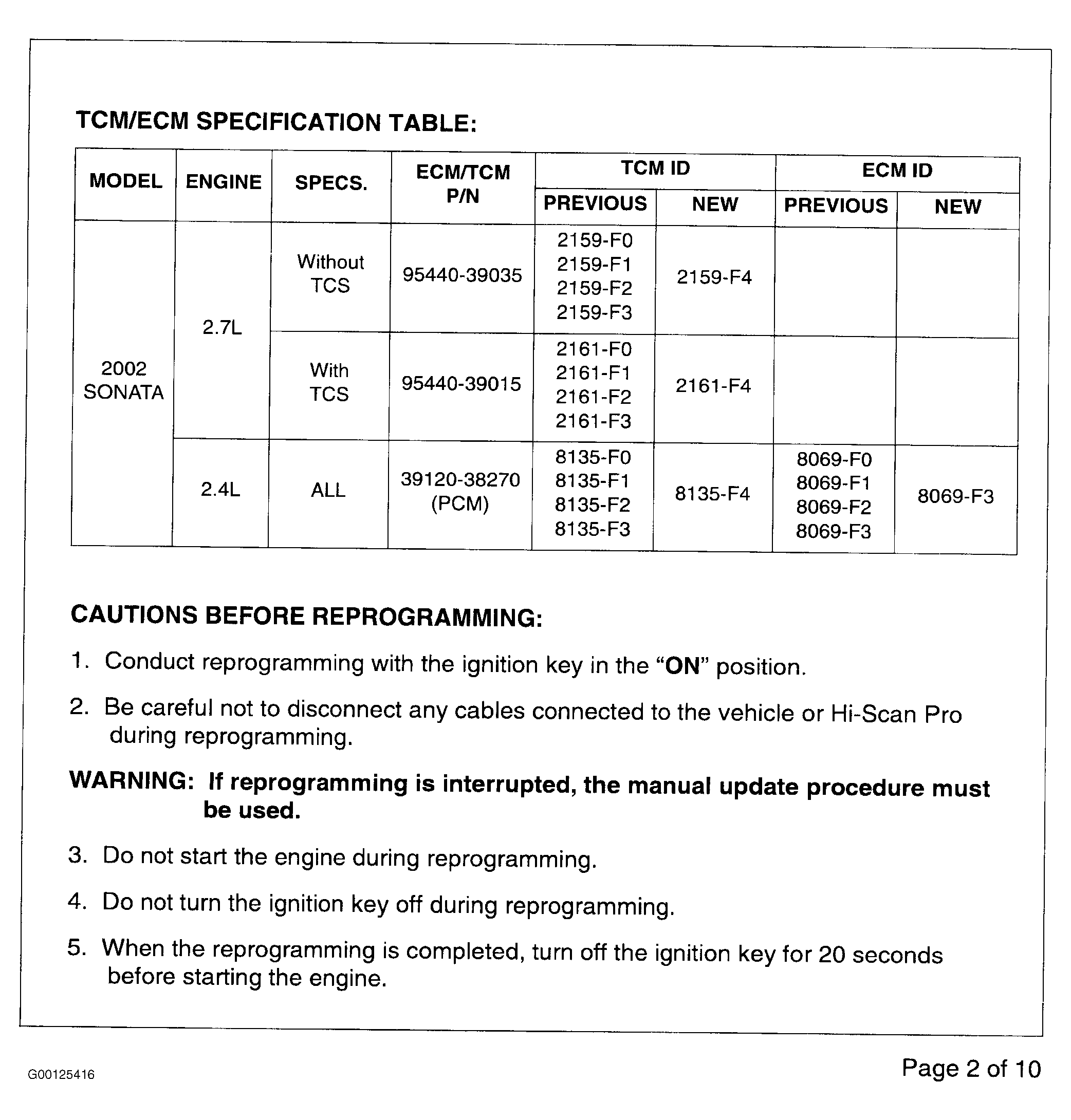

Fig 2: Page 2 of Bulletin

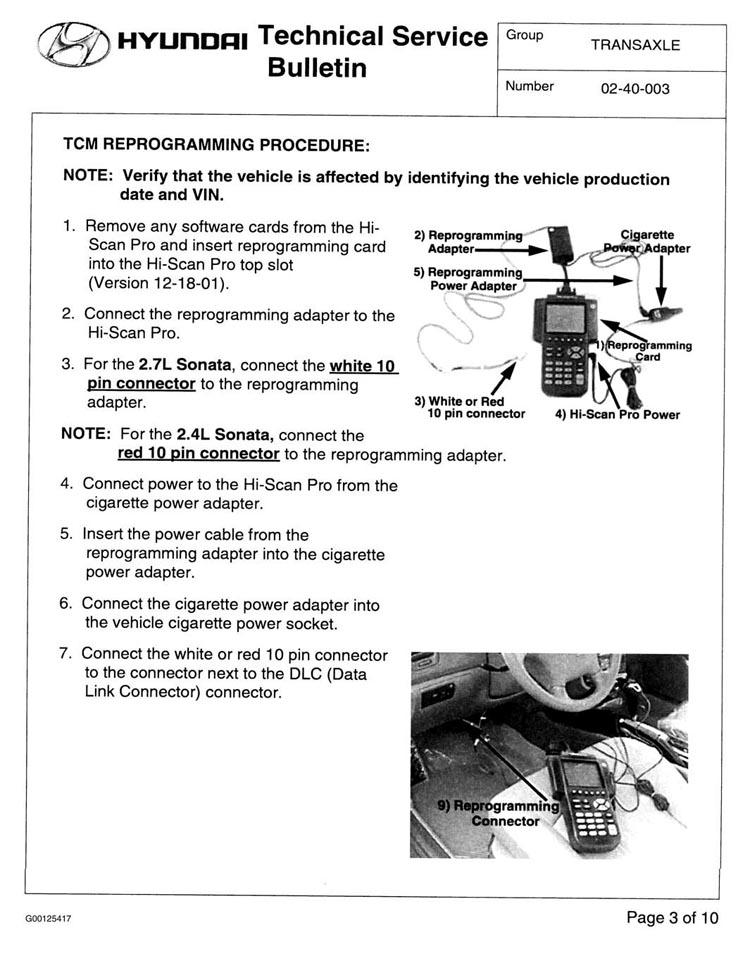

Fig 3: Page 3 of Bulletin

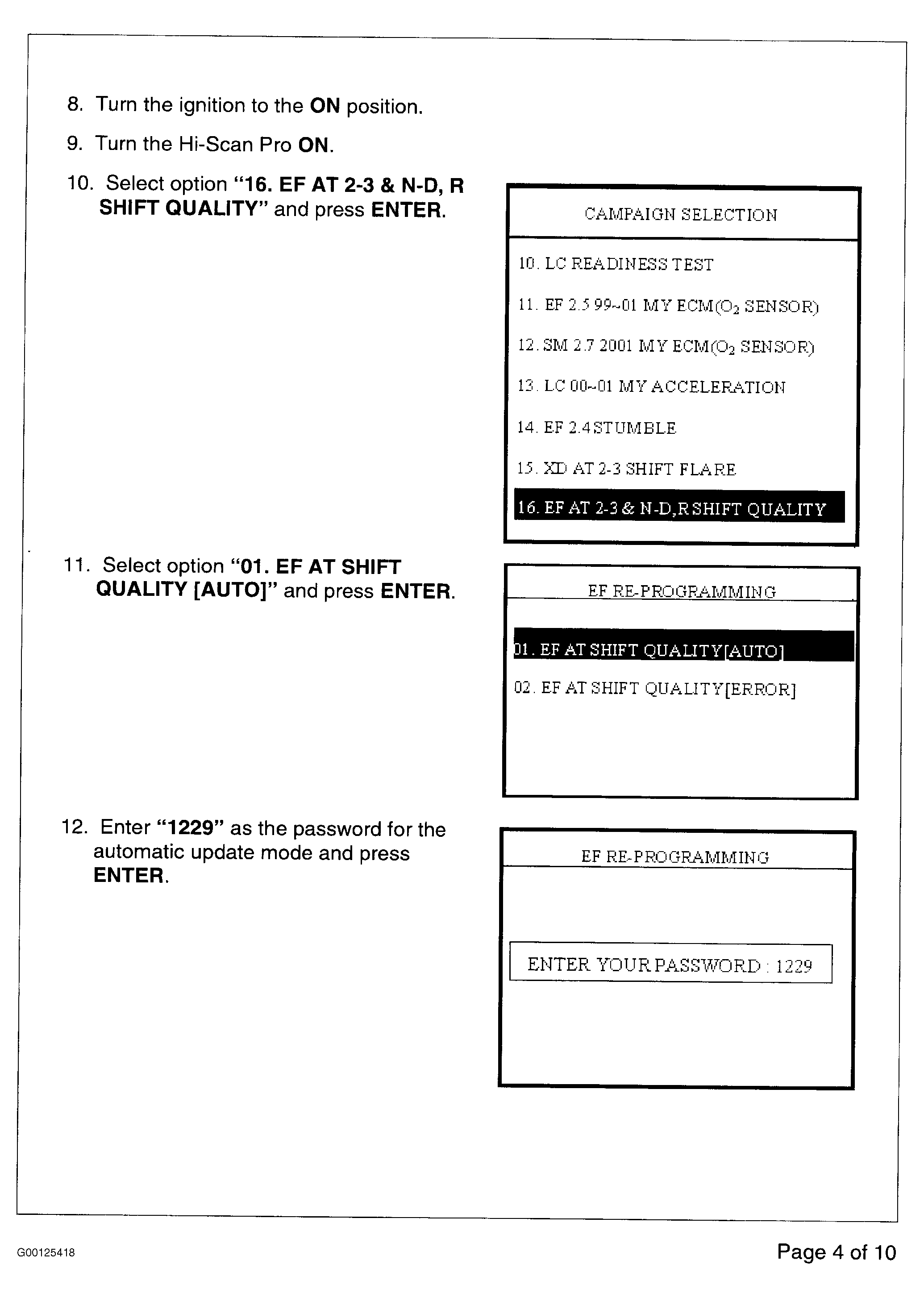

Fig 4: Page 4 of Bulletin

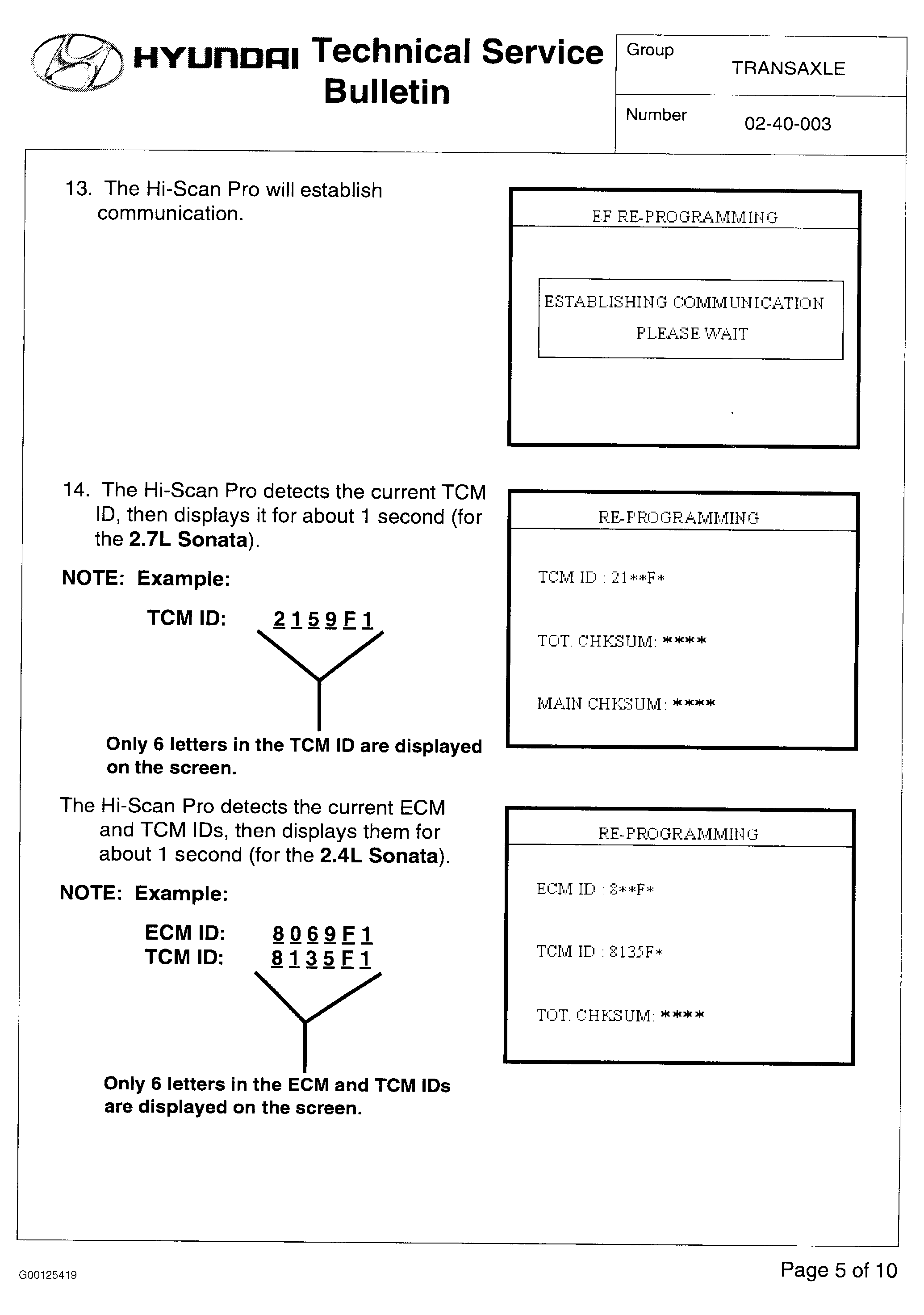

Fig 5: Page 5 of Bulletin

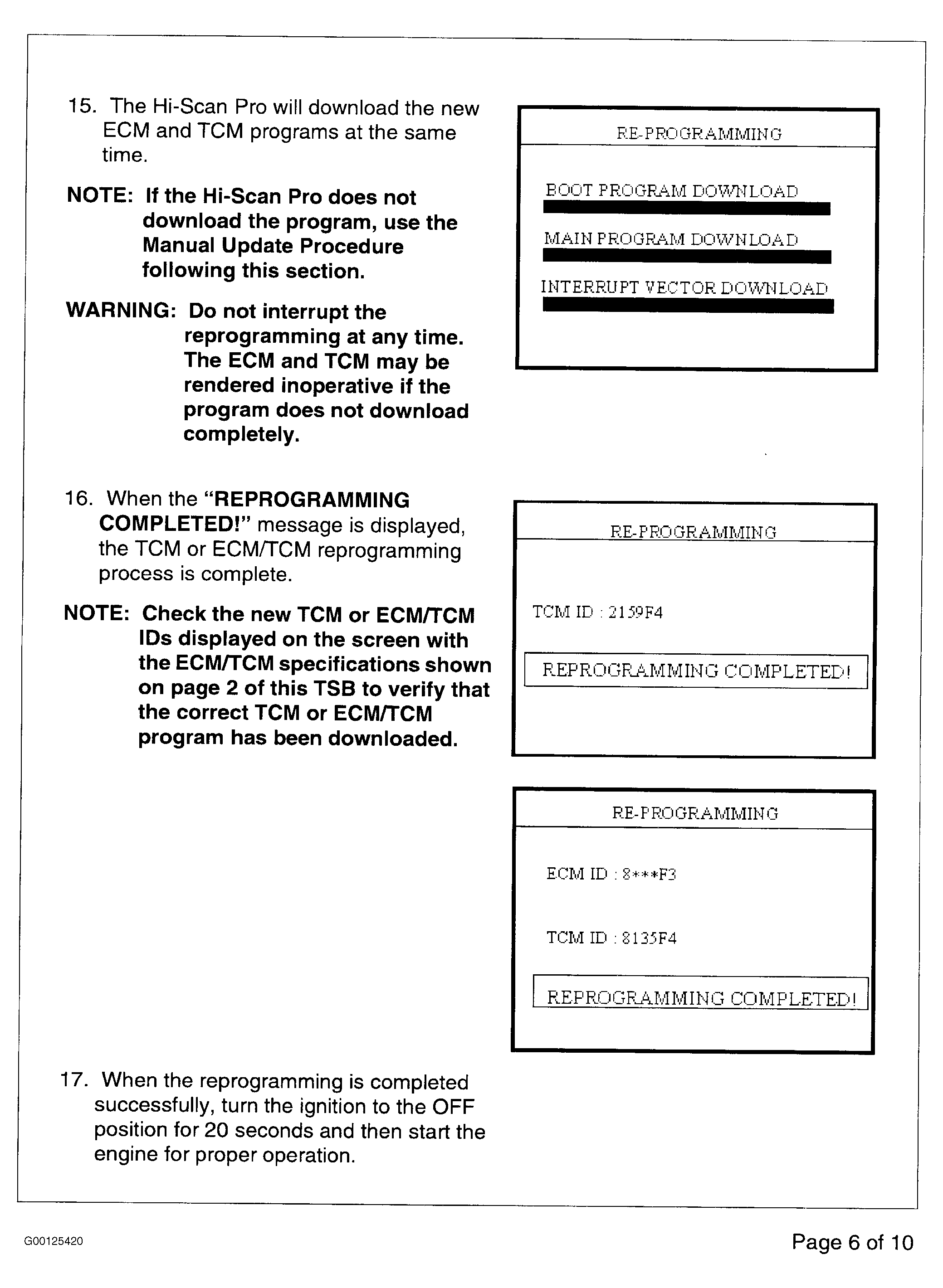

Fig 6: Page 6 of Bulletin

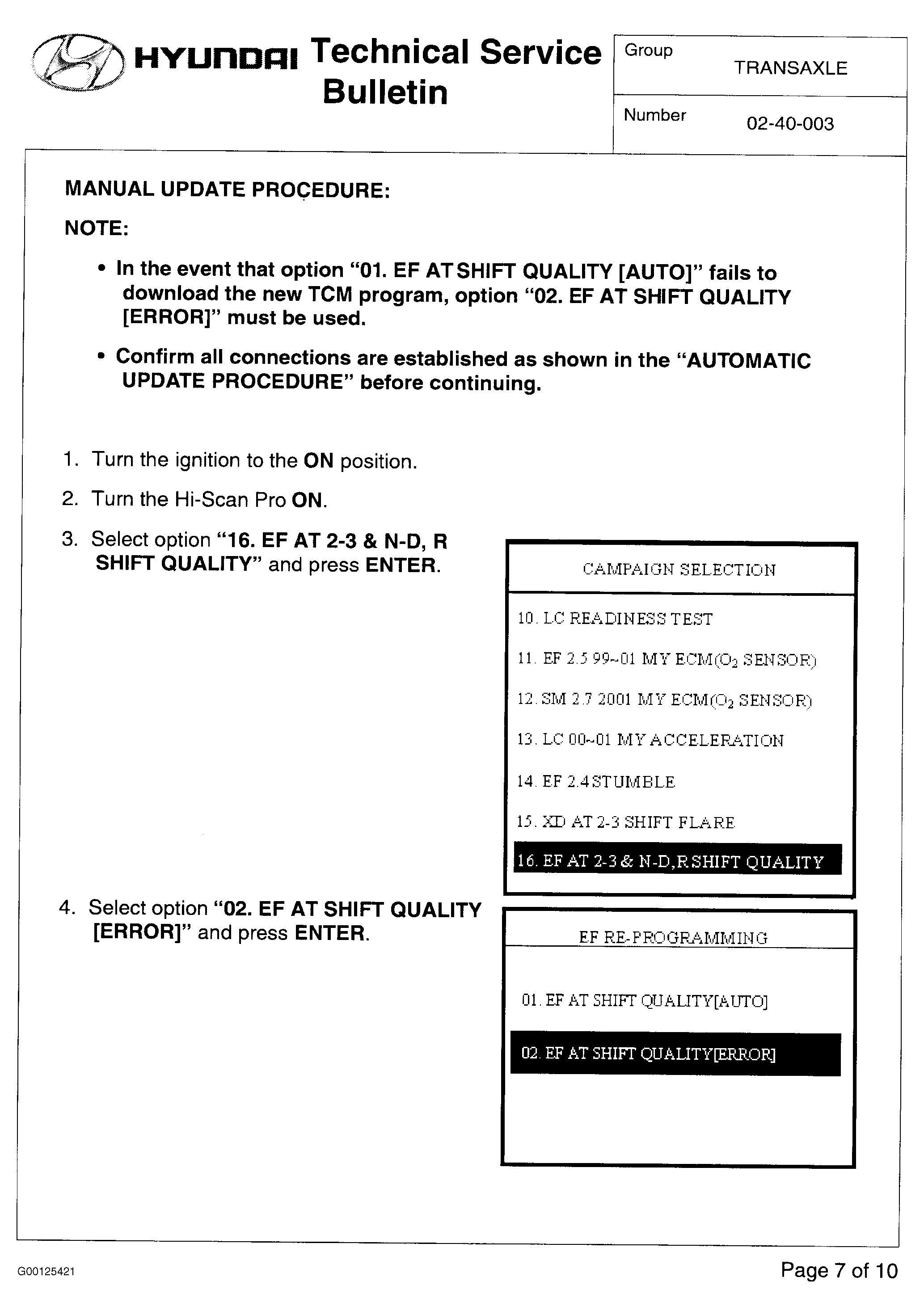

Fig 7: Page 7 of Bulletin

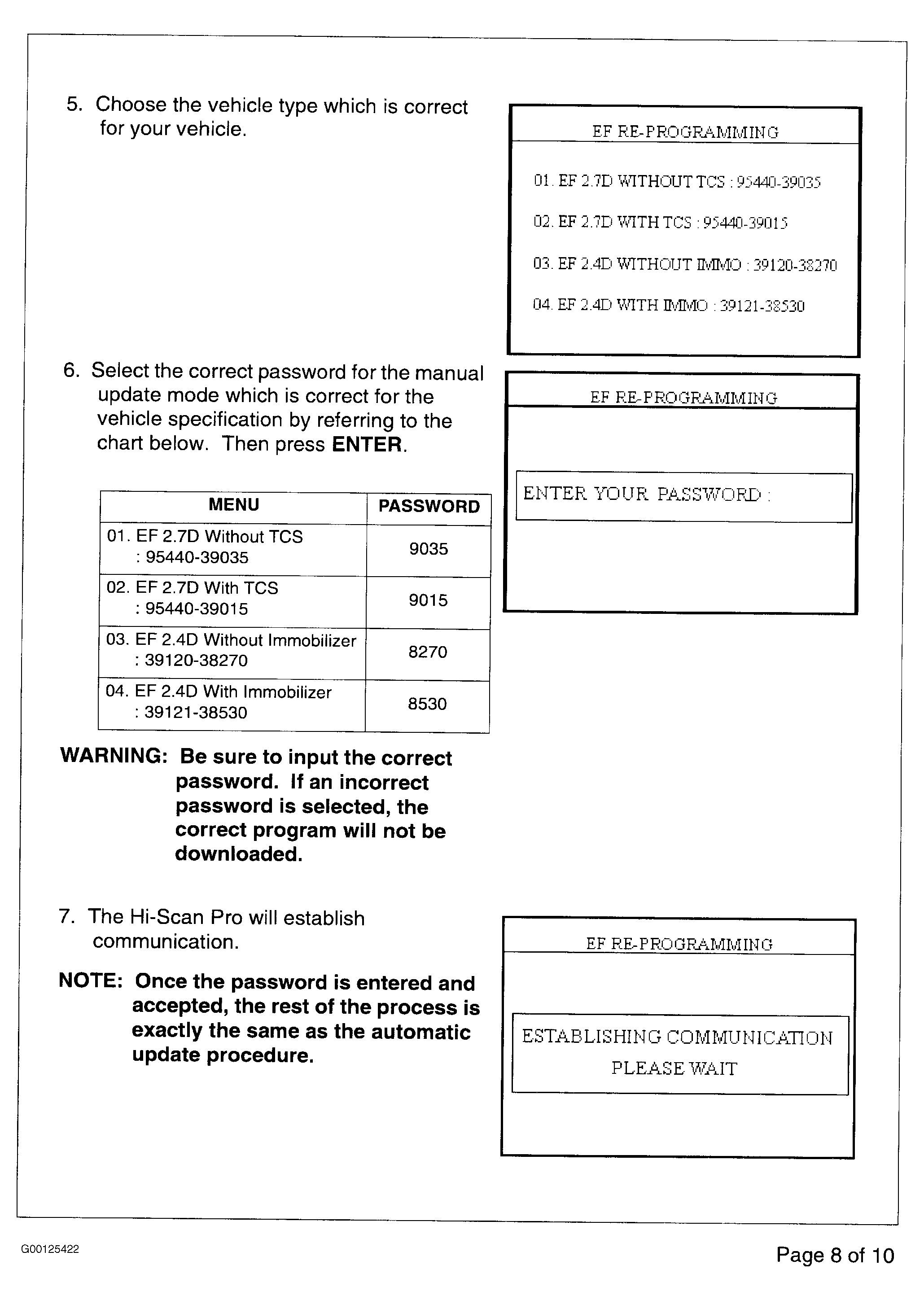

Fig 8: Page 8 of Bulletin

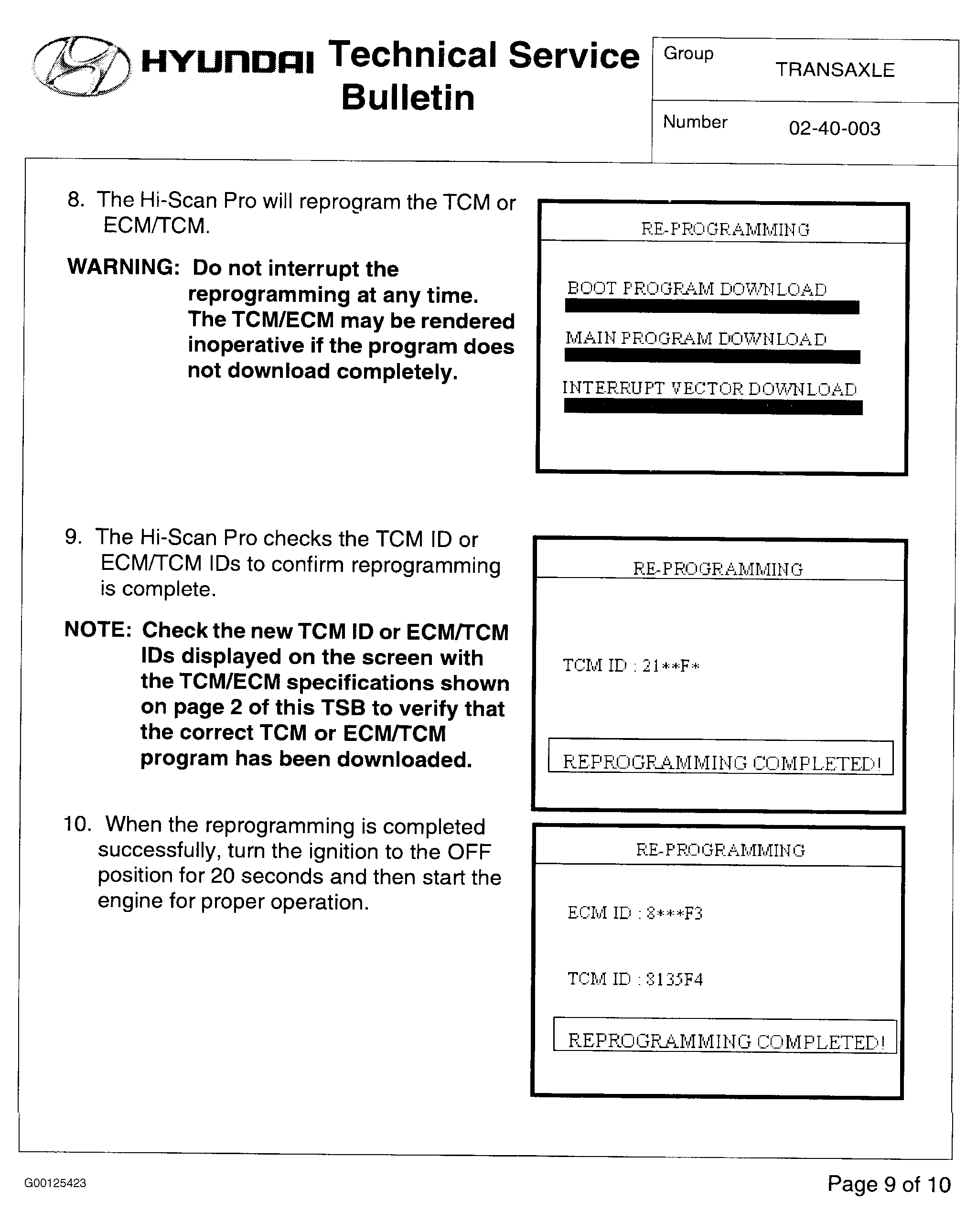

Fig 9: Page 9 of Bulletin

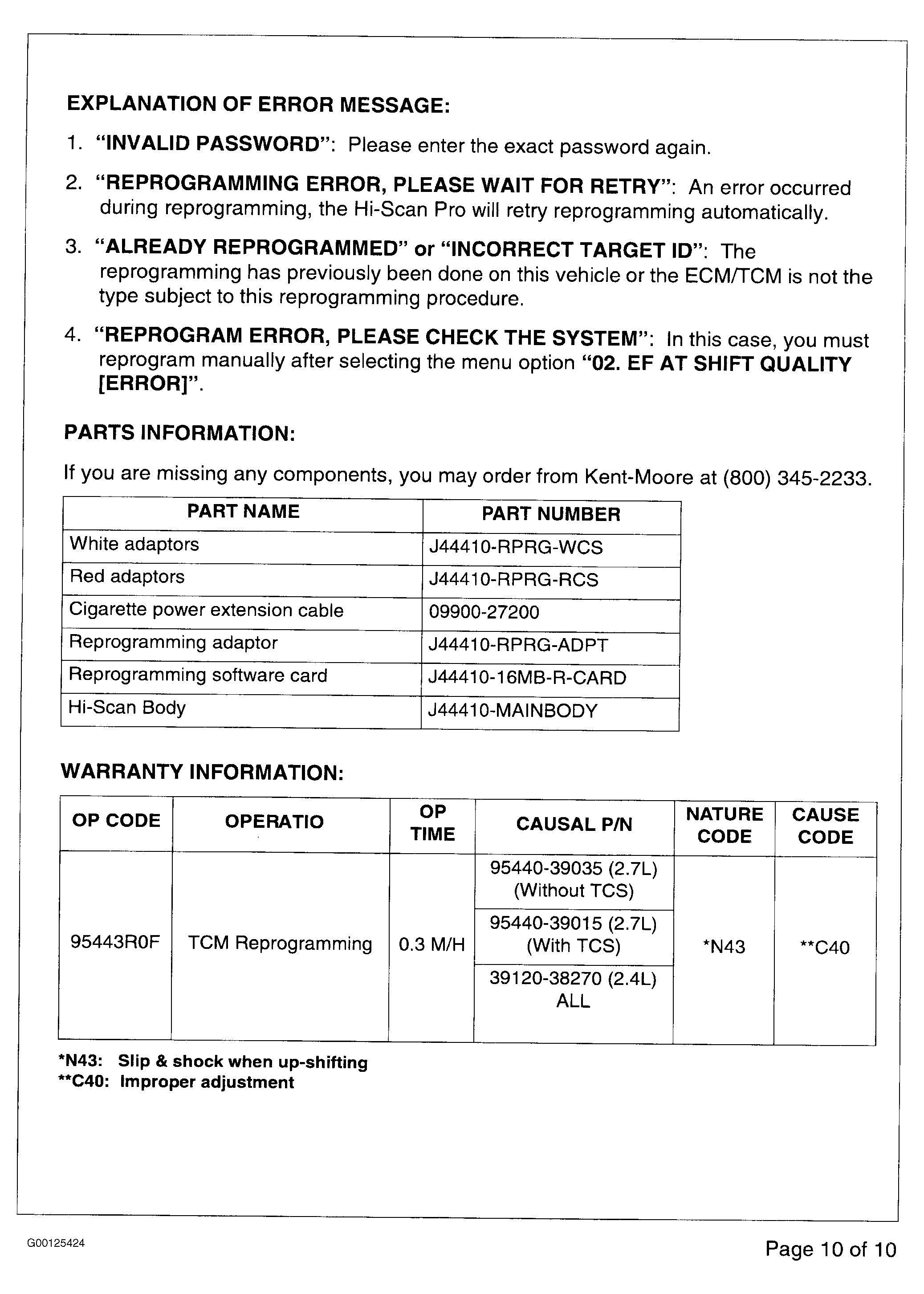

Fig 10: Page 10 of Bulletin
