DTC P0710: Oil Temperature Sensor System
DTC P0710: Oil Temperature Sensor System

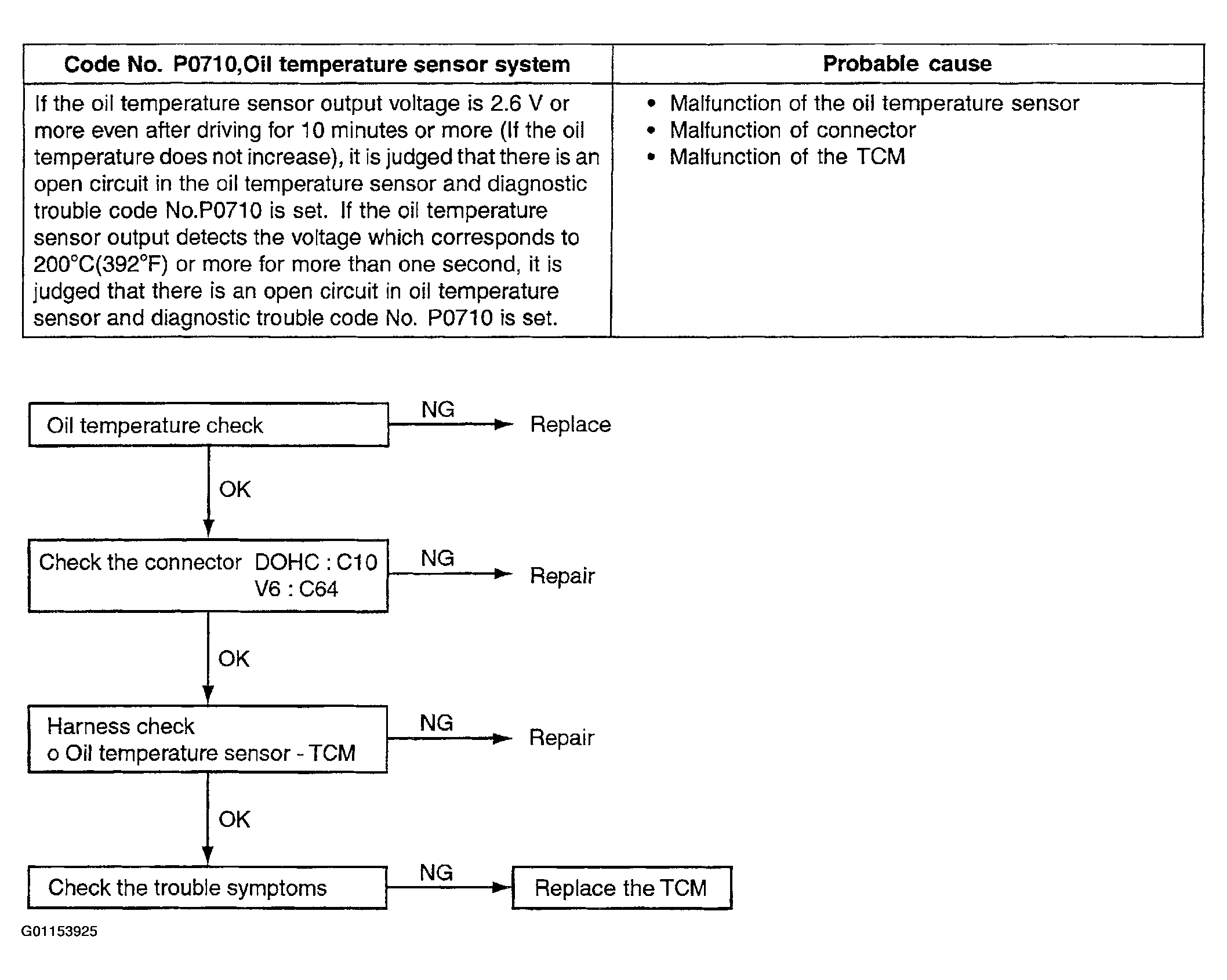

Fig 1: DTC P0710 Probable Causes & Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.

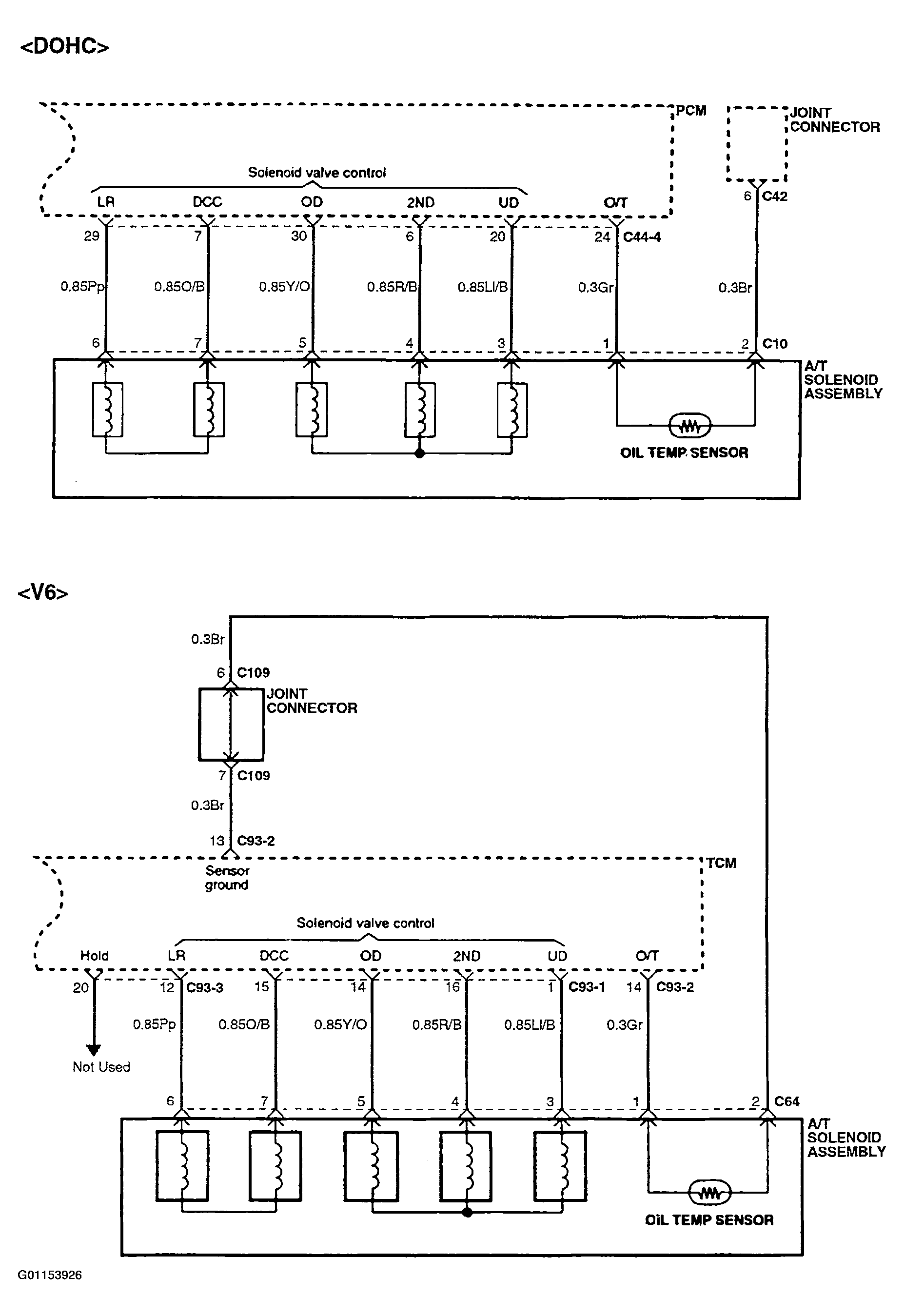

Fig 2: Oil Temperature Sensor Circuit
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
