DTC P1702-P1704: Throttle Position Sensor System

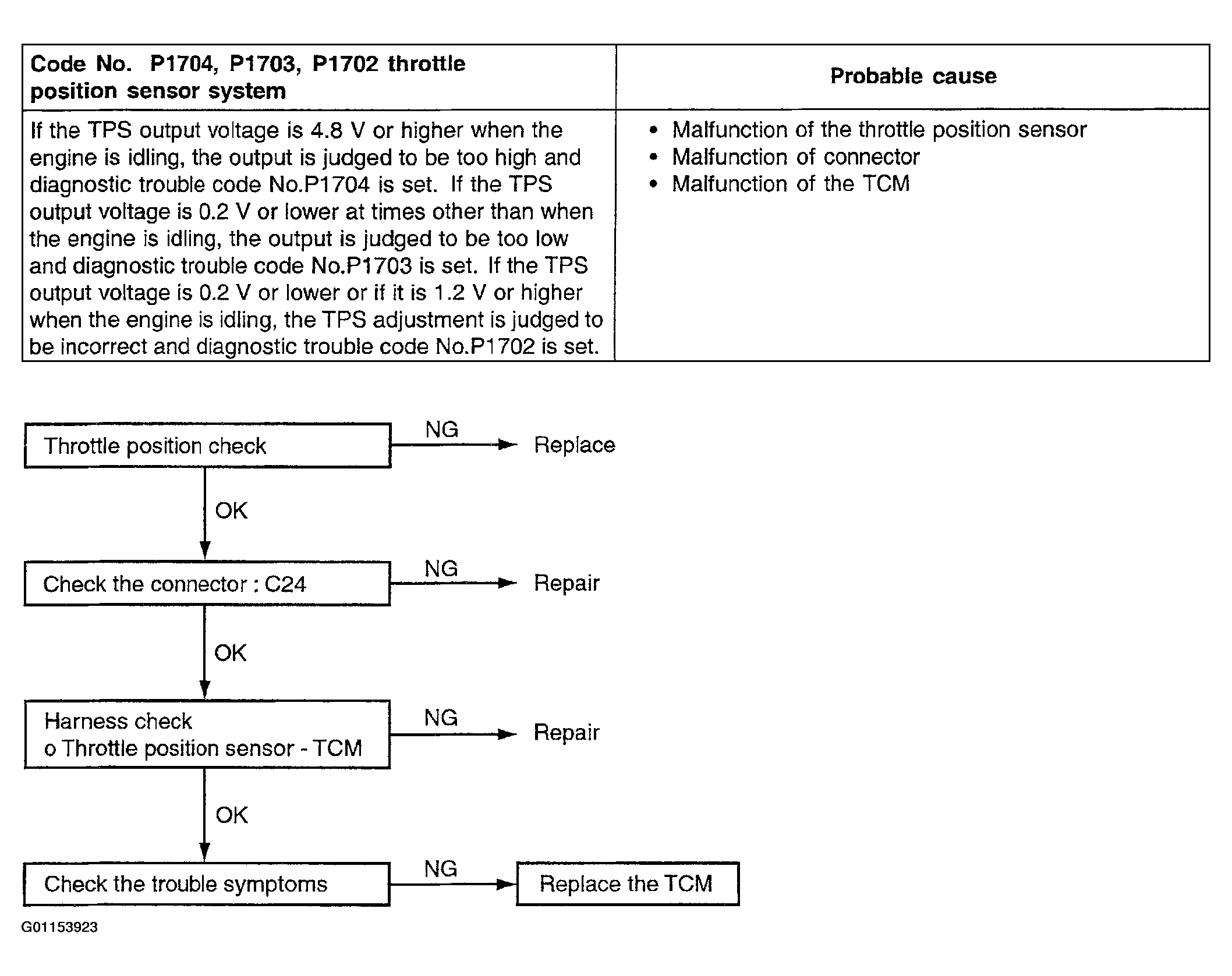

Fig 1: DTC P1702-P1704 Probable Causes & Diagnostic Flow Chart

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Throttle Position Sensor Circuit

Courtesy of HYUNDAI MOTOR CO.
