Multifunction Switch Assembly Connector End Views

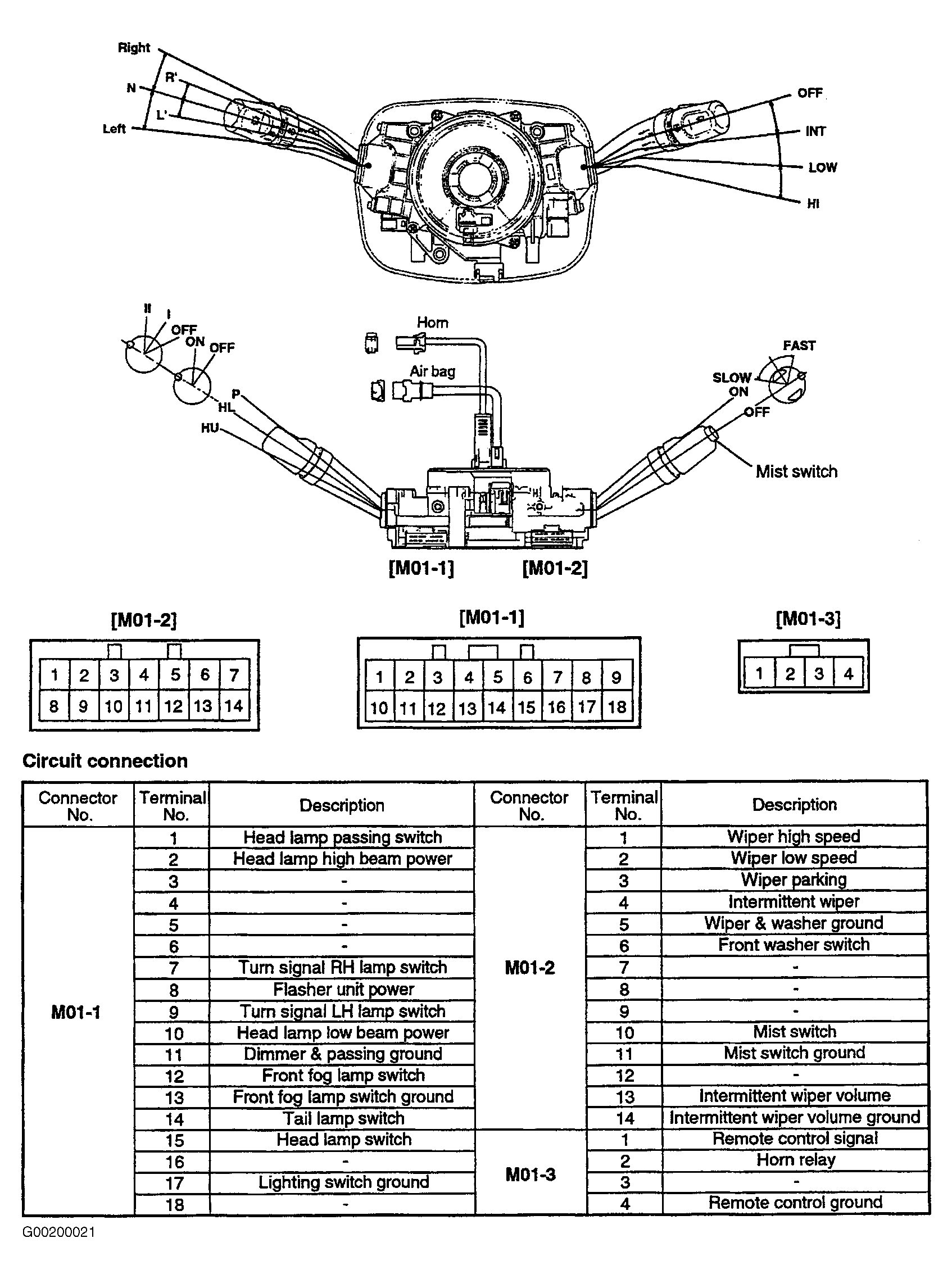

Fig 1: Multifunction Switch Assembly Connector End Views
G00200021Courtesy of HYUNDAI MOTOR AMERICA
