Cooling System: Radiator: Components

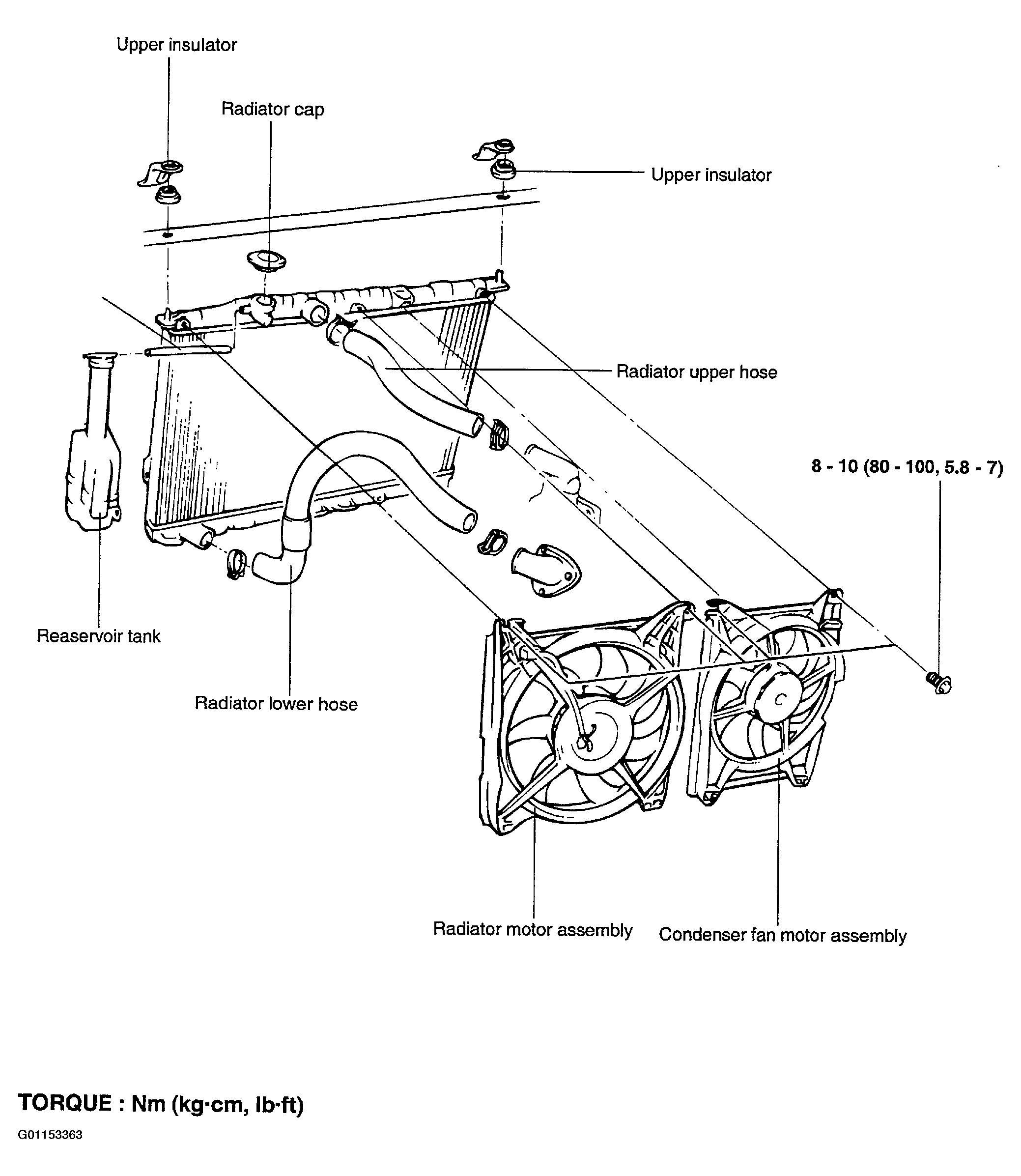

Fig 1: Identifying Radiator Components
G01153363Courtesy of HYUNDAI MOTOR CO.
