Low-Reverse Brake End Play Adjustment

Reverse the transmission and install the dial gauge. Move the special tool up and down to measure the end play.

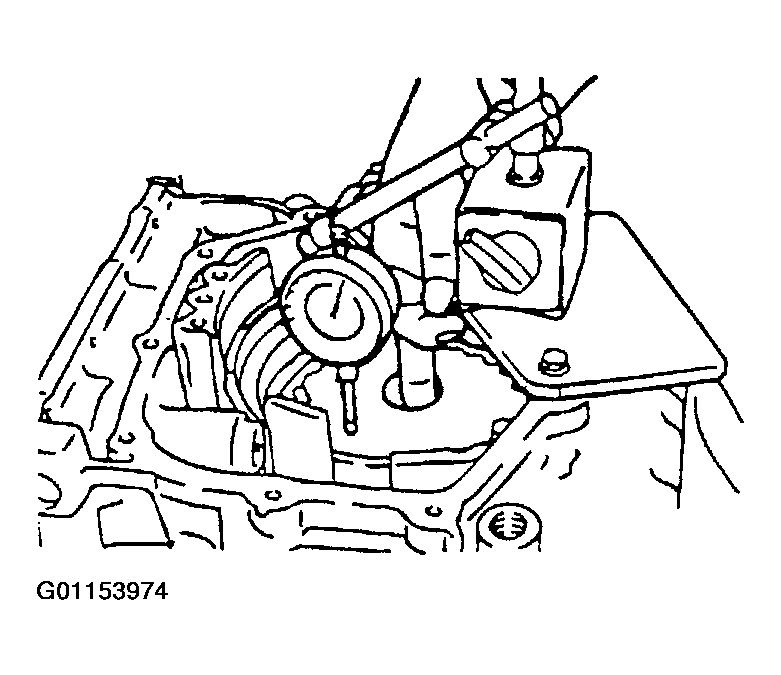

Fig 1: Measuring Low-Reverse Brake End Play

Courtesy of HYUNDAI MOTOR CO.

1. Standard value: 1.35 - 1.81mm

Reference Select a pressure plate whose thickness is within the following value. [A (moving amount) + thickness of the special tool - 1.81] to [A (moving amount) + thickness of the special tool - 1.35]. Refer to SNAP RING FOR ADJUSTMENT & SPACER (A/T) .
