Automatic Transaxle System
›
Automatic Transaxle System
›
Inspection Procedure For Trouble Symptoms
›
Inspection Procedure 8
Inspection Procedure 8

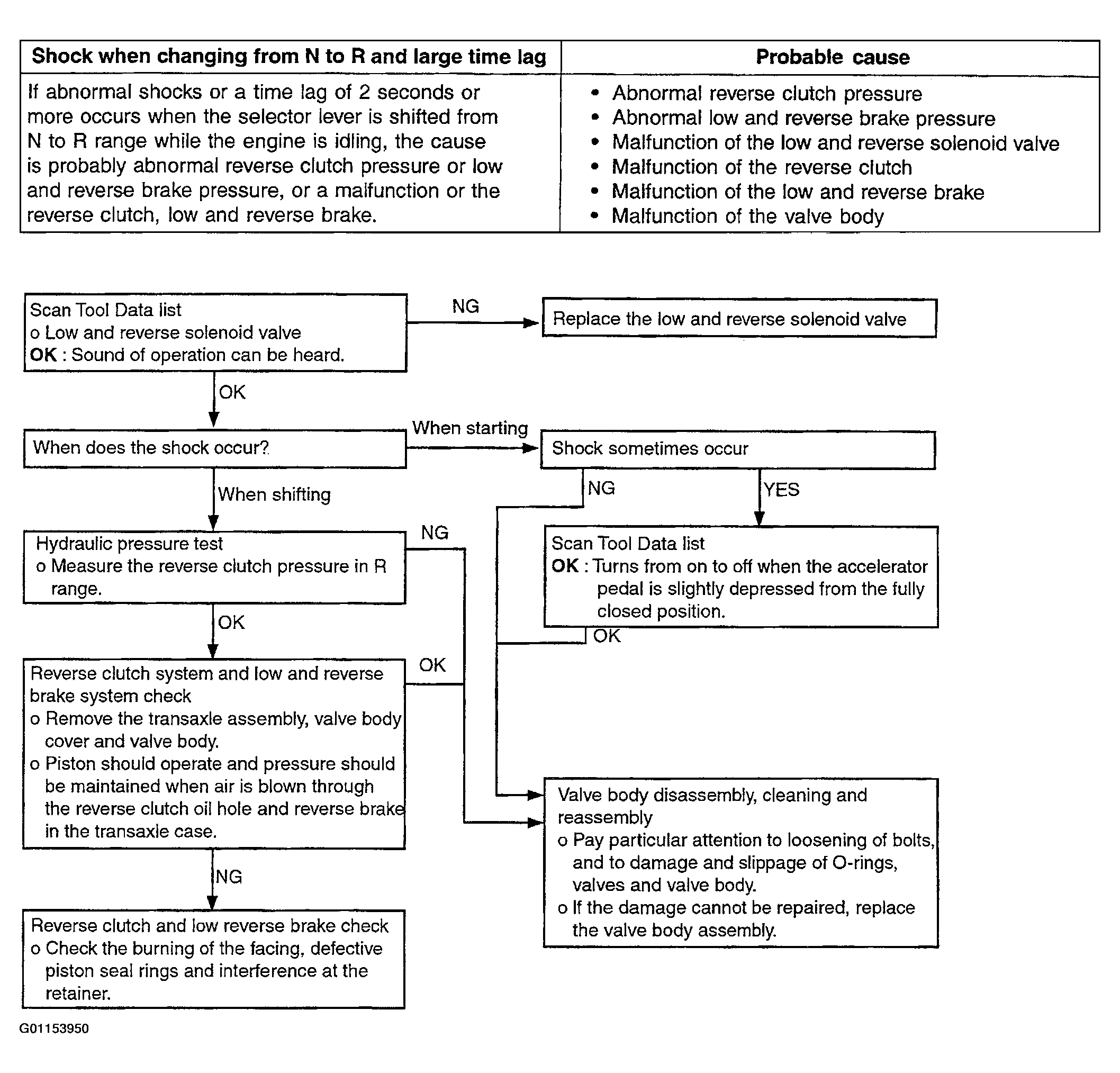

Fig 1: Shocks When Changing From Neutral-To-Reverse & Large Time Lag, Possible Causes Table & Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
