Chart 4

  1. RADIO

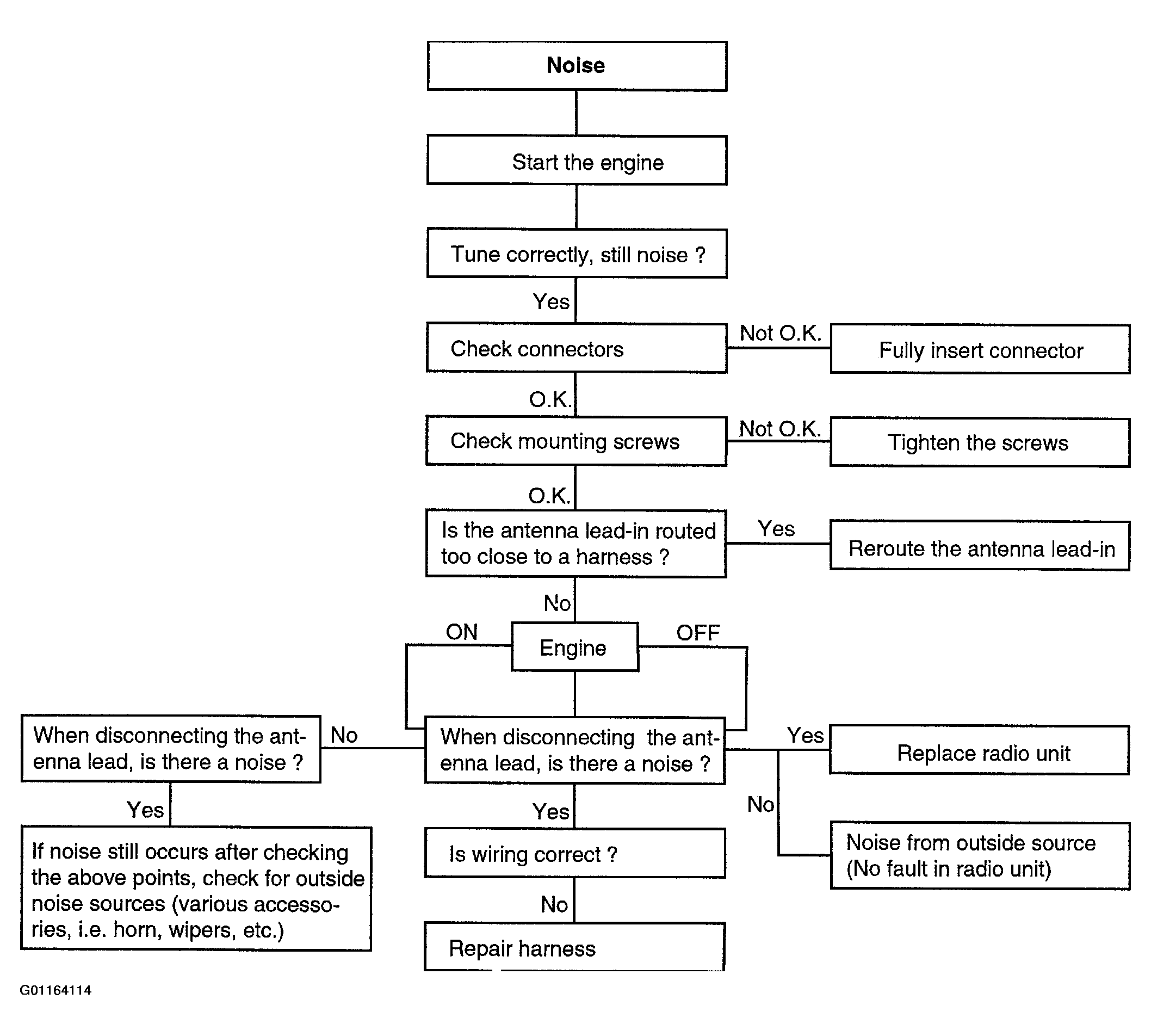

    Fig 1: Troubleshooting Flow Chart - Radio Noise
    G01164114Courtesy of HYUNDAI MOTOR CO.
  2. 2. TAPE

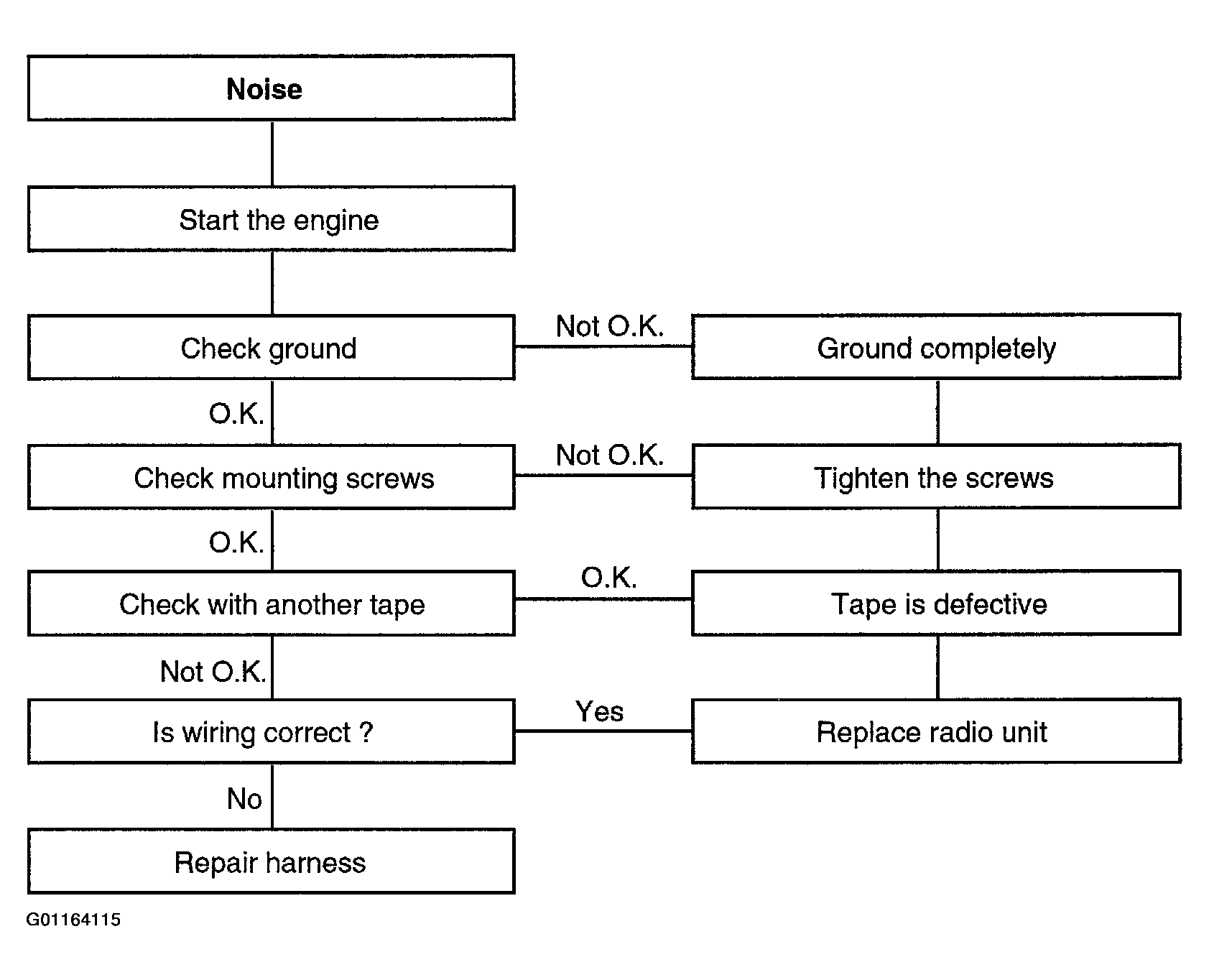

    Fig 2: Troubleshooting Flow Chart - Tape Noise
    G01164115Courtesy of HYUNDAI MOTOR CO.
