Instruments And Warning System

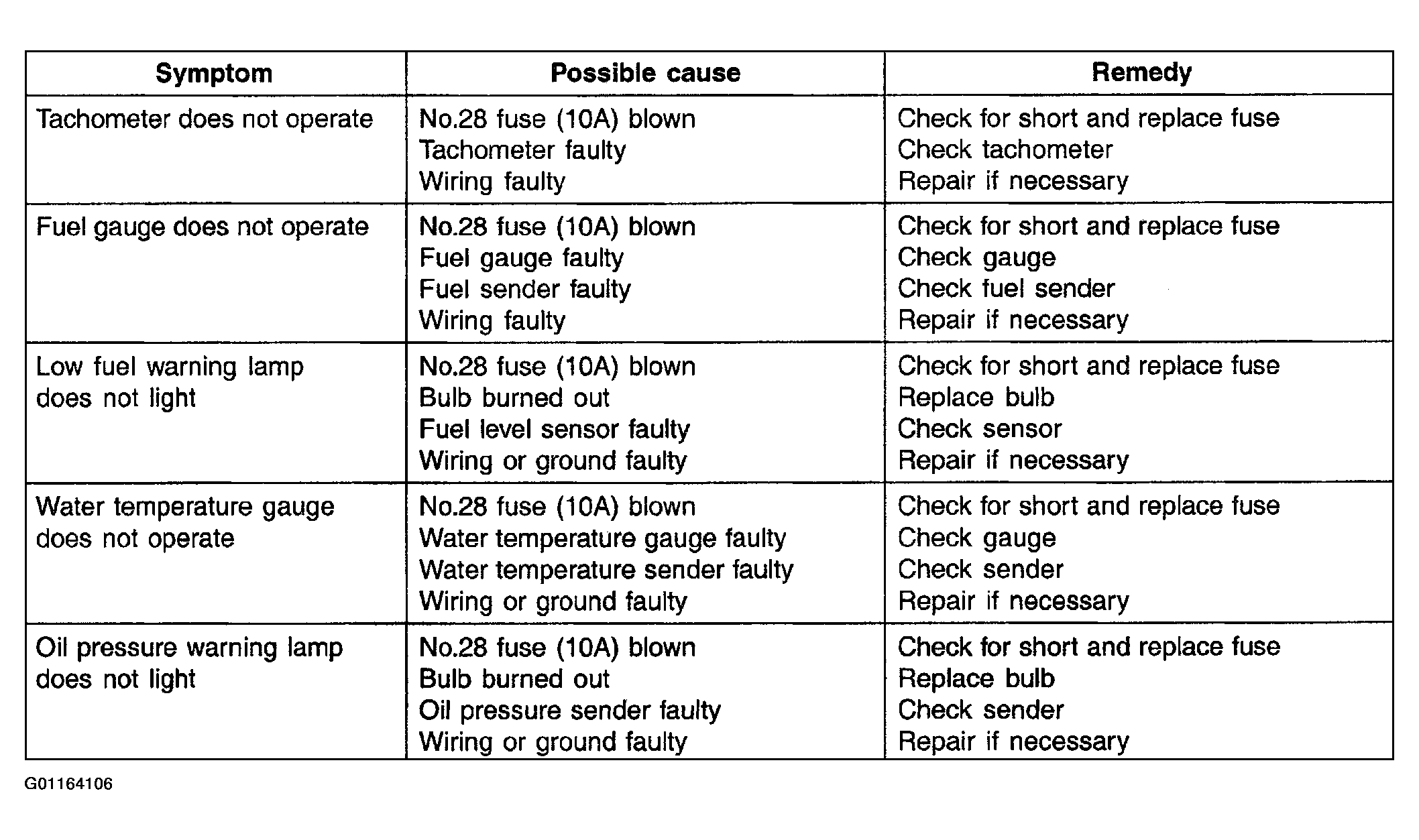

Fig 1: Instruments & Warning System Troubleshooting Chart (1 Of 2)
G01164106Courtesy of HYUNDAI MOTOR CO.

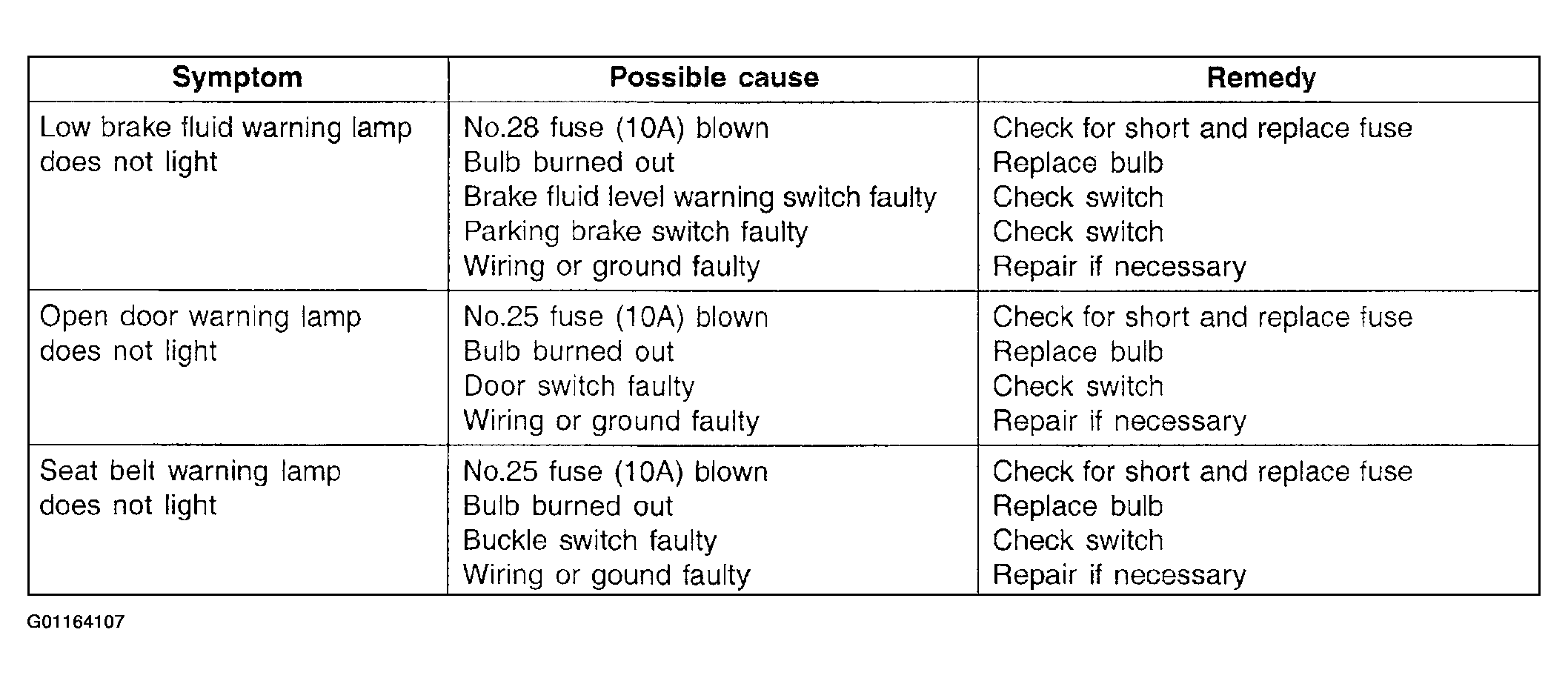

Fig 2: Instruments & Warning System Troubleshooting Chart (2 Of 2)
G01164107Courtesy of HYUNDAI MOTOR CO.
