Automatic Transaxle: Components

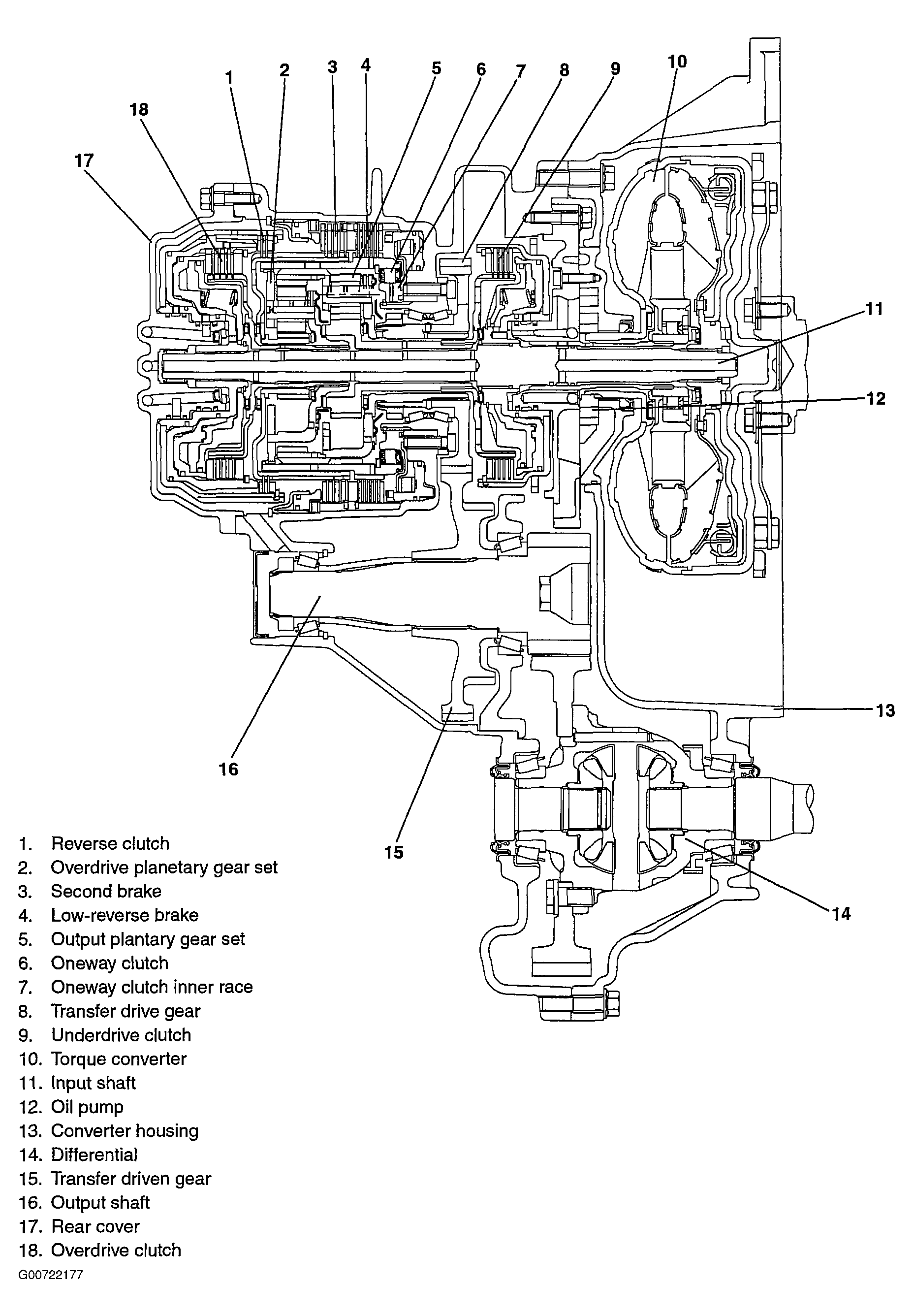

Fig 1: Identifying Automatic Transaxle Components
G00722177Courtesy of HYUNDAI MOTOR CO.
