Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle System
›
Troubleshooting (A/T)
›
Notes
Troubleshooting (A/T): Notes

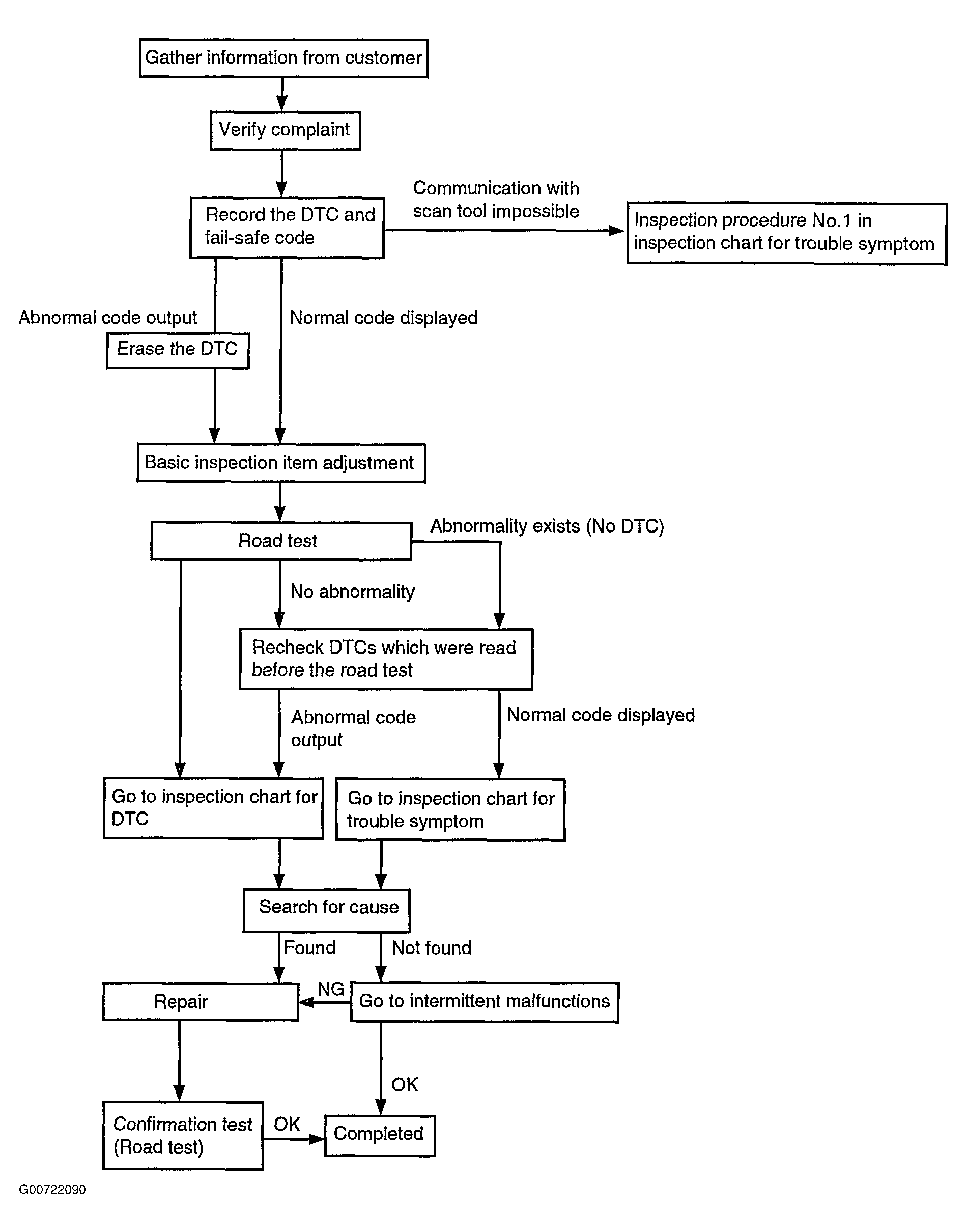

Fig 1: Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
