A/C Compressor Controls (Manual): Compressor: Components: Notes

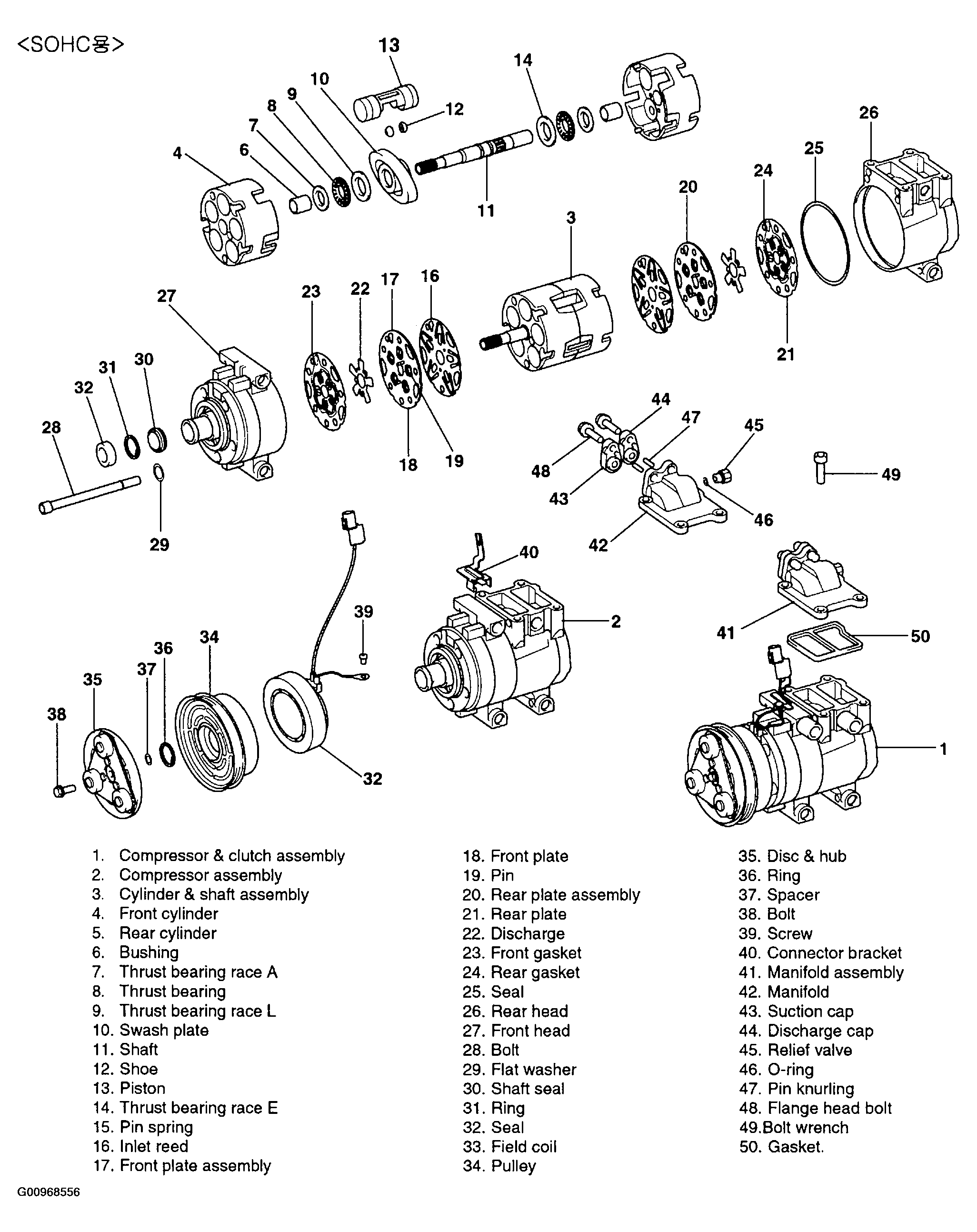

Fig 1: Compressor Components (SOHC)
G00968556Courtesy of HYUNDAI MOTOR CO.

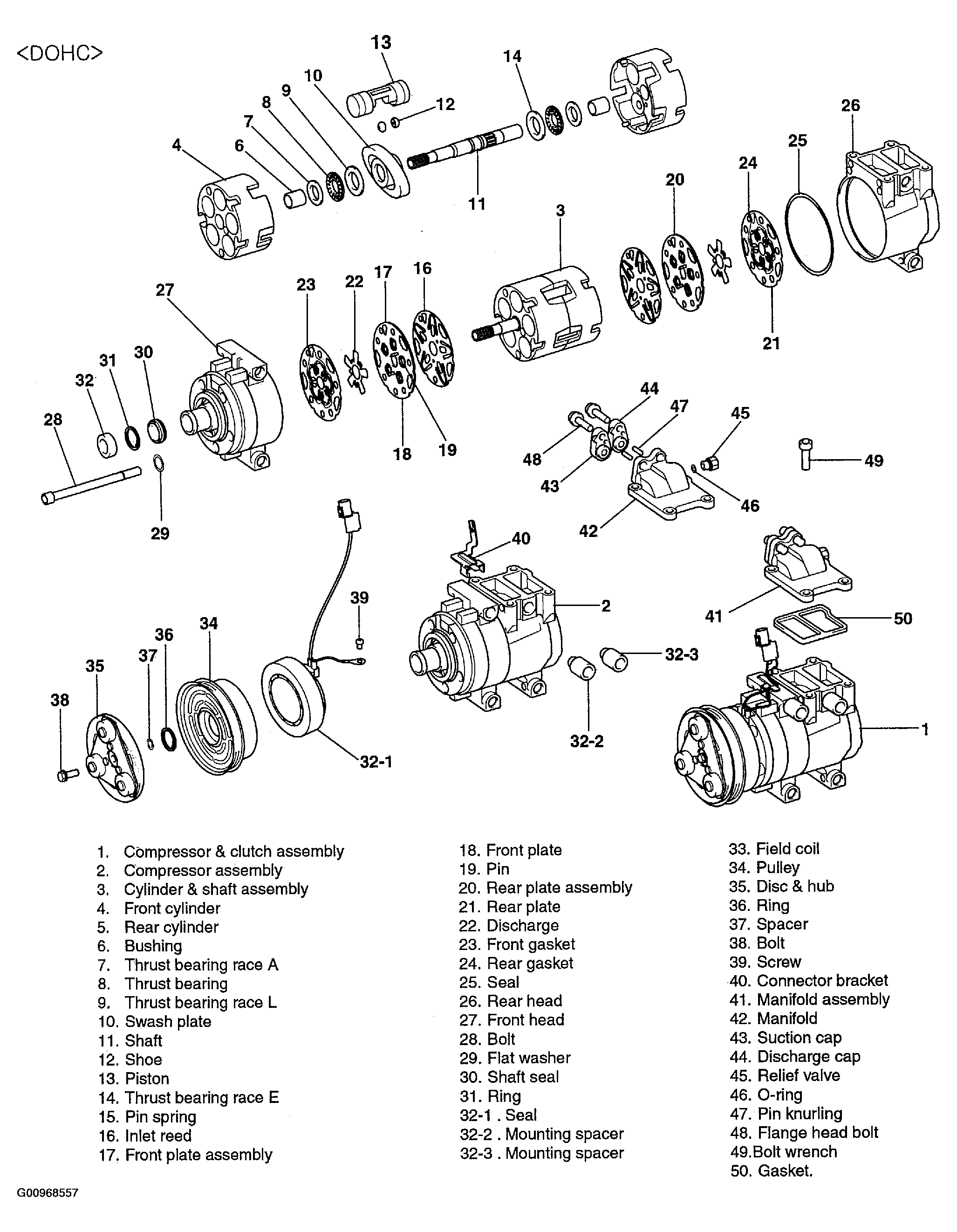

Fig 2: Compressor Components (DOHC)
G00968557Courtesy of HYUNDAI MOTOR CO.
