Manual Transaxle Shift Control: Components

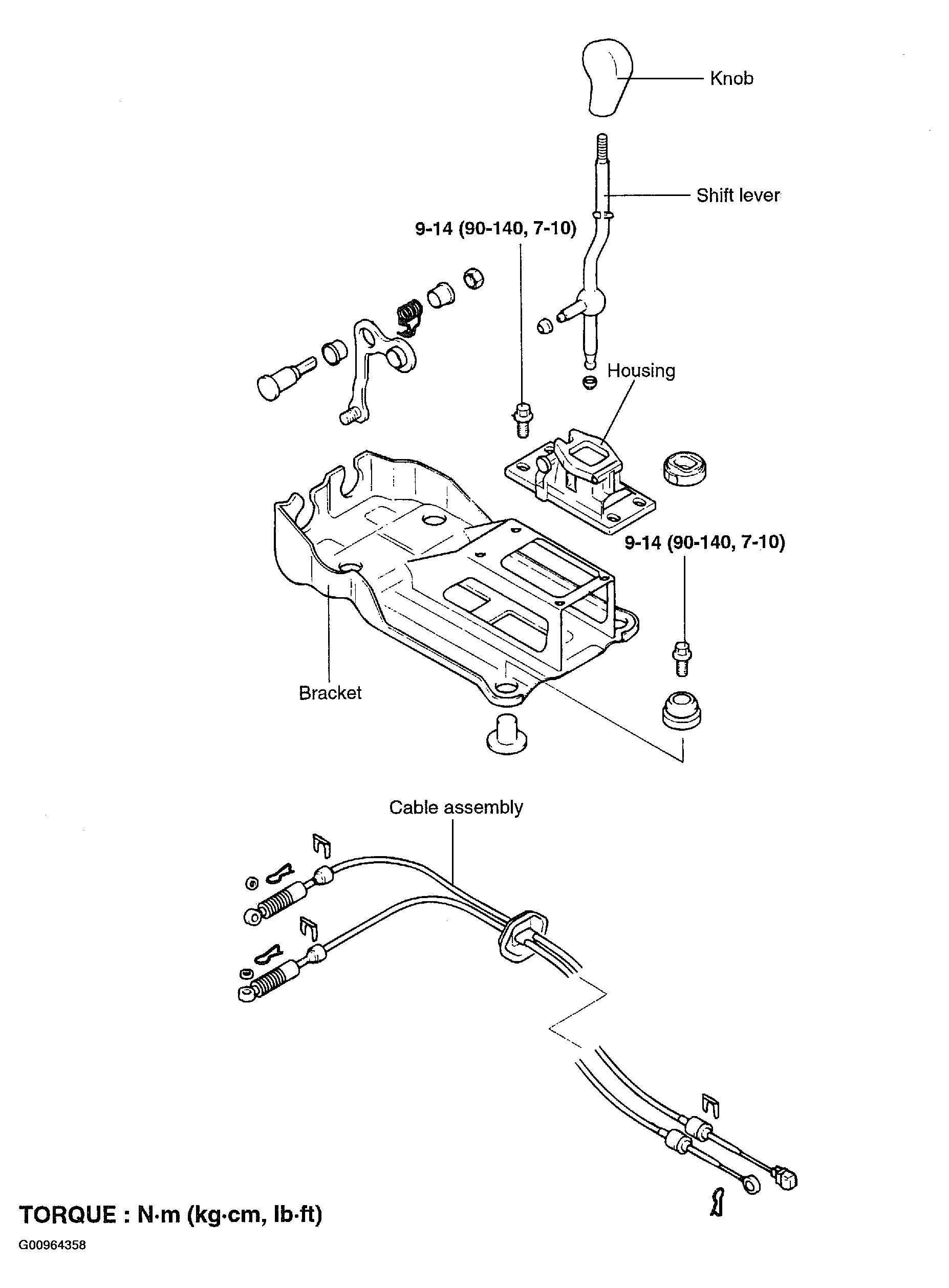

Fig 1: Manual Transaxle Shift Control Components
G00964358Courtesy of HYUNDAI MOTOR CO.
