Inspect Circuits For Daytime Running Light System

1. Disconnect the wire connector to DRL module from engine compartment.
2. Inspect the connector on wire harness side as shown.

Fig 1: Daytime Running Light Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

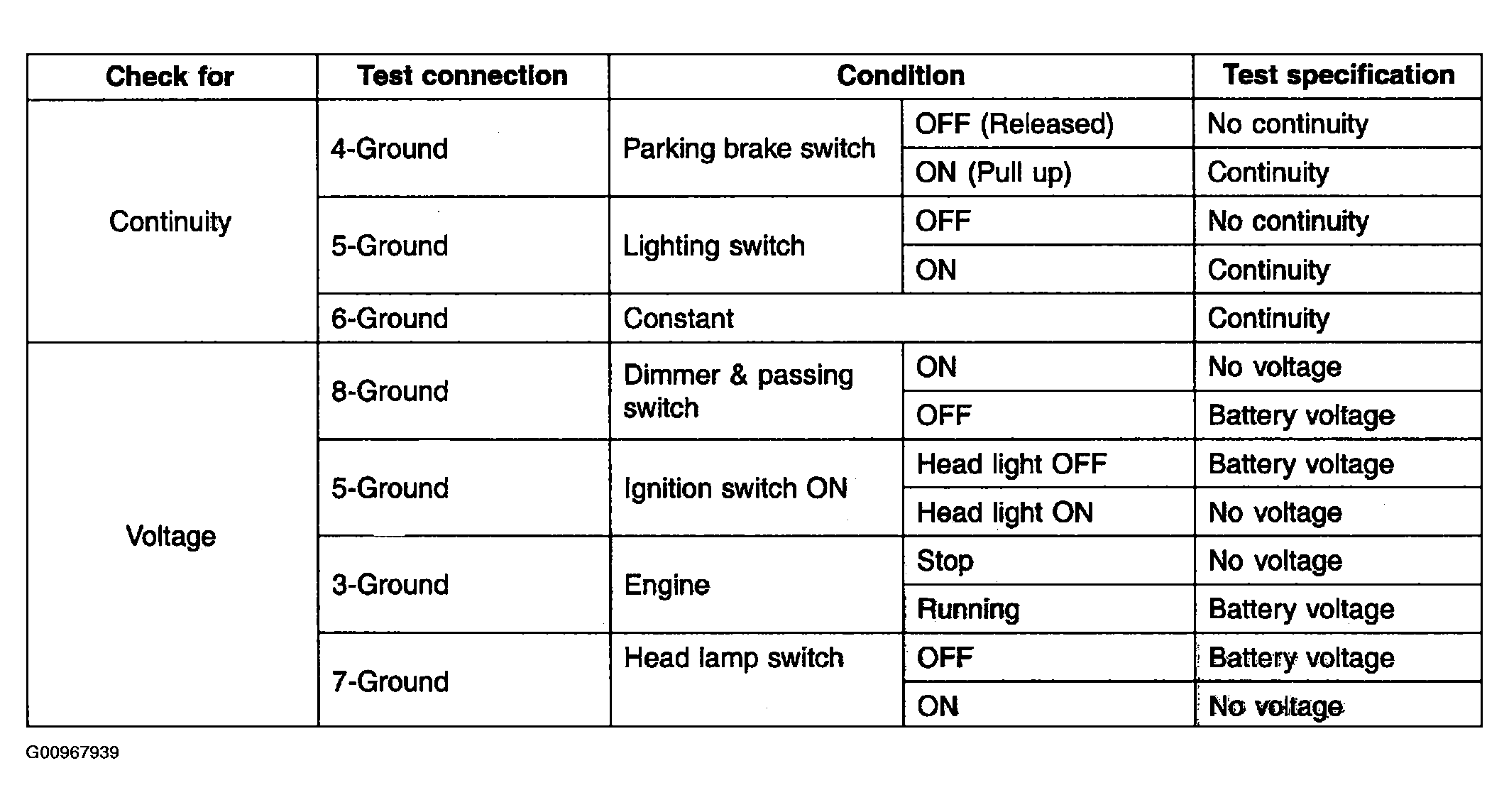

Fig 2: Daytime Running Light Circuit Specifications

Courtesy of HYUNDAI MOTOR CO.

If circuit is not as specified, refer to HEADLIGHTS and inspect for short or open circuits.
