Audio Unit: Components

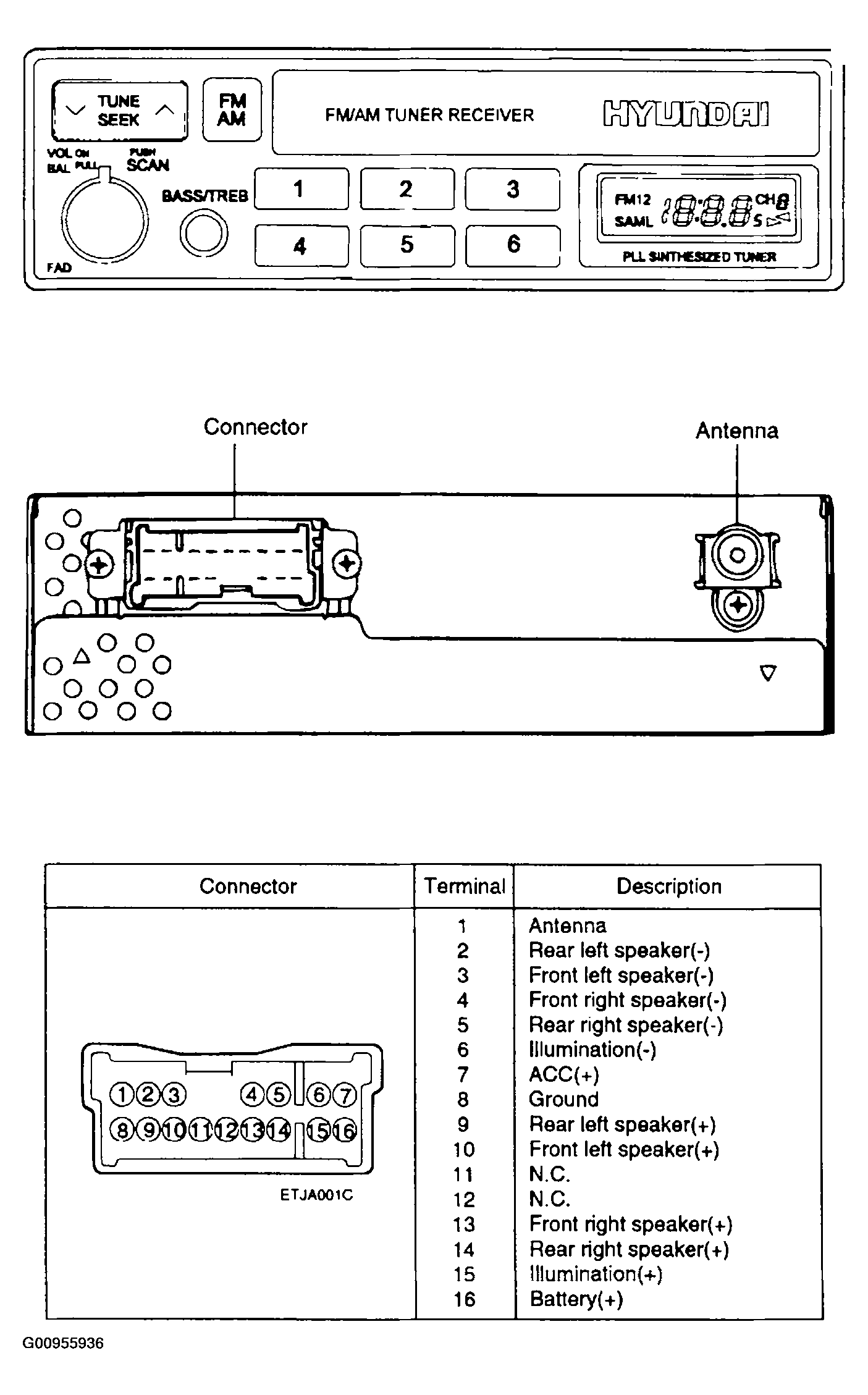

Fig 1: Identifying Audio Unit Control Buttons & Connector Terminals H210
G00955936Courtesy of HYUNDAI MOTOR CO.

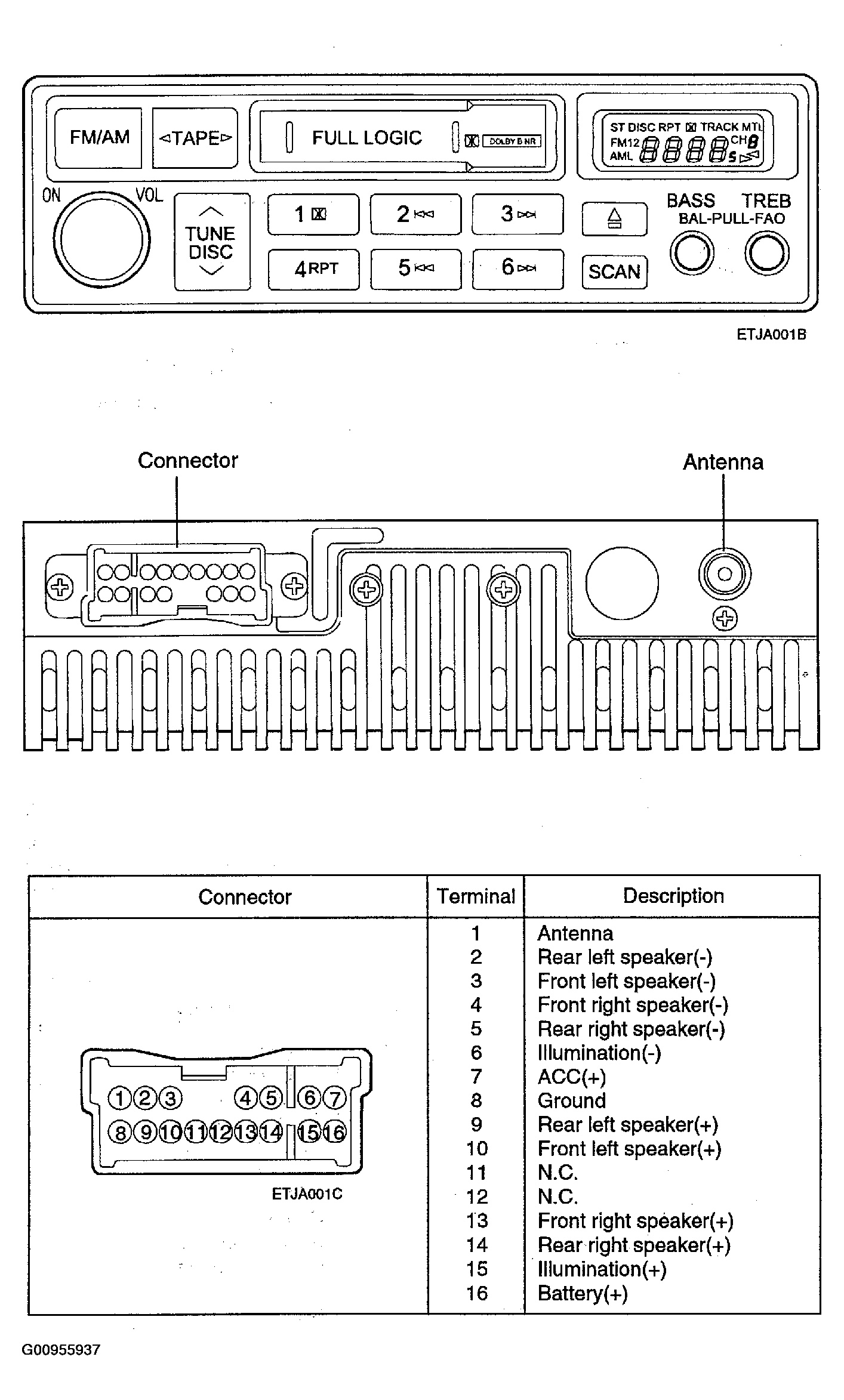

Fig 2: Identifying Audio Unit Control Buttons & Connector Terminals H240
G00955937Courtesy of HYUNDAI MOTOR CO.

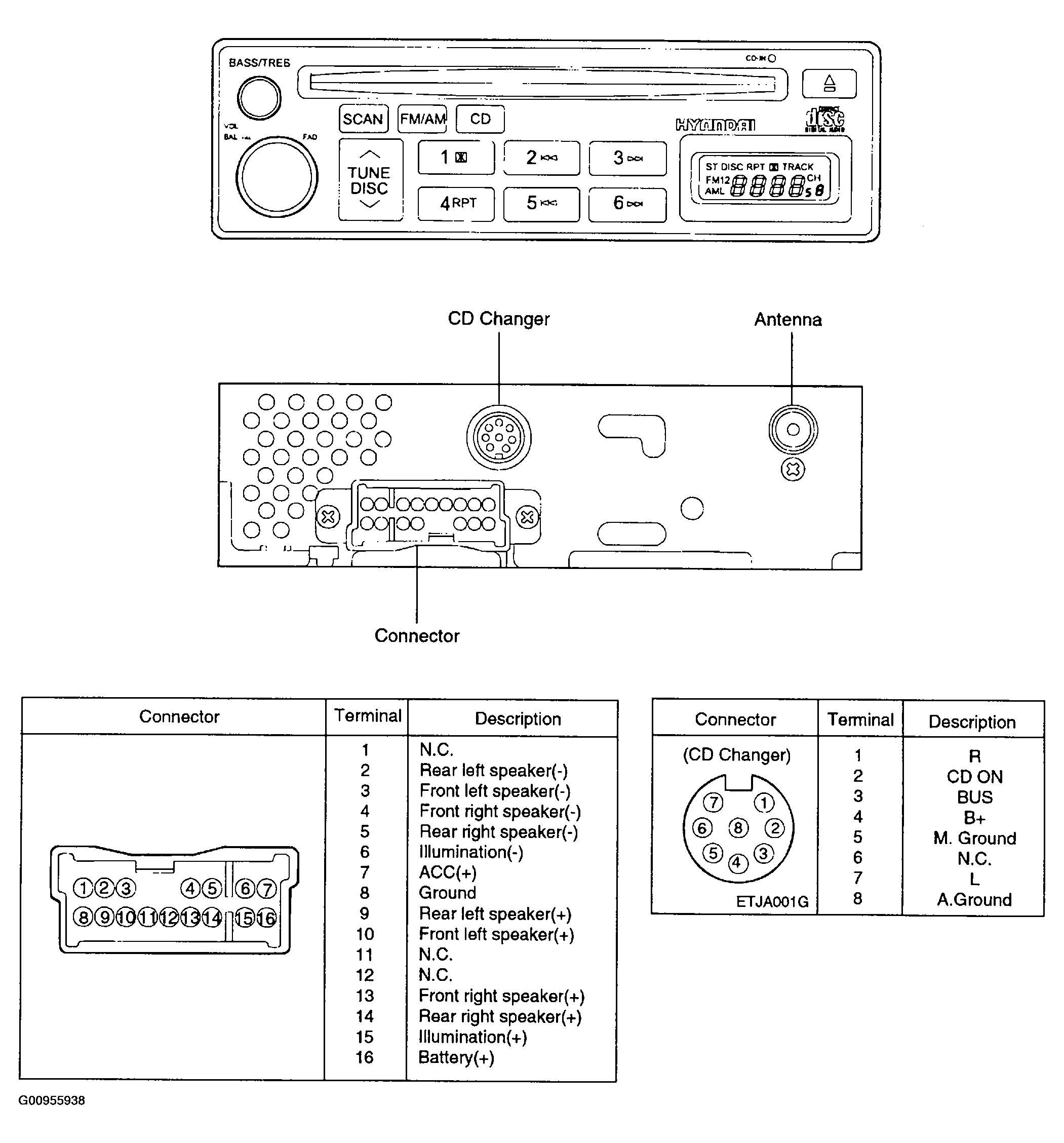

Fig 3: Identifying Audio Unit Control Buttons & Connector Terminals H260
G00955938Courtesy of HYUNDAI MOTOR CO.
