Removal And Installation

  1. Remove the rear console mounting screws, and then pull out the rear console.

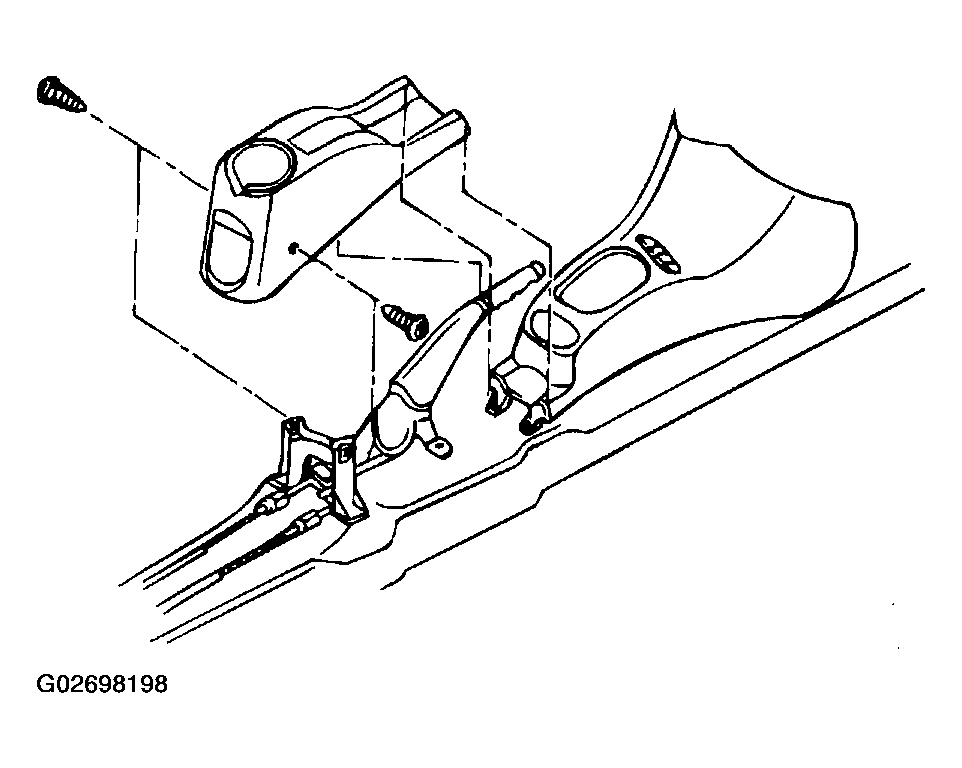

    Fig 1: Removing Rear Console
    G02698198Courtesy of HYUNDAI MOTOR CO.
  2. Remove the transaxle control lever.
  3. Remove the front console assembly and then disconnect the connectors.
    Fig 2: Removing Front Console
    G02698199Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
