HECU Terminals Inspection
Fig 1: Identifying HECU Terminals
Courtesy of HYUNDAI MOTOR CO.

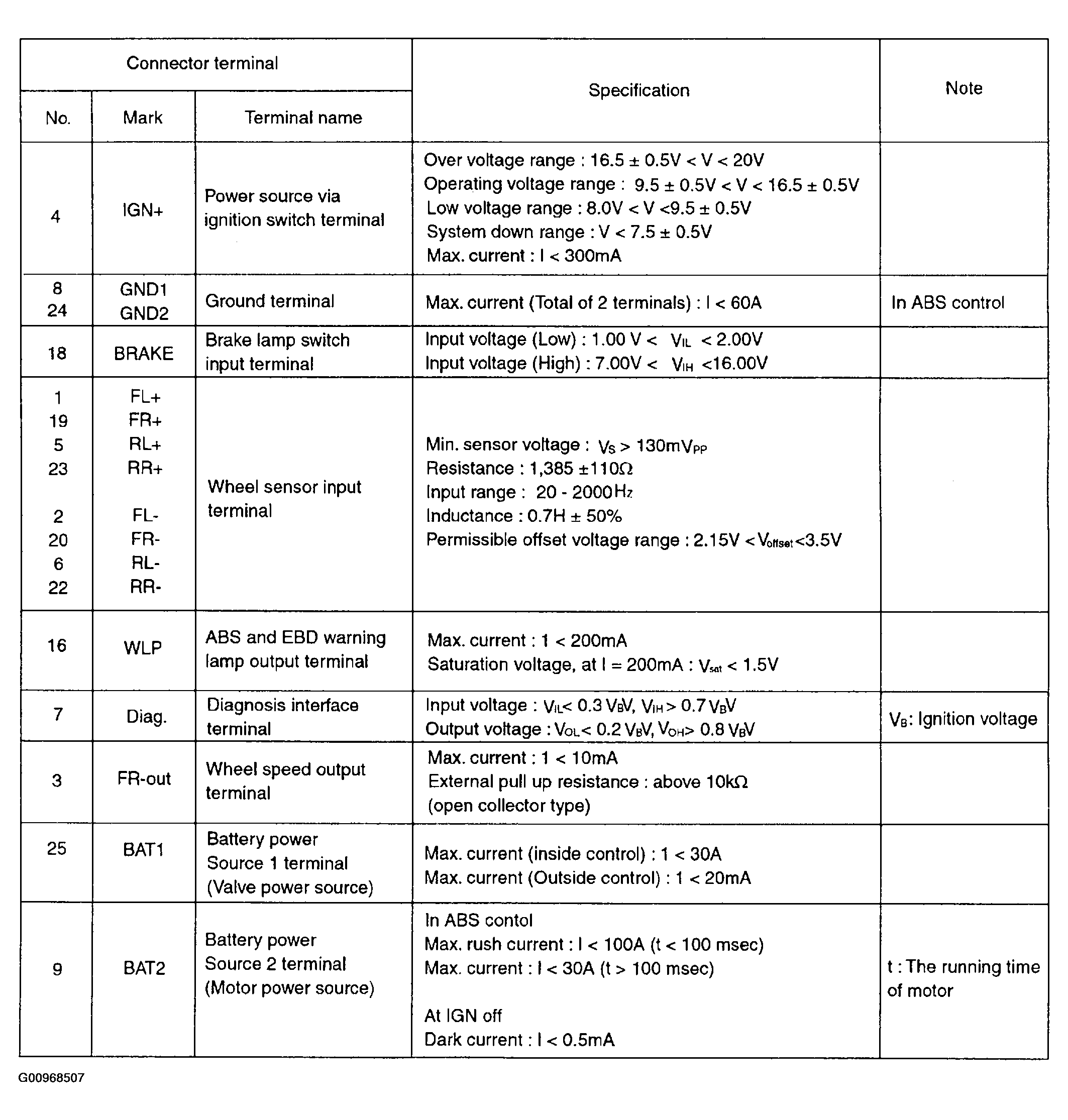

Fig 2: Identifying HECU Terminals & Specifications
Courtesy of HYUNDAI MOTOR CO.
