Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt.

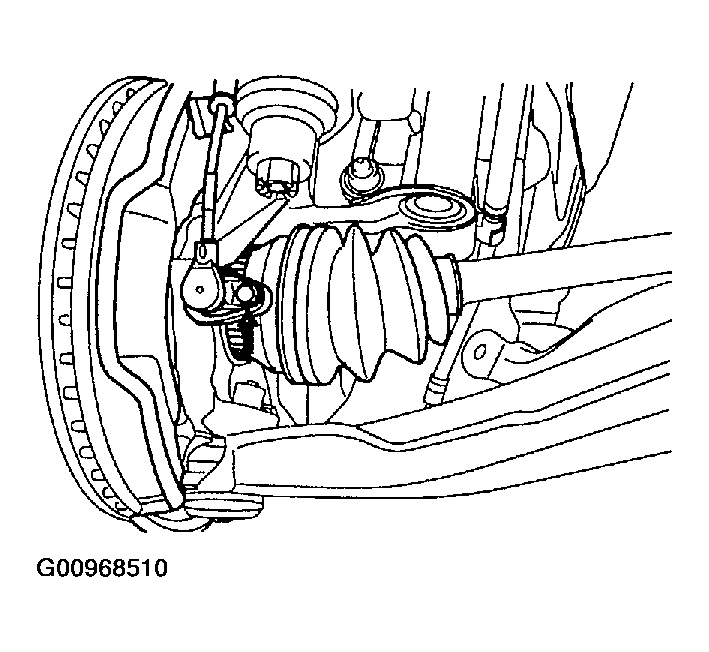

    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G00968510Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel guard.

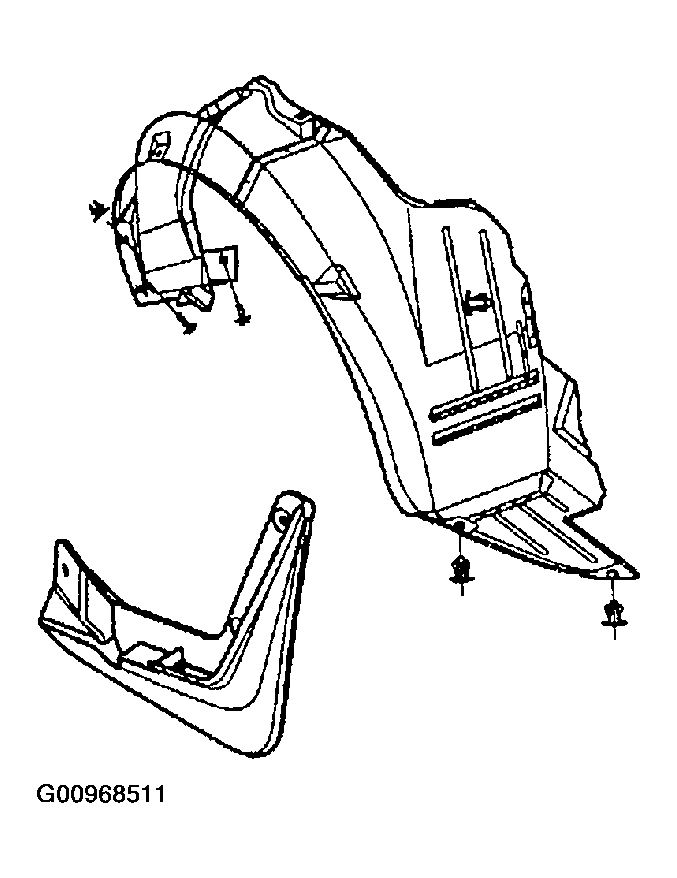

    Fig 2: Identifying Front Wheel Guard
    G00968511Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

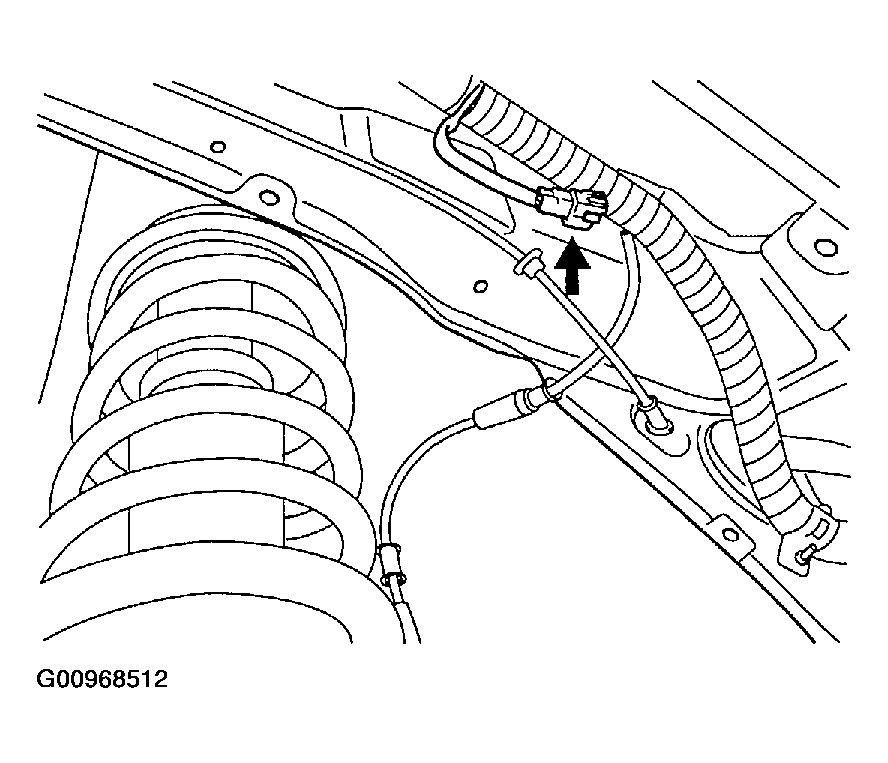

    Fig 3: Identifying Wheel Speed Sensor Connector
    G00968512Courtesy of HYUNDAI MOTOR CO.
