A/C-Heater Control Panel Connector End Views

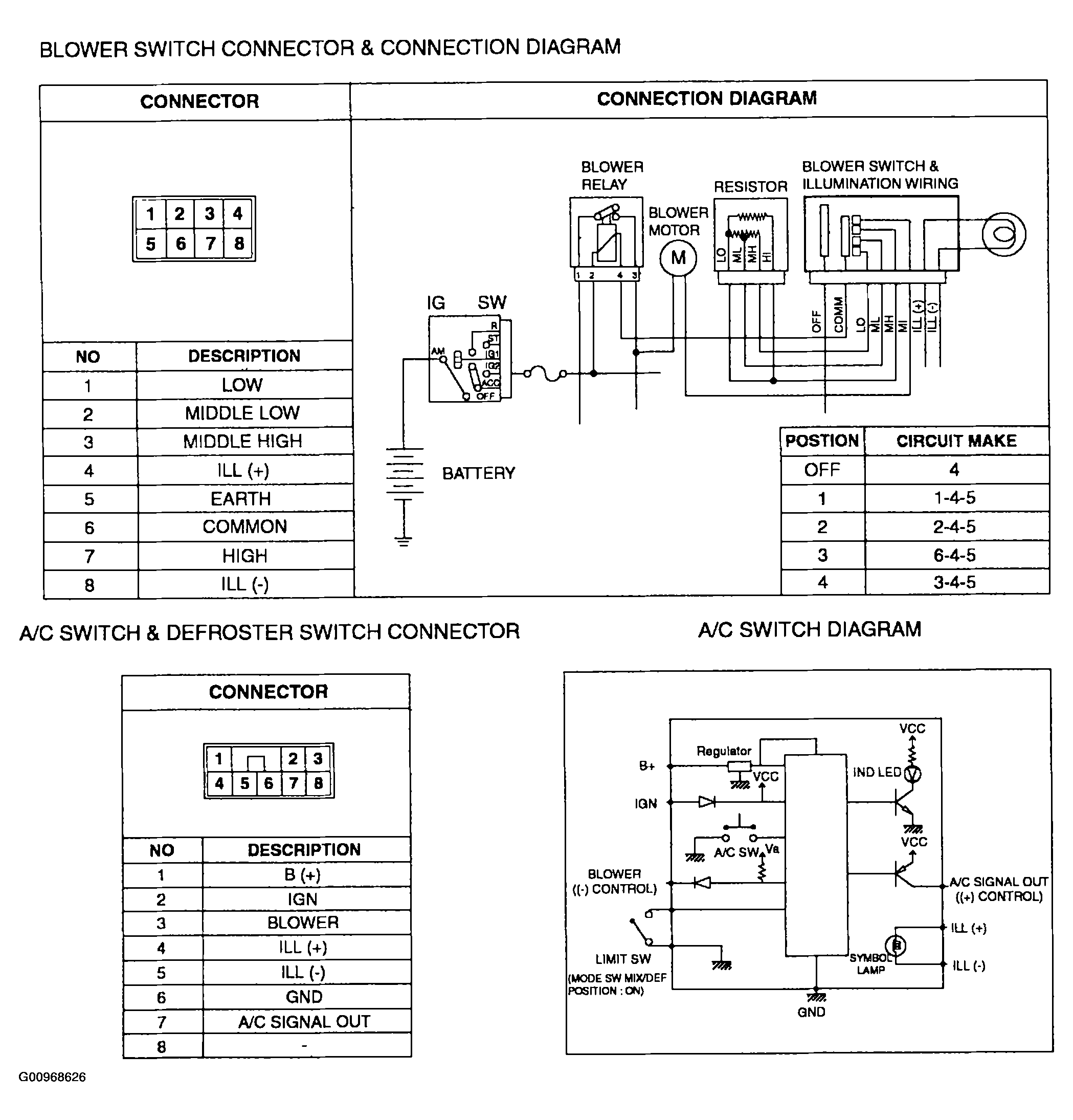

Fig 1: A/C-Heater Control Panel Connector End Views
G00968626Courtesy of HYUNDAI MOTOR AMERICA
