Engine Coolant Pump: Components

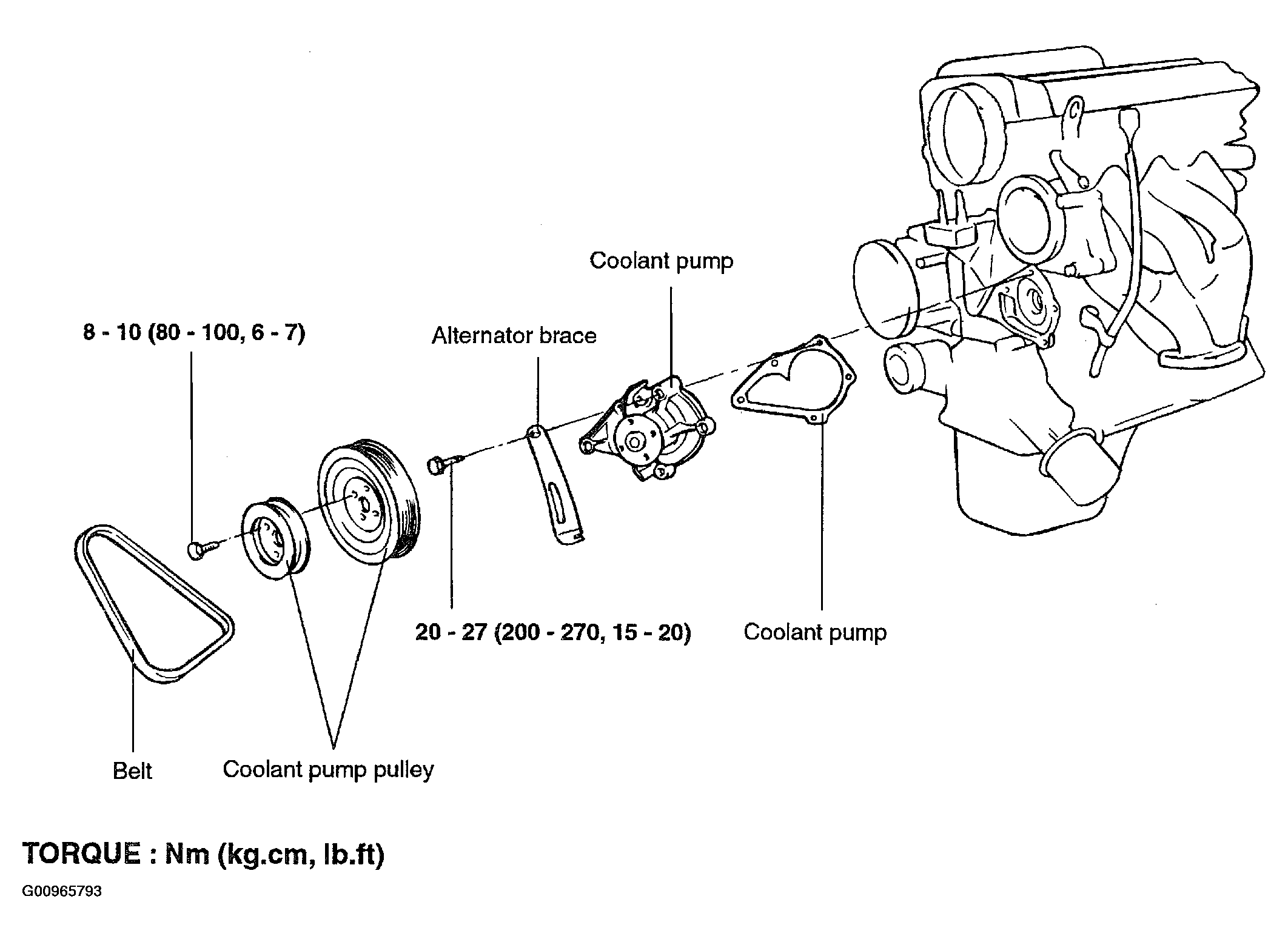

Fig 1: Engine Coolant Pump Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
