Cooling System: Thermostat: Components

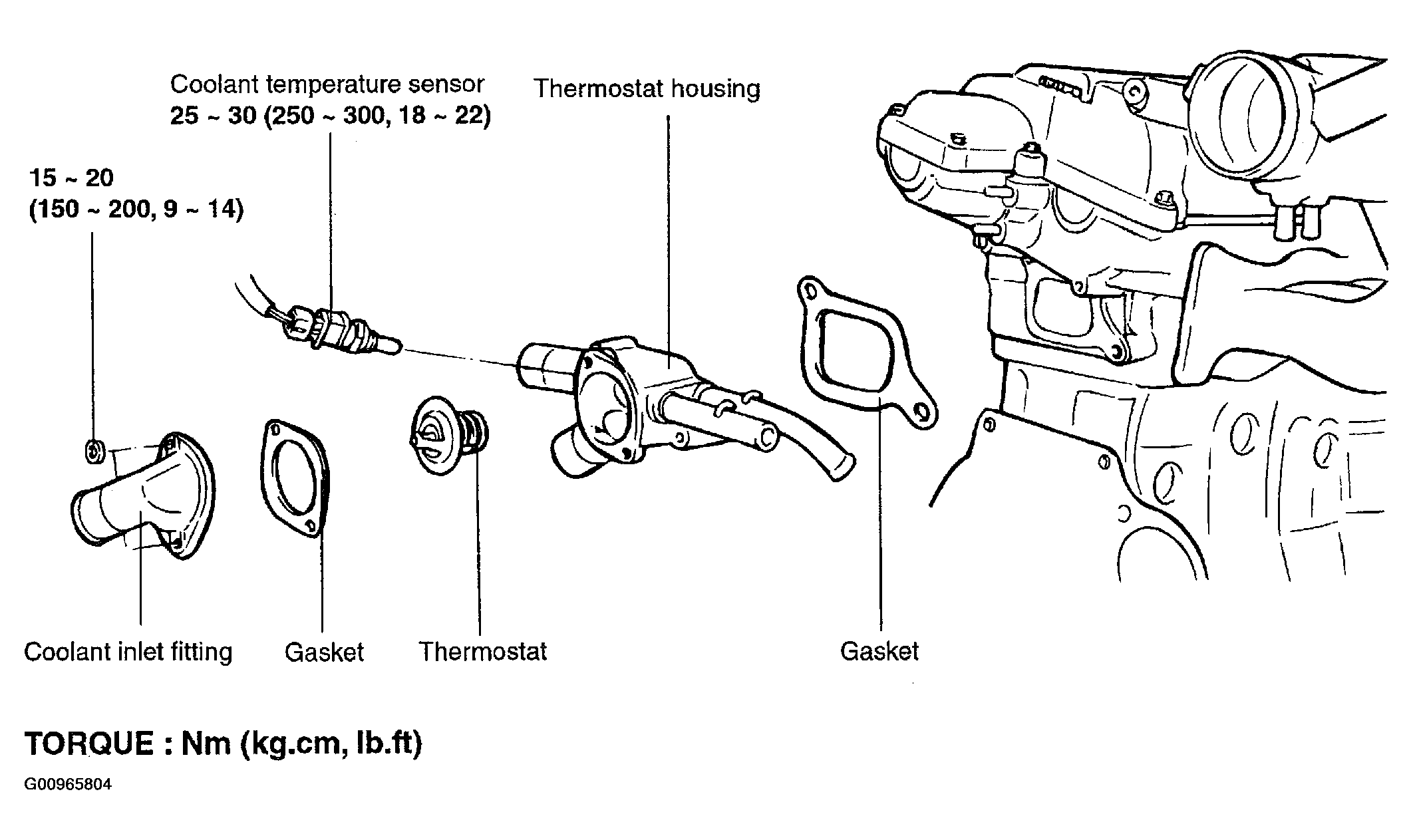

Fig 1: Thermostat Components
G00965804Courtesy of HYUNDAI MOTOR CO.
