Transmission Mounting

  1. Remove the air cleaner.

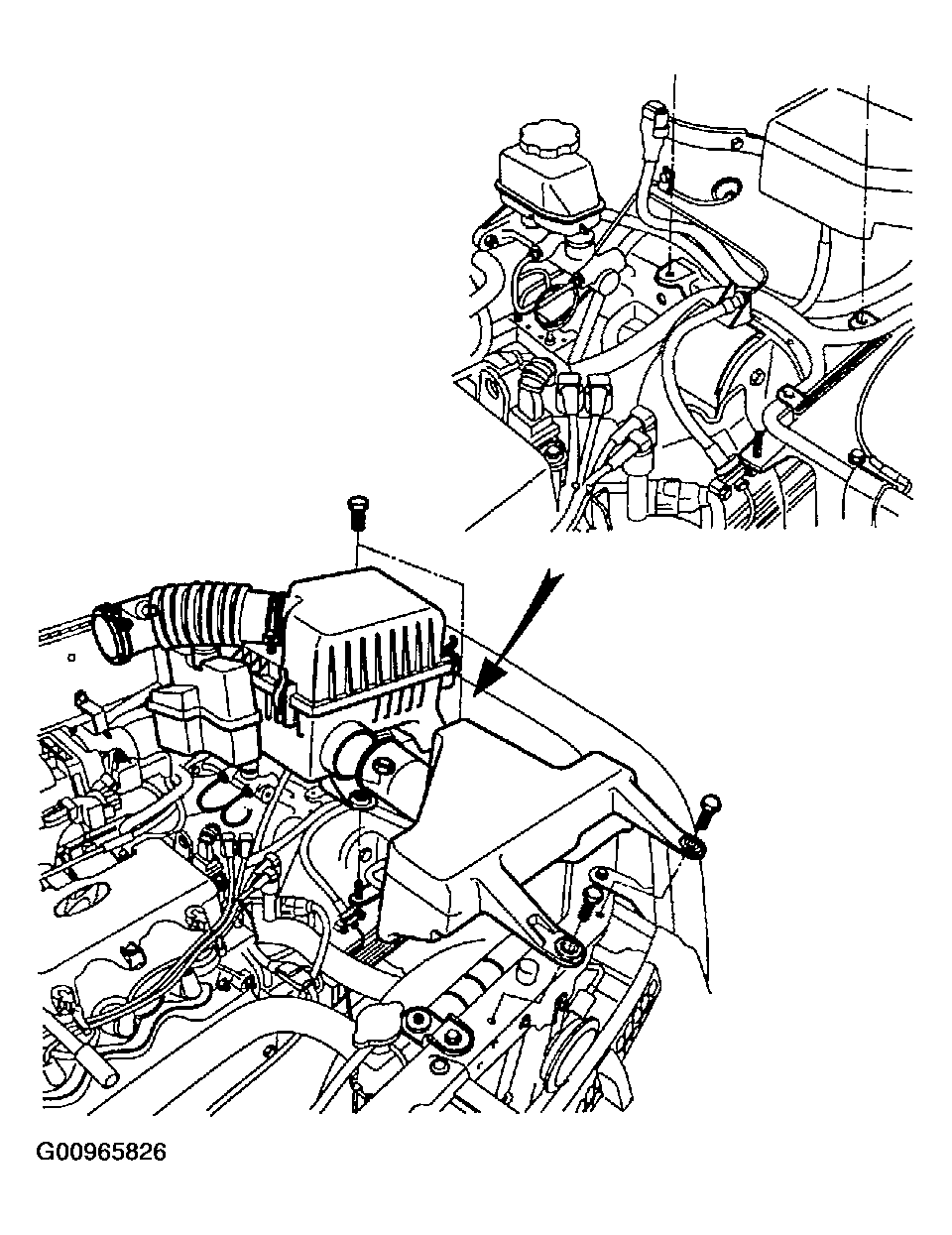

    Fig 1: Removing Air Cleaner
    G00965826Courtesy of HYUNDAI MOTOR CO.
  2. Remove the transmission mounting bolt. (17mm)

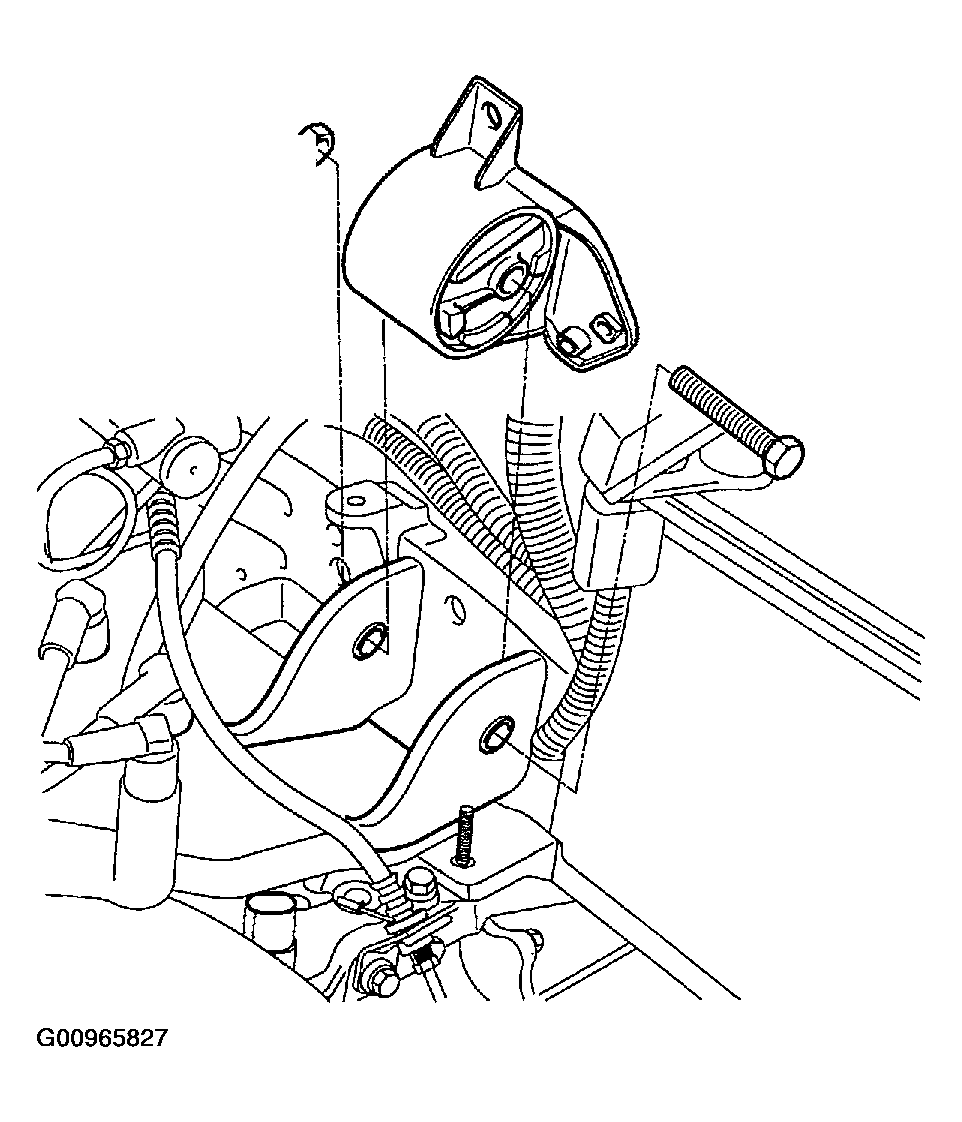

    Fig 2: Removing Transmission Mounting Bolt
    G00965827Courtesy of HYUNDAI MOTOR CO.
  3. Detach the cap from inside the right fender shield. Remove the transmission mounting bolts. (14mm)
    Fig 3: Identifying Transmission Mounting Bolts Caps
    G00965828Courtesy of HYUNDAI MOTOR CO.
  4. Remove the transmission bracket.
