Specific Gravity Test

  1. Measure the specific gravity of the coolant with a hydrometer.

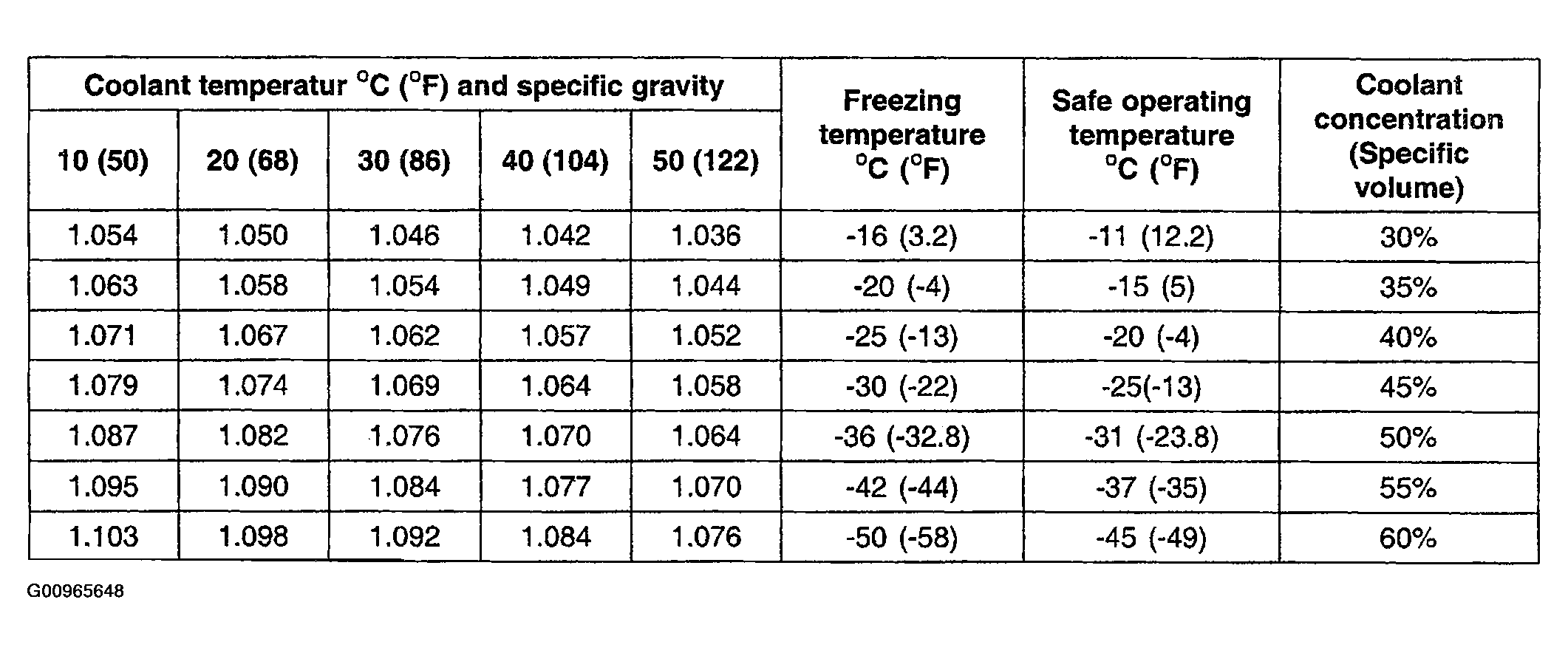

  2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature, using the following table for reference. Refer to Figure.

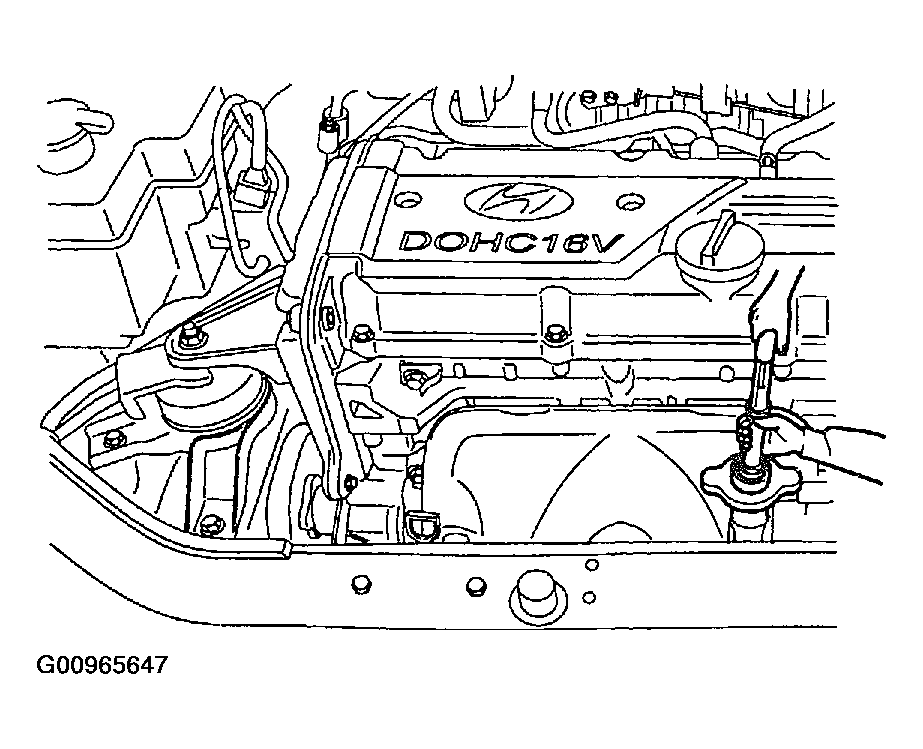

Fig 1: Checking Coolant With Hydrometer
G00965647Courtesy of HYUNDAI MOTOR CO.
