Fly Wheel: Components

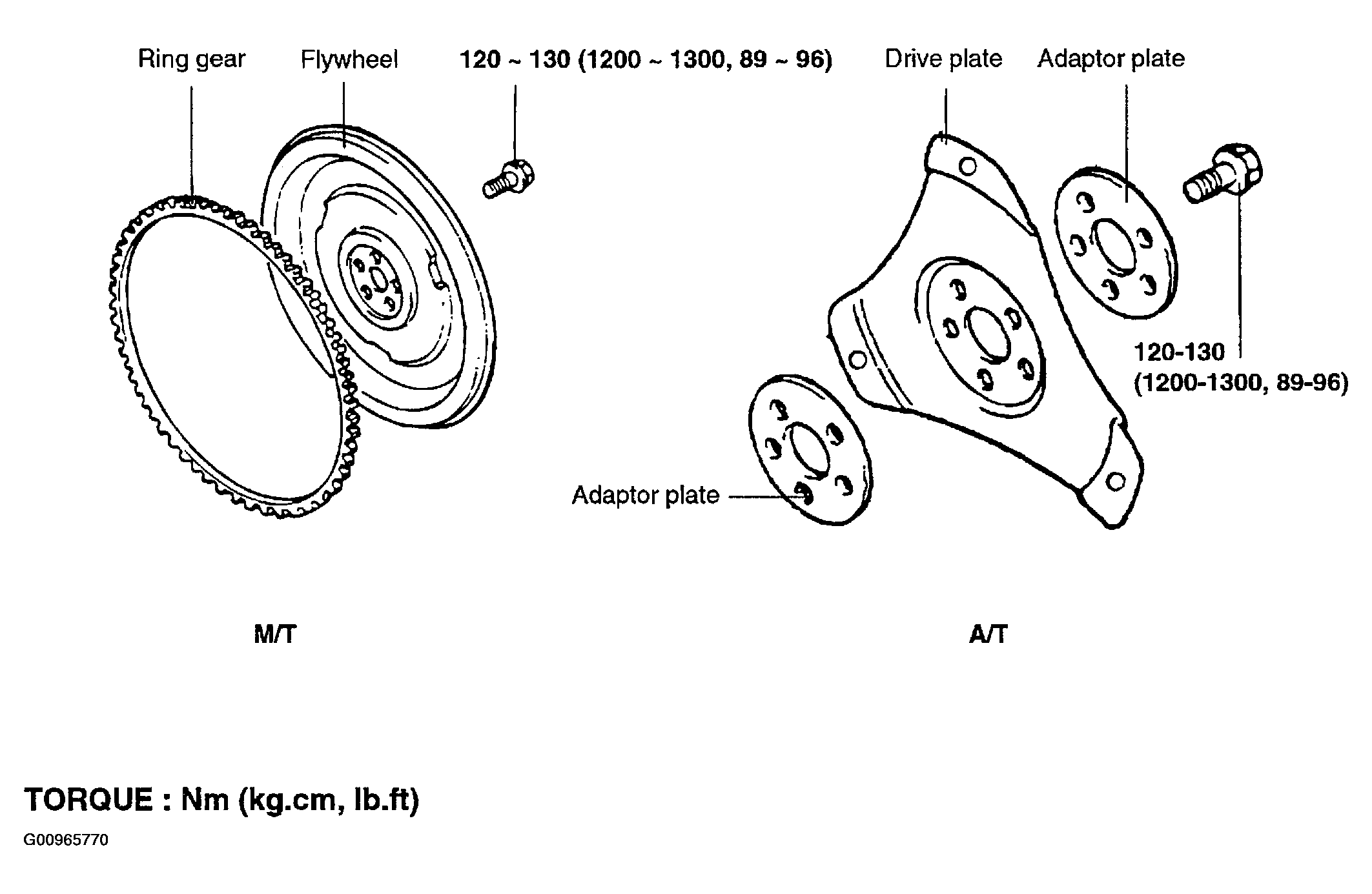

Fig 1: Fly Wheel & Drive Plate Components
G00965770Courtesy of HYUNDAI MOTOR CO.

M/T: Manual Transmission Vehicles

A/T: Automatic Transmission Vehicles
