Main Moving System: Piston: Components

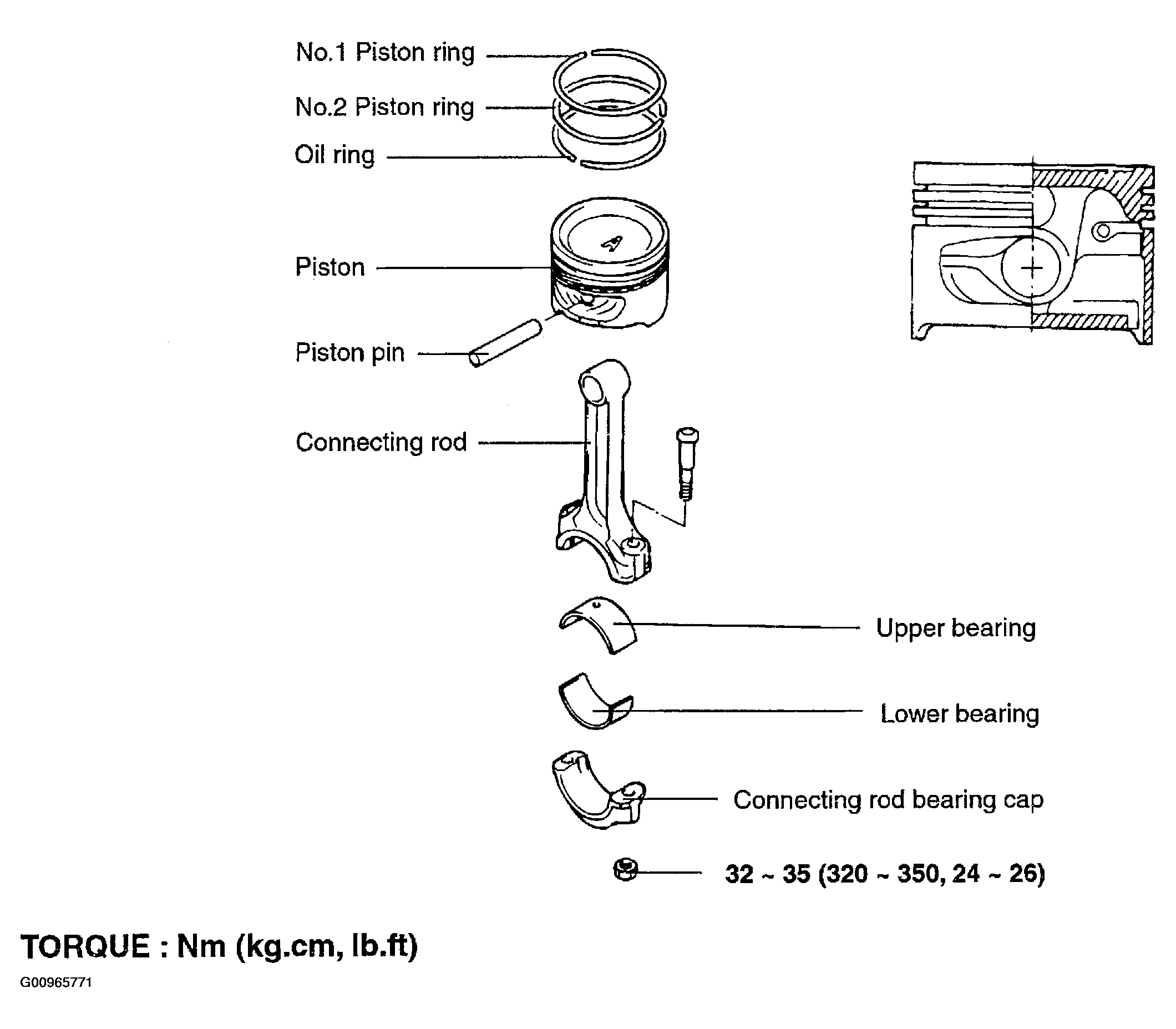

Fig 1: Piston Components
G00965771Courtesy of HYUNDAI MOTOR CO.
