Timing Belt: Disassembly

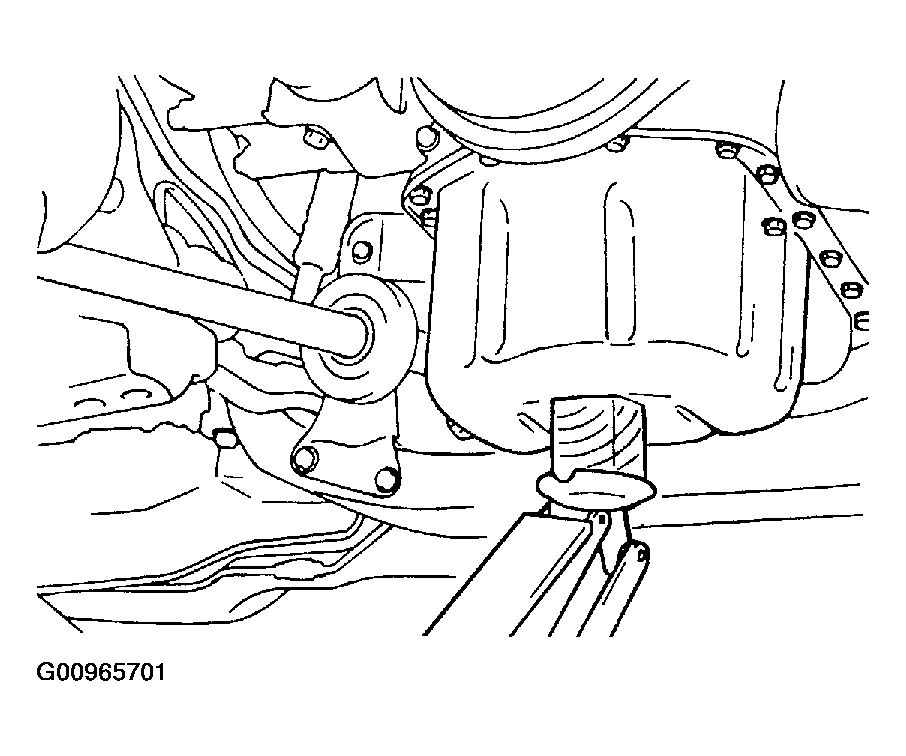

Lift the vehicle by using of jack.

Fig 1: Lifting Engine
Courtesy of HYUNDAI MOTOR CO.

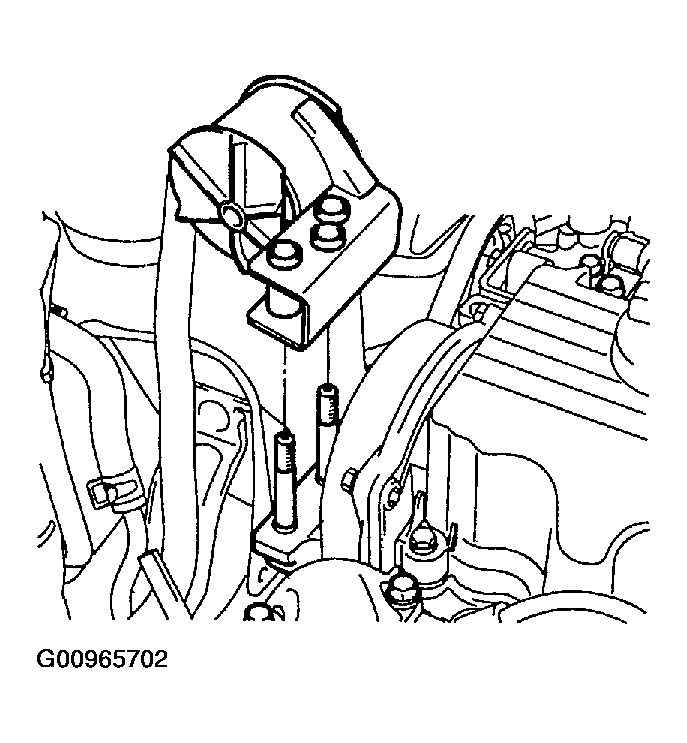

Remove the engine support bracket. (14mm bolt and 2 nuts, 17mm bolt)

Fig 2: Removing Engine Support Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove the power steering belt.
Remove the air conditioning compressor belt.
Remove the alternator belt.

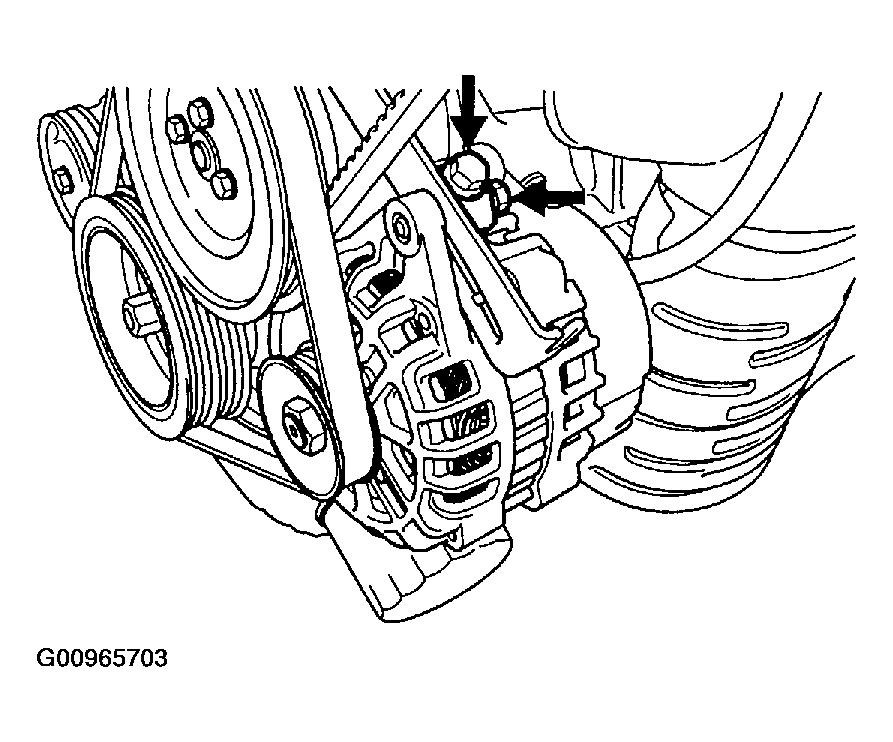

Fig 3: Identifying Alternator Belt Adjustment Bolt
Courtesy of HYUNDAI MOTOR CO.

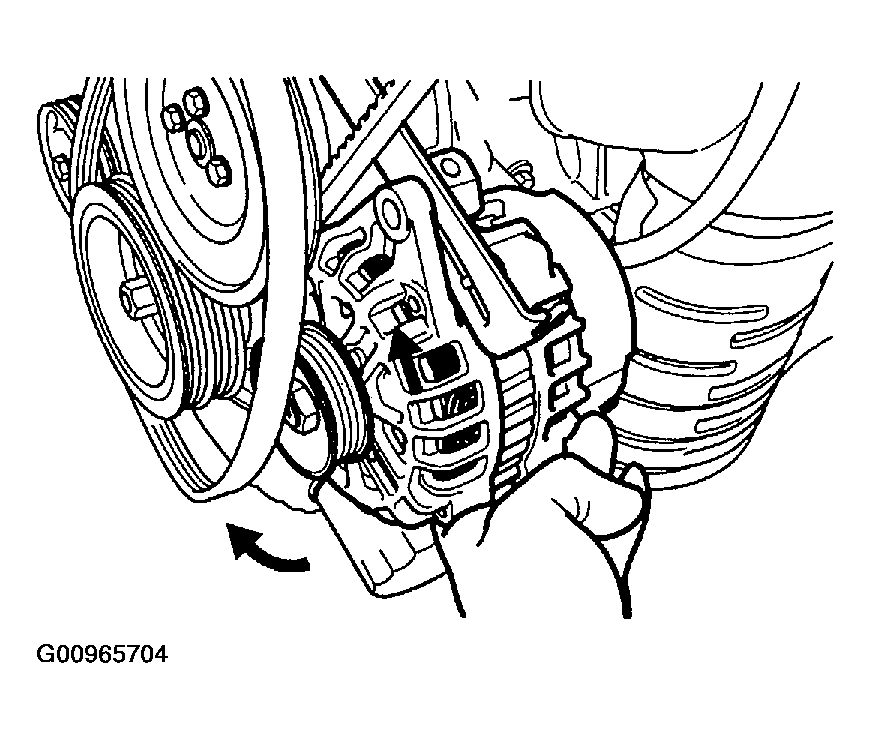

Fig 4: Removing Alternator Belt
Courtesy of HYUNDAI MOTOR CO.

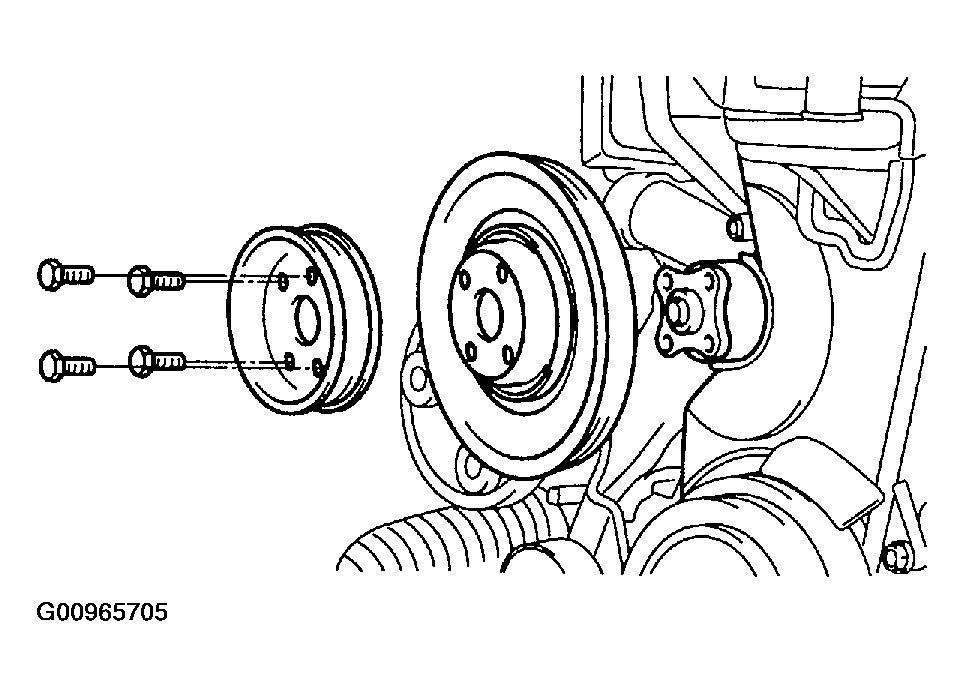

Remove the coolant pump pulley.

Fig 5: Removing Coolant Pump Pulley
Courtesy of HYUNDAI MOTOR CO.

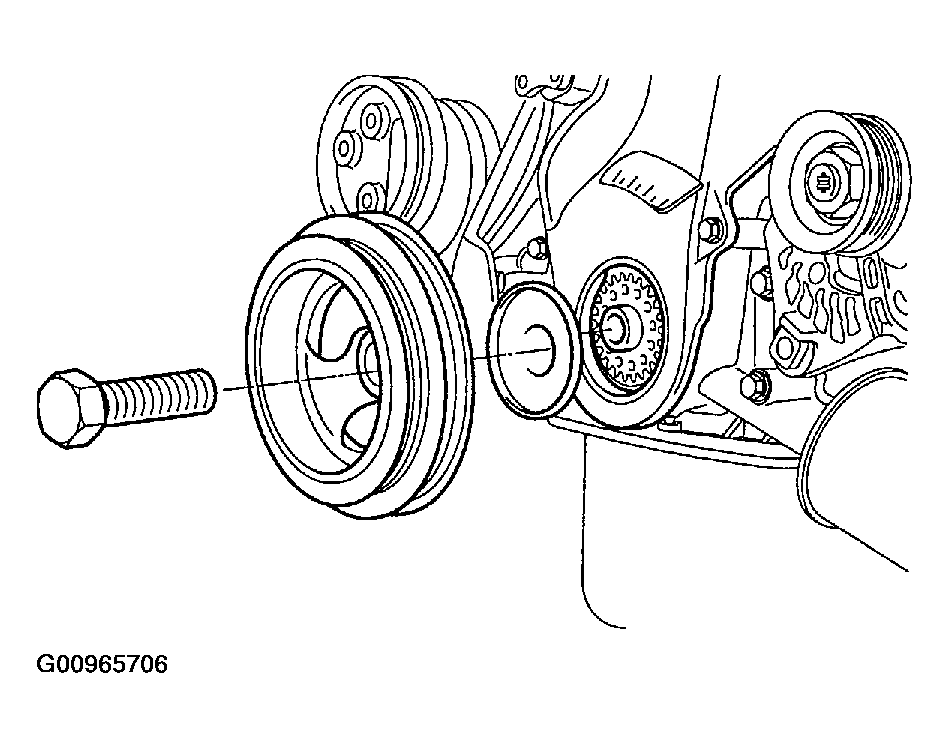

Remove the crankshaft pulley.

Fig 6: Removing Crankshaft Pulley
Courtesy of HYUNDAI MOTOR CO.
Remove the timing belt cover.

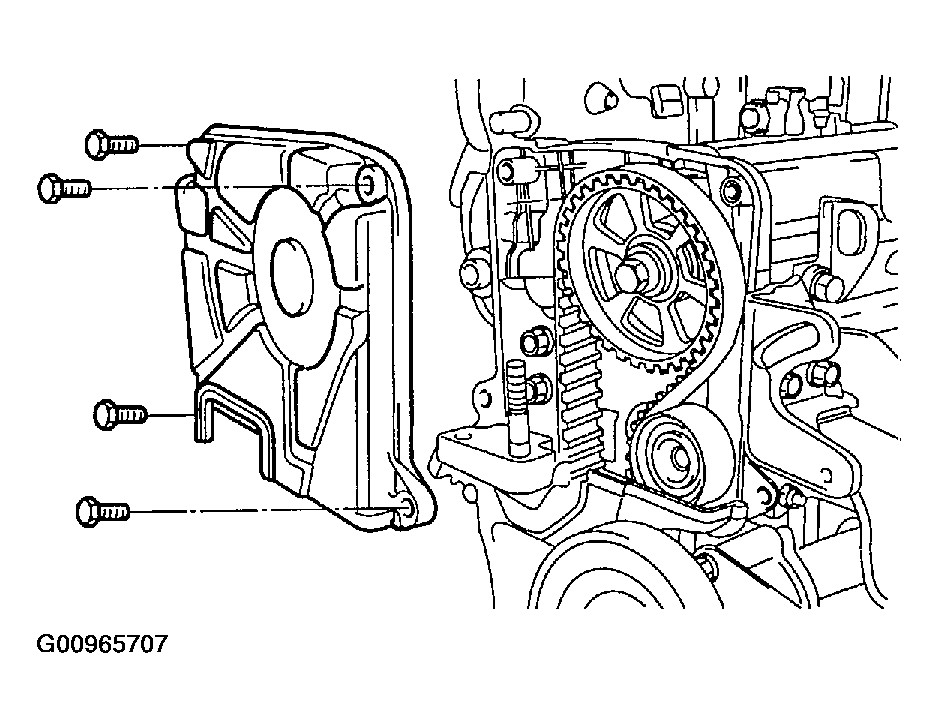

Fig 7: Removing Timing Belt Cover
Courtesy of HYUNDAI MOTOR CO.

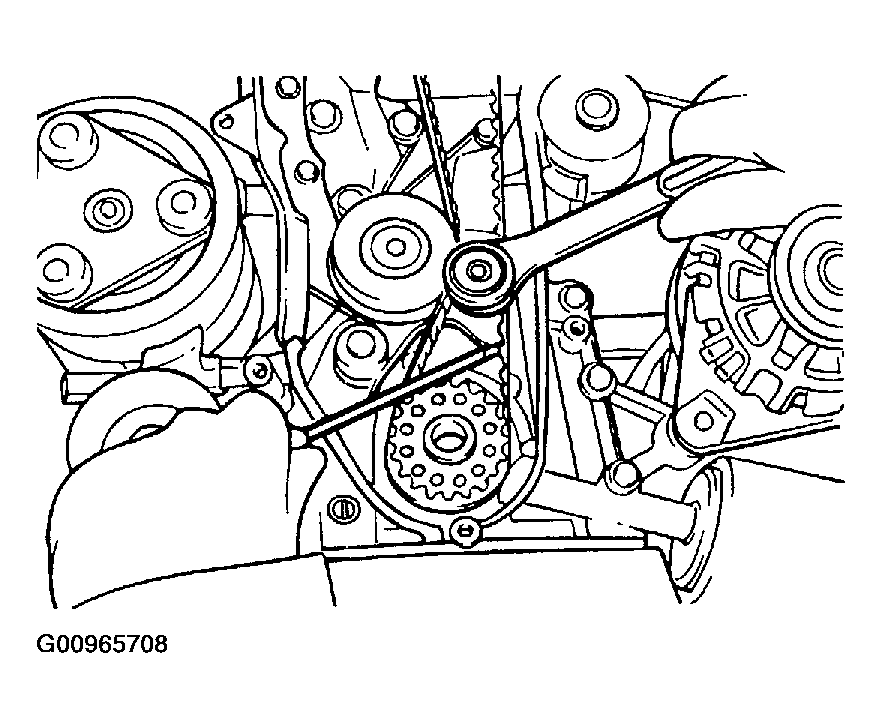

Move the timing belt tensioner pulley toward the coolant pump and temporarily secure it.

Fig 8: Moving Timing Belt Tensioner Pulley Toward Coolant Pump
Courtesy of HYUNDAI MOTOR CO.
Remove the timing belt.

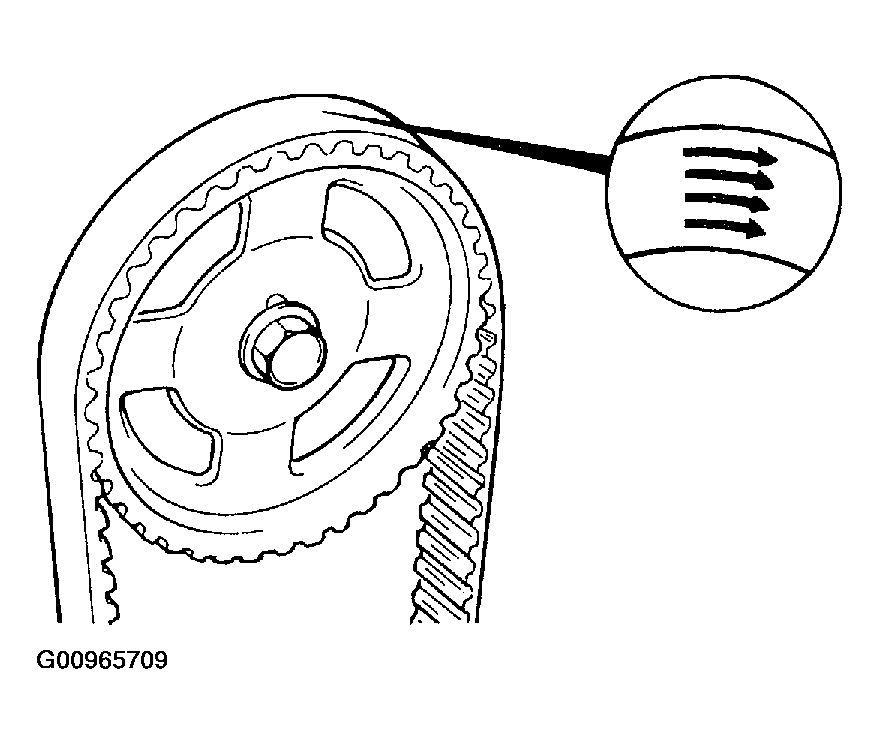

NOTE: If the timing belt is reused, mark with an arrow to indicate direction of rotation (on the front of the engine) to make sure that the belt is reinstalled in the same direction as before.

Fig 9: Identifying Reference Arrows
Courtesy of HYUNDAI MOTOR CO.
Remove the camshaft from the camshaft sprocket.
Remove the crankshaft sprocket and flange.
Remove the timing belt idler.
Remove the timing belt tensioner.

Fig 10: Identifying Timing Belt Tensioner

Courtesy of HYUNDAI MOTOR CO.
