Timing Belt: Reassembly

  1. Install the flange and crankshaft sprocket as shown. Pay close attention to their mounting directions.
    Fig 1: Installing Flange & Crankshaft Sprocket
    G00965715Courtesy of HYUNDAI MOTOR CO.
  2. Install the camshaft sprocket and tighten the bolt to the specified torque.

    Tightening torque

    1. Camshaft sprocket bolt:
    2. 80-100 N.m (800-1000 kg.cm, 59-74 Ib.ft)
  3. Install the idler and tighten the idler bolt to the specified torque.

    Tightening torque

    1. Idler bolt: 43-55 N.m (430-550 kg.cm, 32-41 Ib.ft)
  4. Align the timing marks of the camshaft sprocket (A) and camshaft bearing cap (B).

    Then align the timing marks of crankshaft sprocket and front case with the No. 1 piston placed at top dead center on its compression stroke as shown in the illustration.

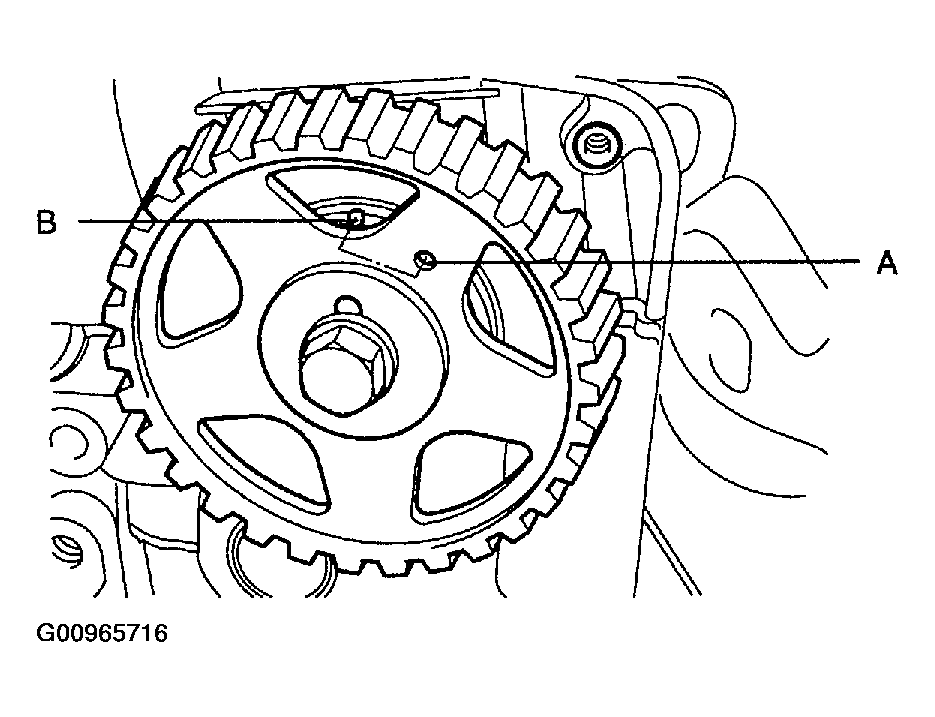

    Fig 2: Identifying Timing Marks (1 Of 2)
    G00965716Courtesy of HYUNDAI MOTOR CO.

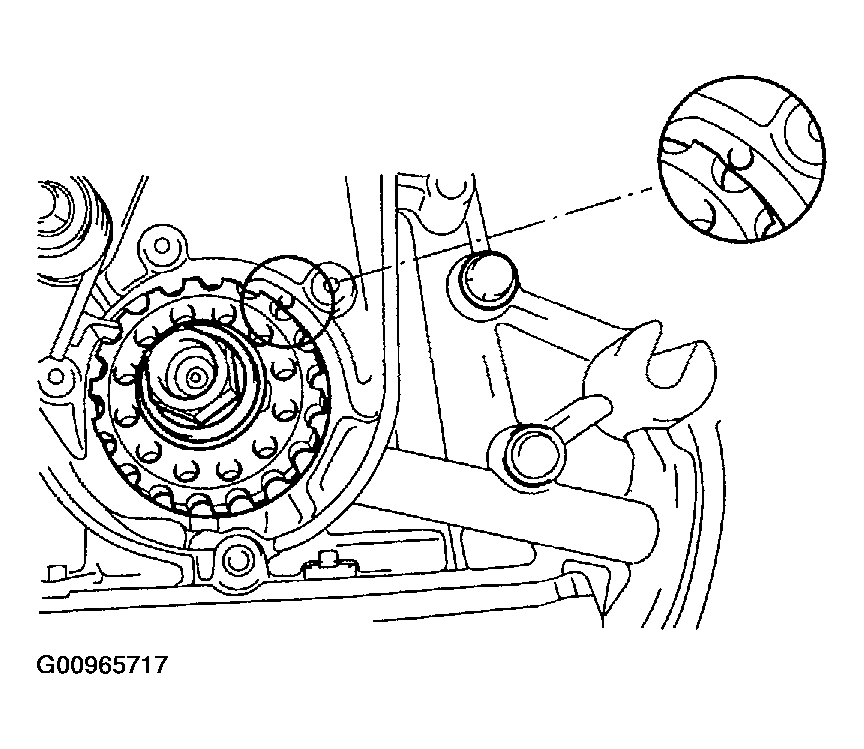

    Fig 3: Identifying Timing Marks (2 Of 2)
    G00965717Courtesy of HYUNDAI MOTOR CO.
  5. To install the timing belt tensioner, first mount the tensioner, spring, and spacer. Temporarily tighten the bolts. Next, temporarily tighten the tensioner long hole side washer and bolts. Install the bottom end of the spring against the front case as shown in the illustration.

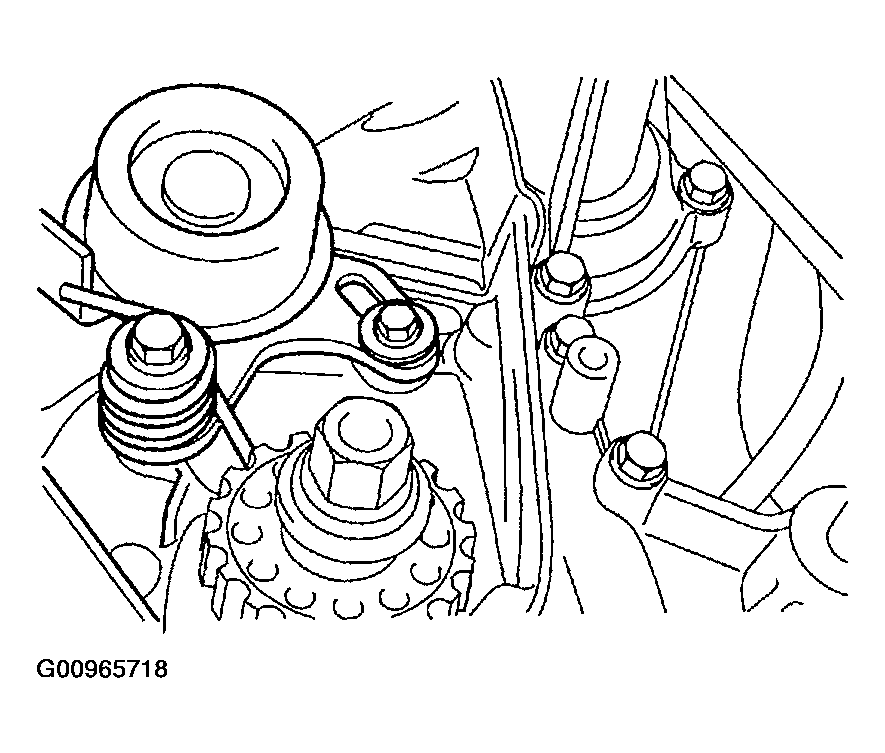

    Fig 4: Installing Timing Belt Tensioner
    G00965718Courtesy of HYUNDAI MOTOR CO.
  6. Secure the tensioner, positioned towards the water pump.

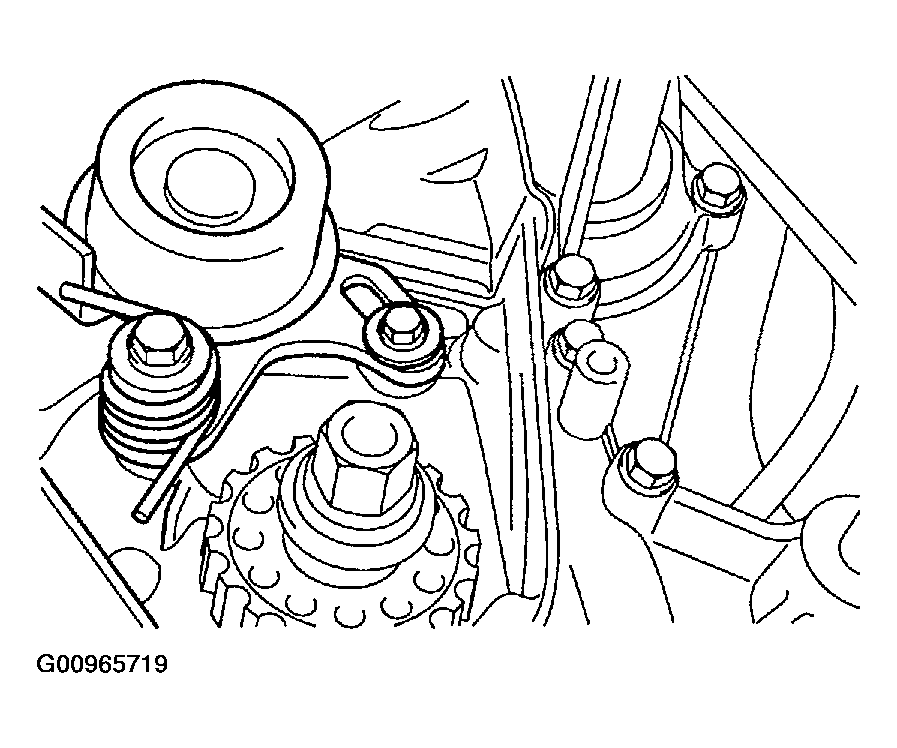

    Fig 5: Positioning Spring Towards Water Pump
    G00965719Courtesy of HYUNDAI MOTOR CO.
  7. Install the timing belt on the crankshaft sprocket. (1) Crankshaft sprocket >(2) Timing belt idler >(3) Camshaft sprocket >(4) Timing belt tensioner.
    Fig 6: Installing Timing Belt
    G00965720Courtesy of HYUNDAI MOTOR CO.
  8. Install the timing belt on the camshaft sprocket. When the timing belt is installed on the camshaft sprocket, make sure that the tension side is tight. Then, check to ensure that when the tension side is tightened by turning the camshaft sprocket in a reverse direction and all timing marks are in line.
  9. Tighten the tensioner bolts.

    Tightening torque

    1. Tensioner attaching bolt:
    2. 20-27 N.m (200-270 kg.cm, 15-20 Ib.ft)
  10. Turn the crankshaft two turns in its operating direction (clock-wise) and realign the camshaft sprocket timing mark with the top dead center position.
  11. Then recheck the belt tension Verify that when the tensioner and the tension side of the timing belt are pushed in horizontally with a moderate force [approx. 49 N (11 Ib)], the timing belt cog end is approx. 1/2 of the tensioner mounting bolt head radius (across flats) away from the bolt head center.

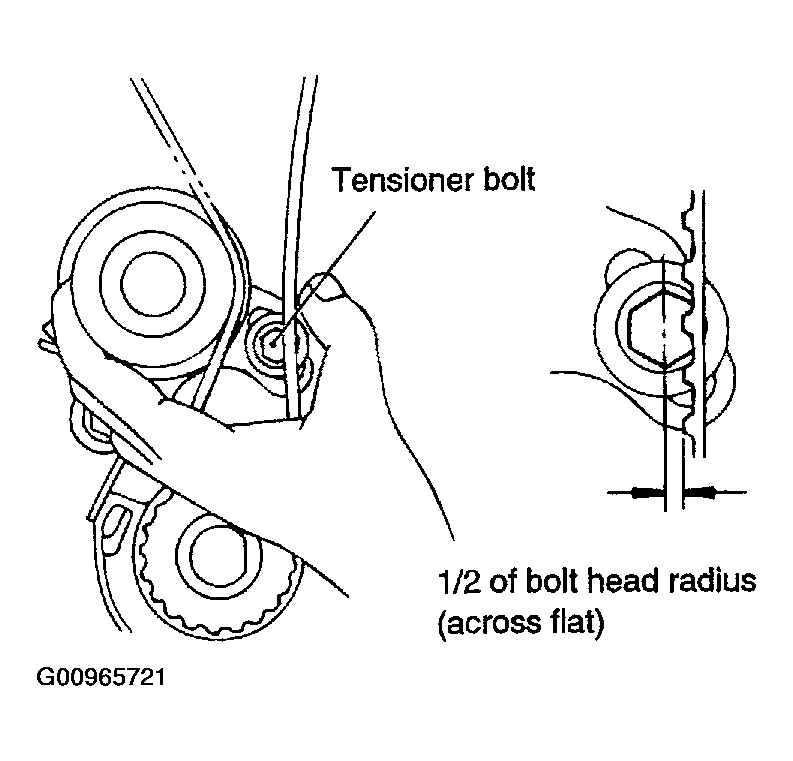

    Fig 7: Checking Belt Tension
    G00965721Courtesy of HYUNDAI MOTOR CO.
  12. Install the timing belt cover.

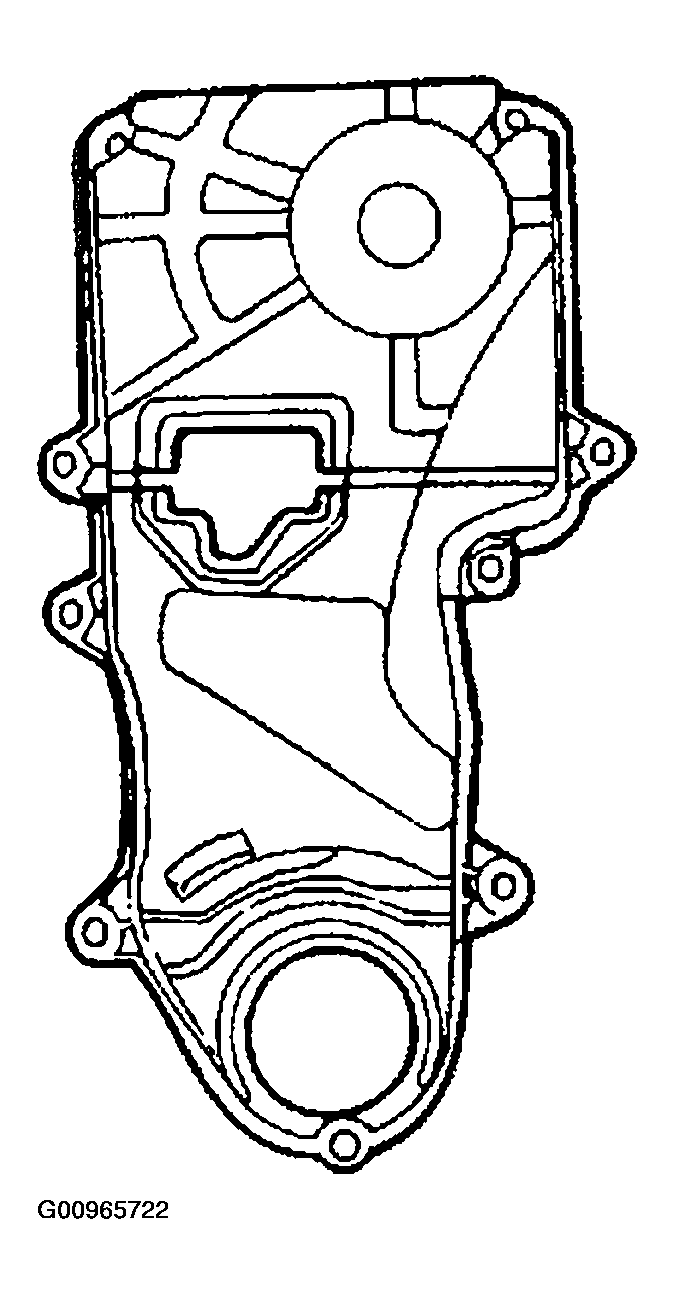

    Fig 8: Installing Timing Belt Cover
    G00965722Courtesy of HYUNDAI MOTOR CO.

    Tightening torque

    1. Timing belt cover bolt:
    2. 8-10 N.m (80-100 kg.cm, 6-7 Ib.ft)
  13. Install the crankshaft pulley. Make sure that the crankshaft sprocket pin fits the small hole in the pulley.

    Tightening torque

    1. Crankshaft pulley bolt:
    2. 140-150 N.m (1400-1500 kg.cm, 103-111 Ib.ft)
  14. Install the water pump pulley.

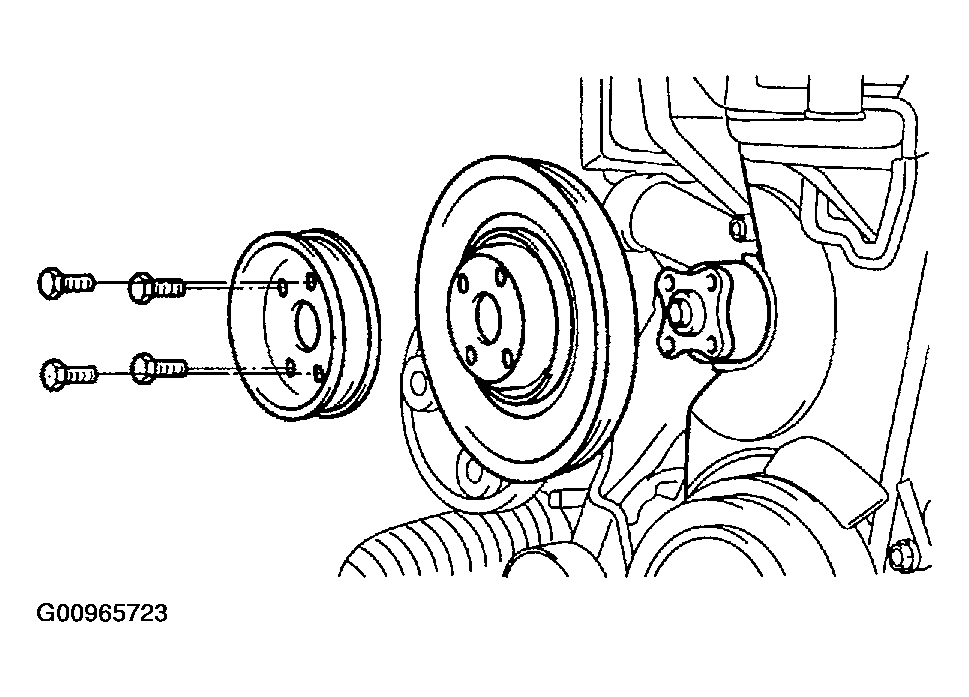

    Fig 9: Installing Water Pump Pulley
    G00965723Courtesy of HYUNDAI MOTOR CO.
  15. Install the alternator belt and adjust the belt tension.
  16. Install the air conditioning compressor belt and adjust the belt tension.
  17. Install the power steering belt and adjust the belt tension.
