Automatic Transaxle: Components

WARNING: This page is about a different variant/trim than selected.

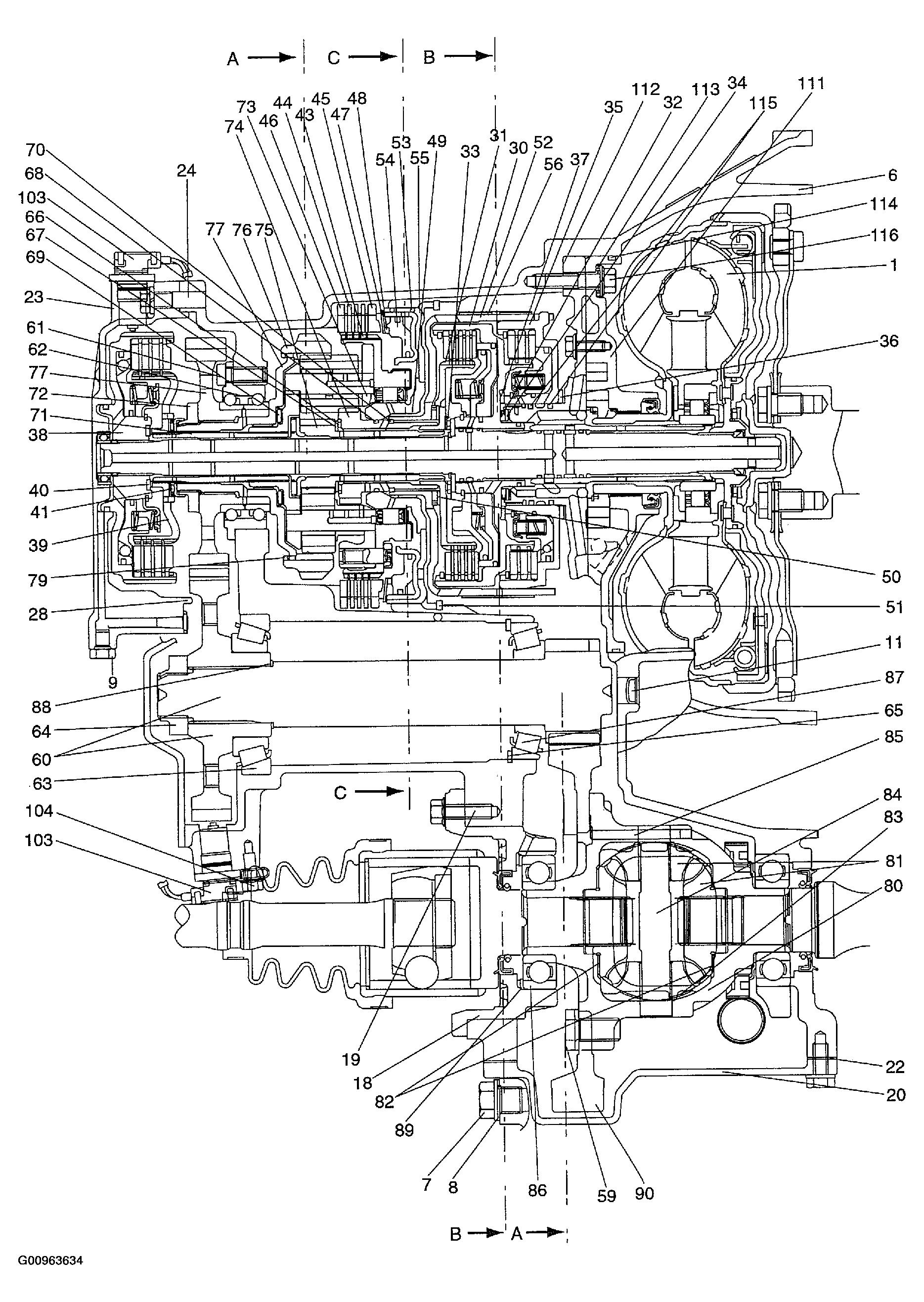

Fig 1: Locating Transaxle Components (1 Of 5)

Courtesy of HYUNDAI MOTOR CO.

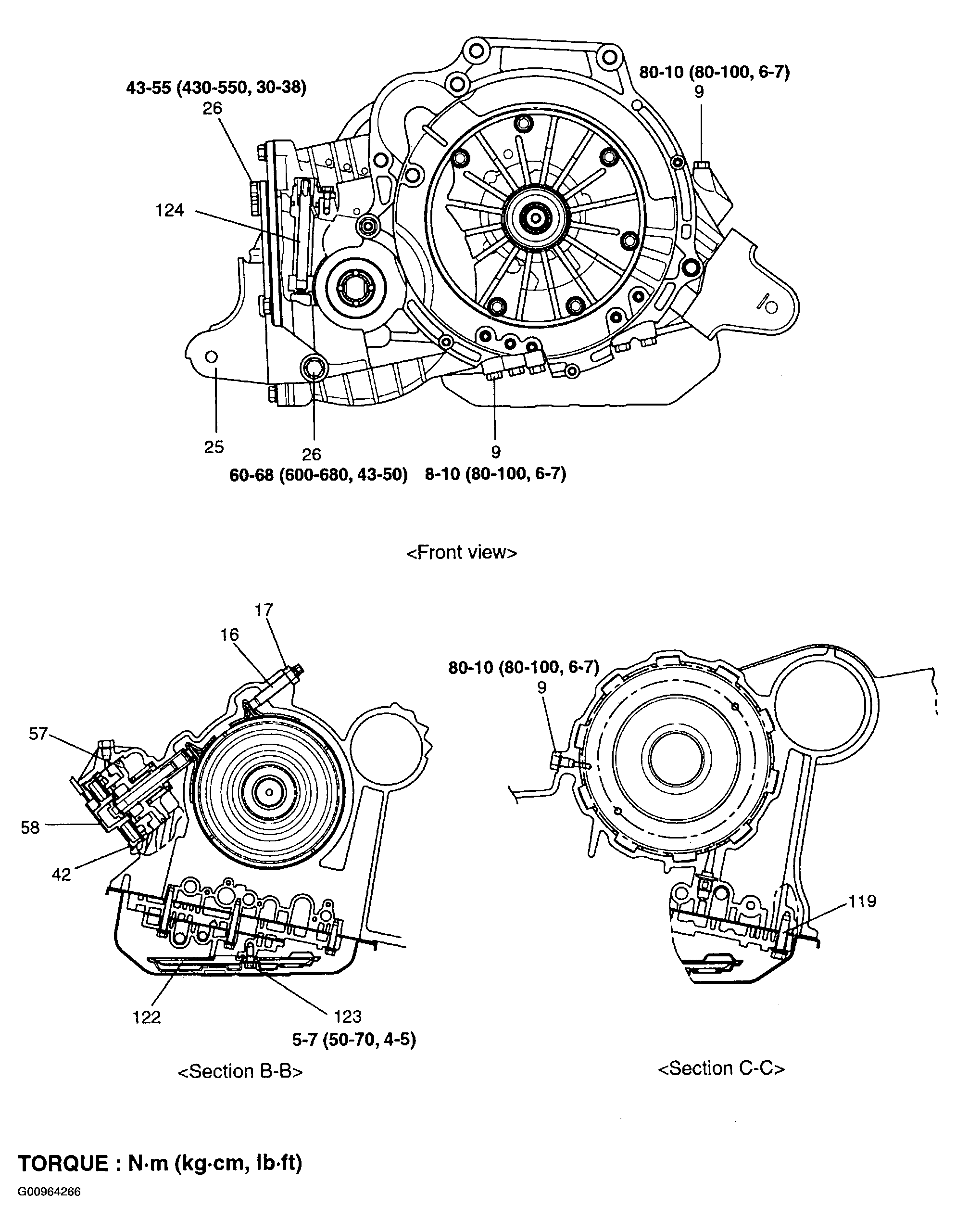

Fig 2: Locating Transaxle Components (2 Of 5)

Courtesy of HYUNDAI MOTOR CO.

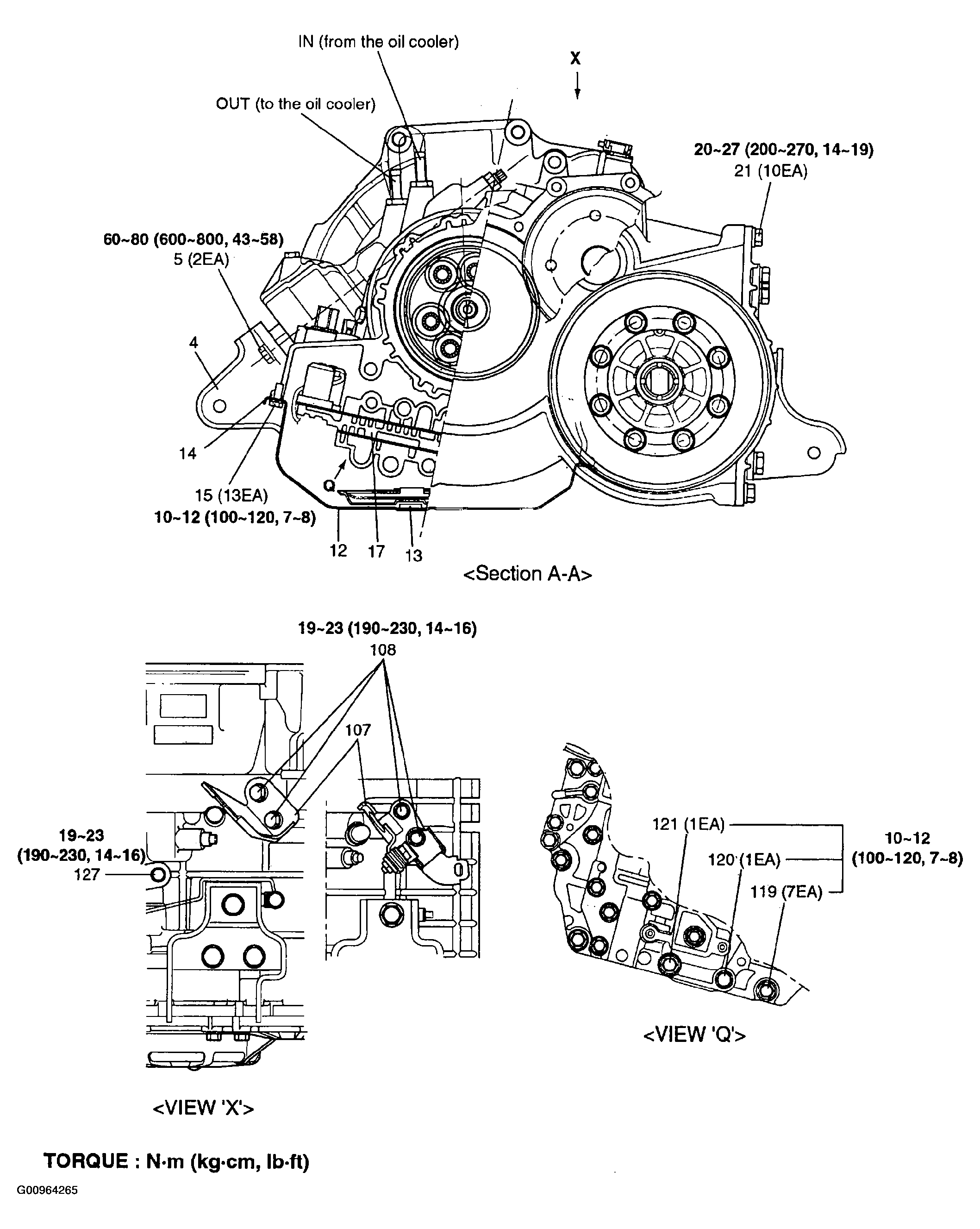

Fig 3: Locating Transaxle Components (3 Of 5)

Courtesy of HYUNDAI MOTOR CO.

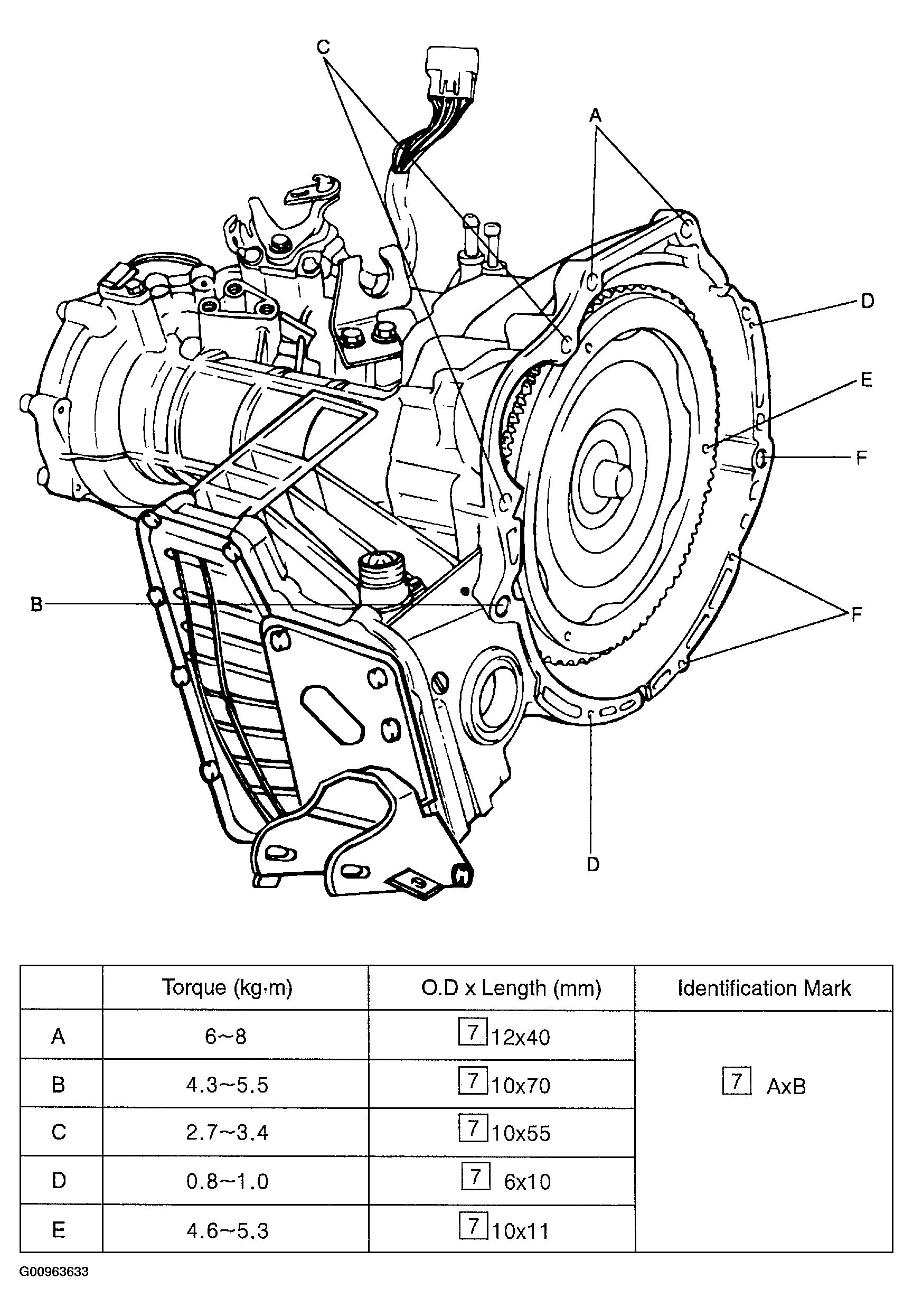

Fig 4: Locating Transaxle Components (4 Of 5)

Courtesy of HYUNDAI MOTOR CO.

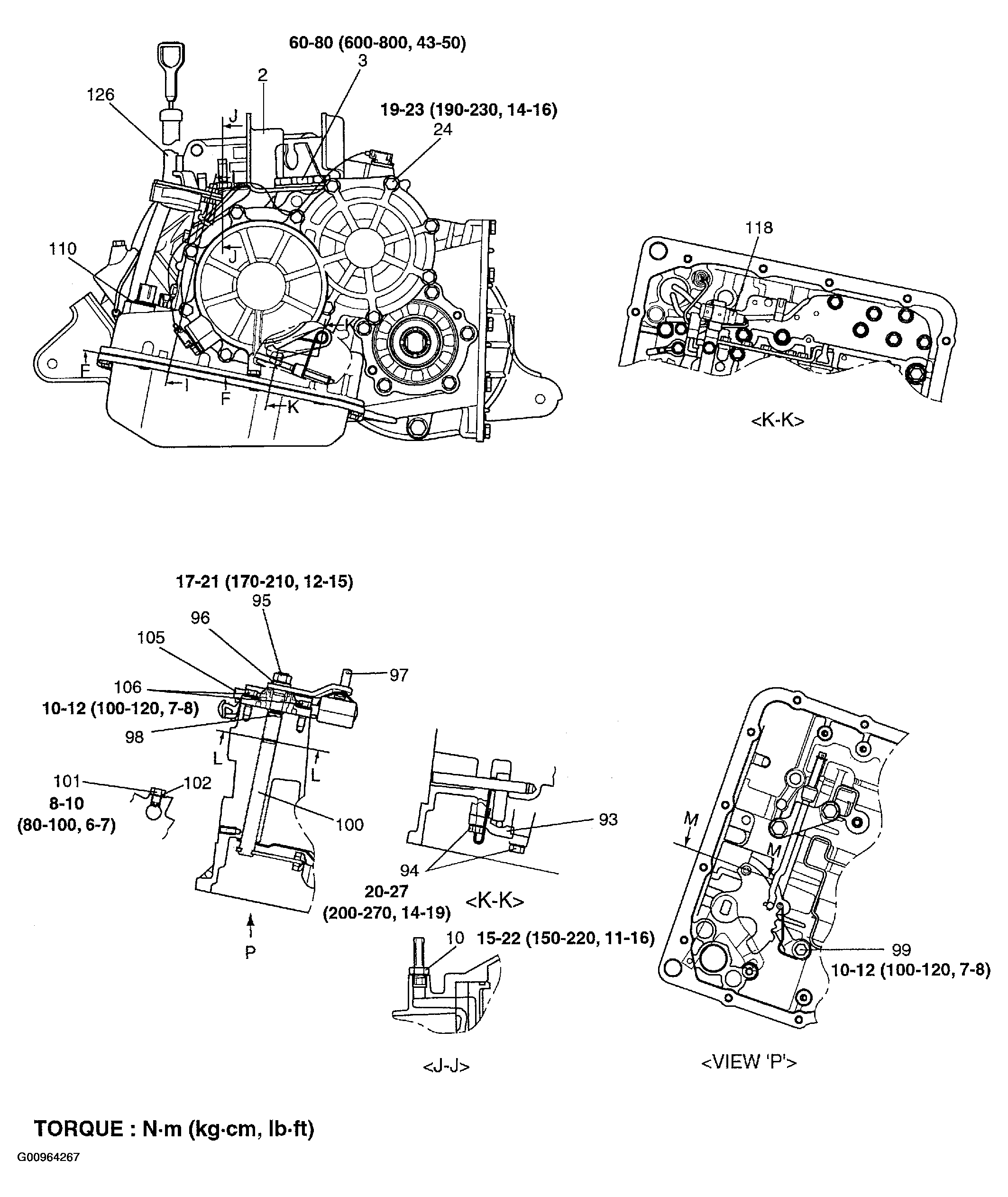

Fig 5: Locating Transaxle Components (5 Of 5)

Courtesy of HYUNDAI MOTOR CO.

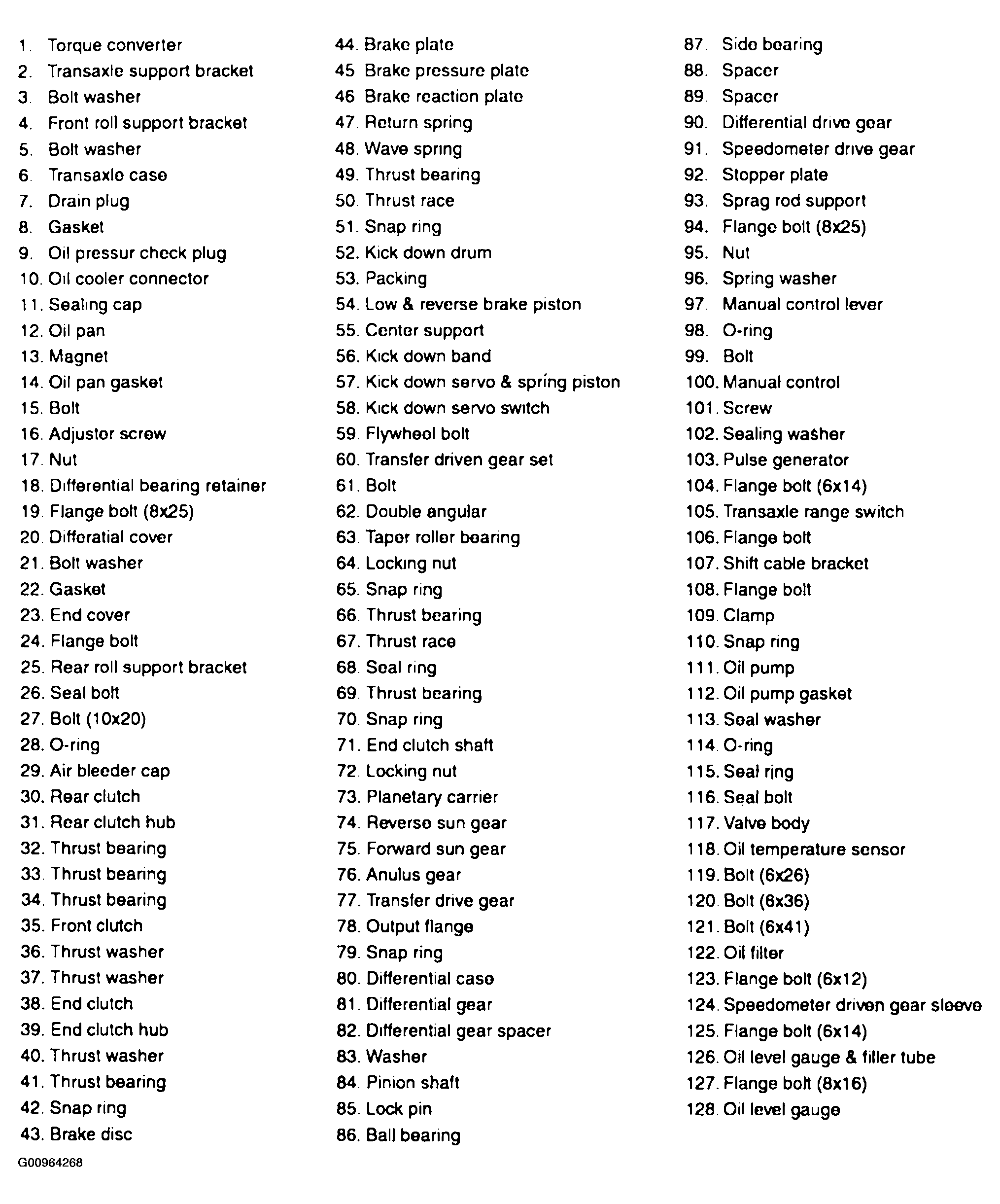

Fig 6: Identifying Transaxle Components

Courtesy of HYUNDAI MOTOR CO.
