Drive Shaft Oil Seals Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the drive shaft from the transaxle. Refer to AXLE SHAFTS .
  2. Using a flat-tip (-) screwdriver, remove the oil seal.

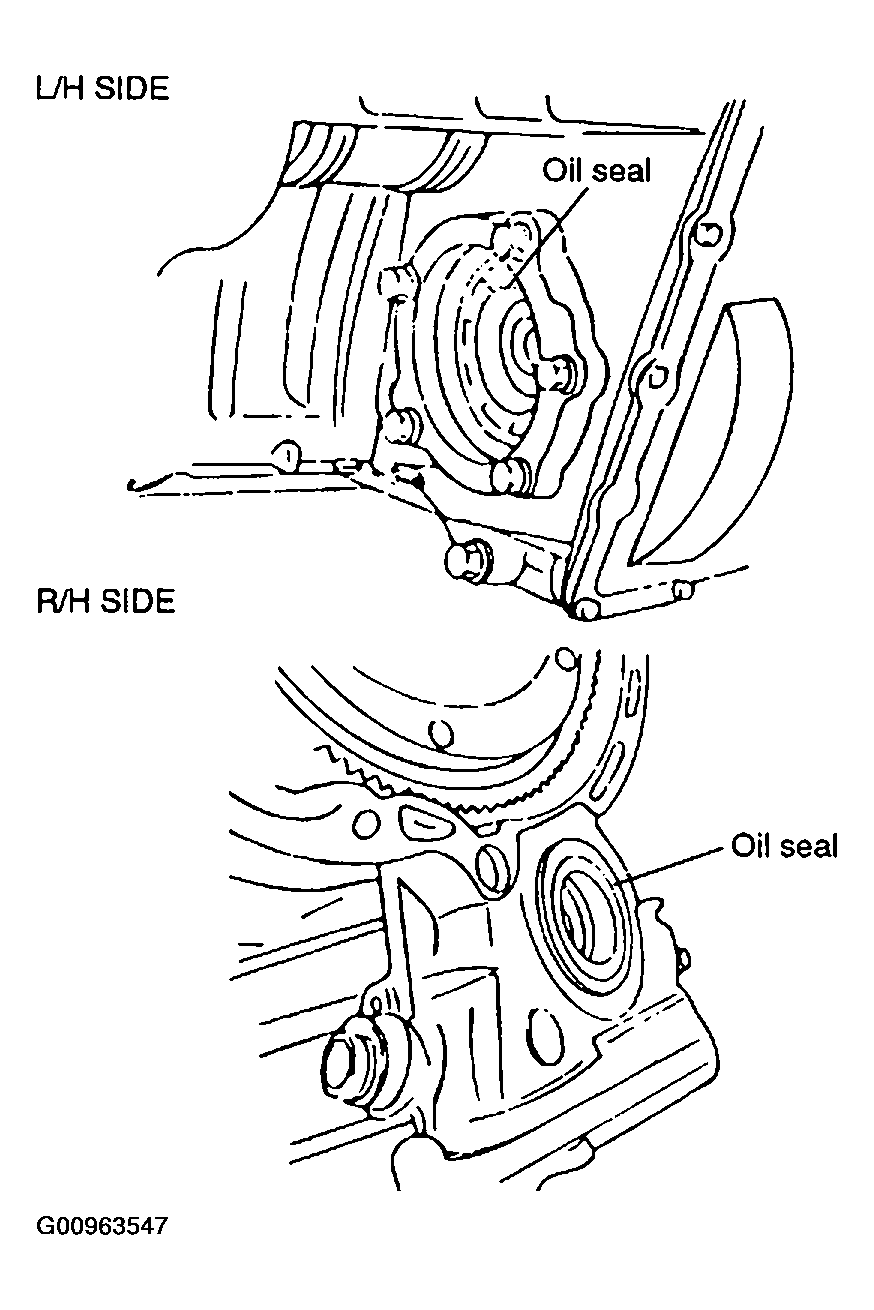

    Fig 1: Identifying Drive Shaft Oil Seals
    G00963547Courtesy of HYUNDAI MOTOR CO.
  3. Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.

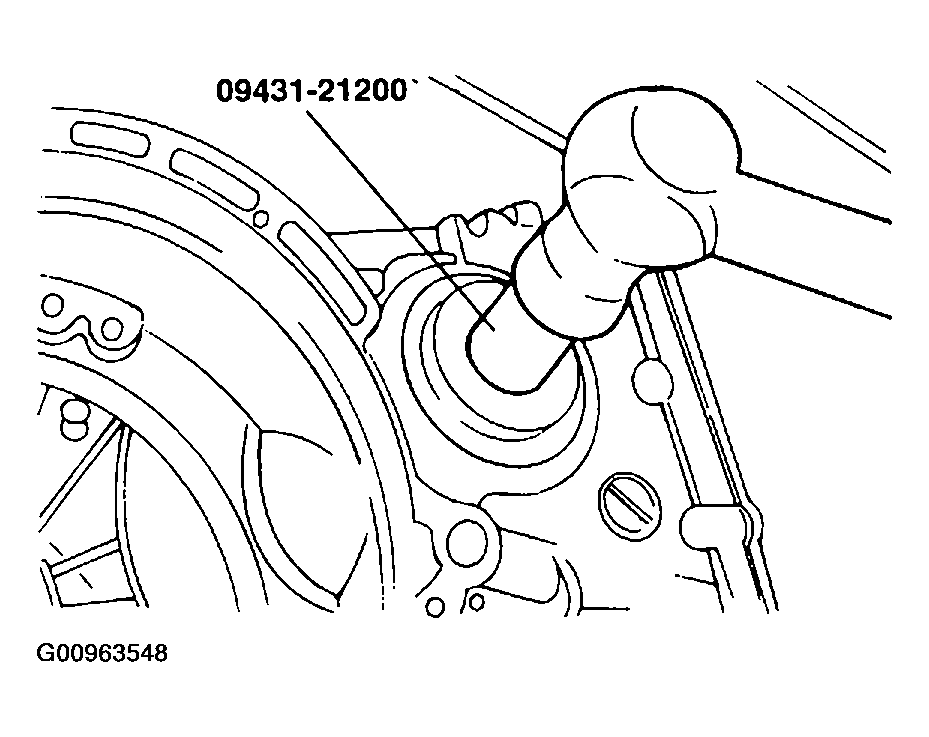

    Fig 2: Installing Drive Shaft Oil Seal
    G00963548Courtesy of HYUNDAI MOTOR CO.
  4. Apply a coating of the transaxle fluid to the lip of the oil seal.
