Inspection Procedure 16

WARNING: This page is about a different variant/trim than selected.
Fig 1: Overdrive Switch System Probable Cause Table
G00963516Courtesy of HYUNDAI MOTOR CO.

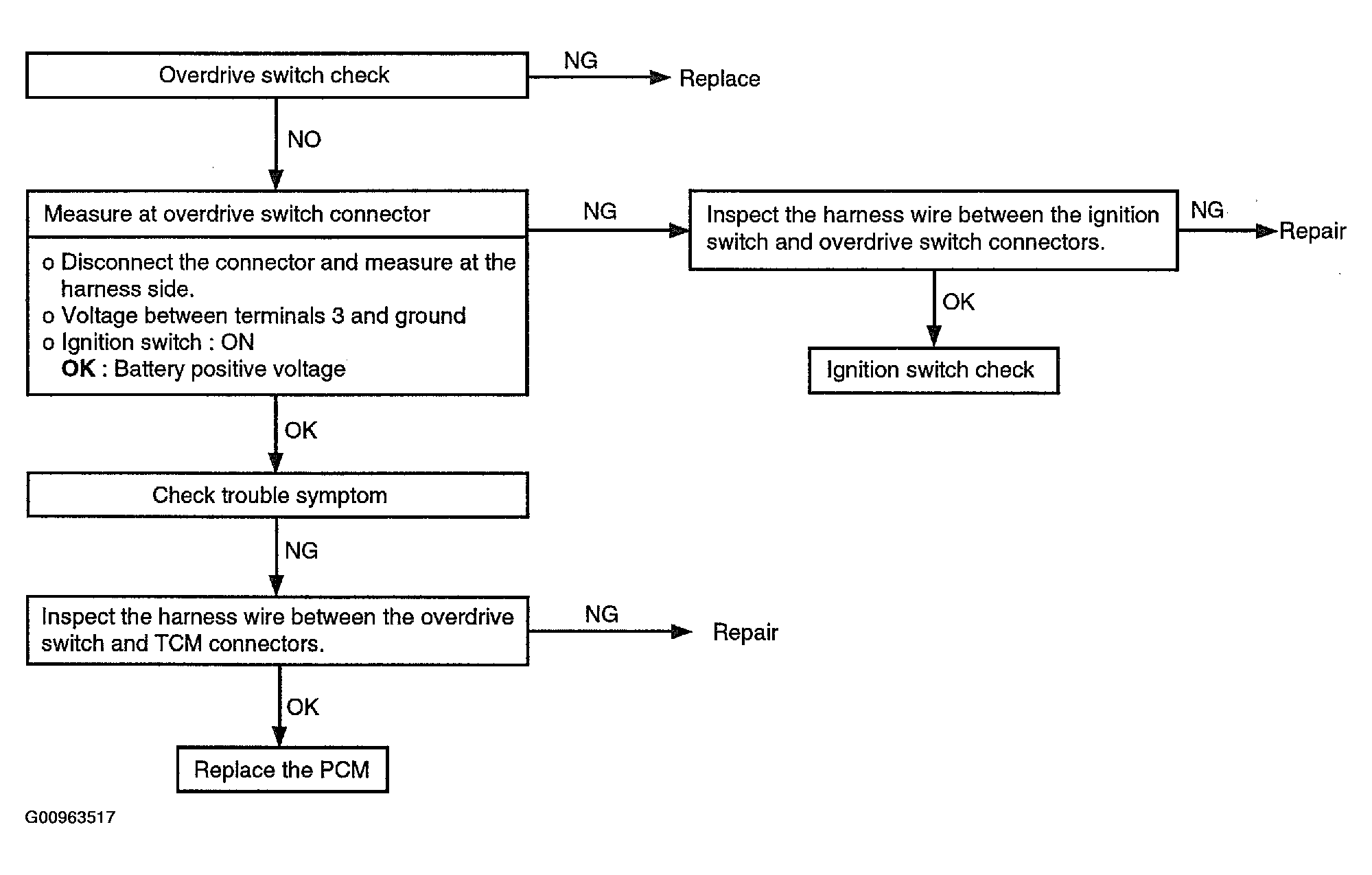

Fig 2: Overdrive Switch System Flow Chart
G00963517Courtesy of HYUNDAI MOTOR CO.
