Troubleshooting (Power Steering)

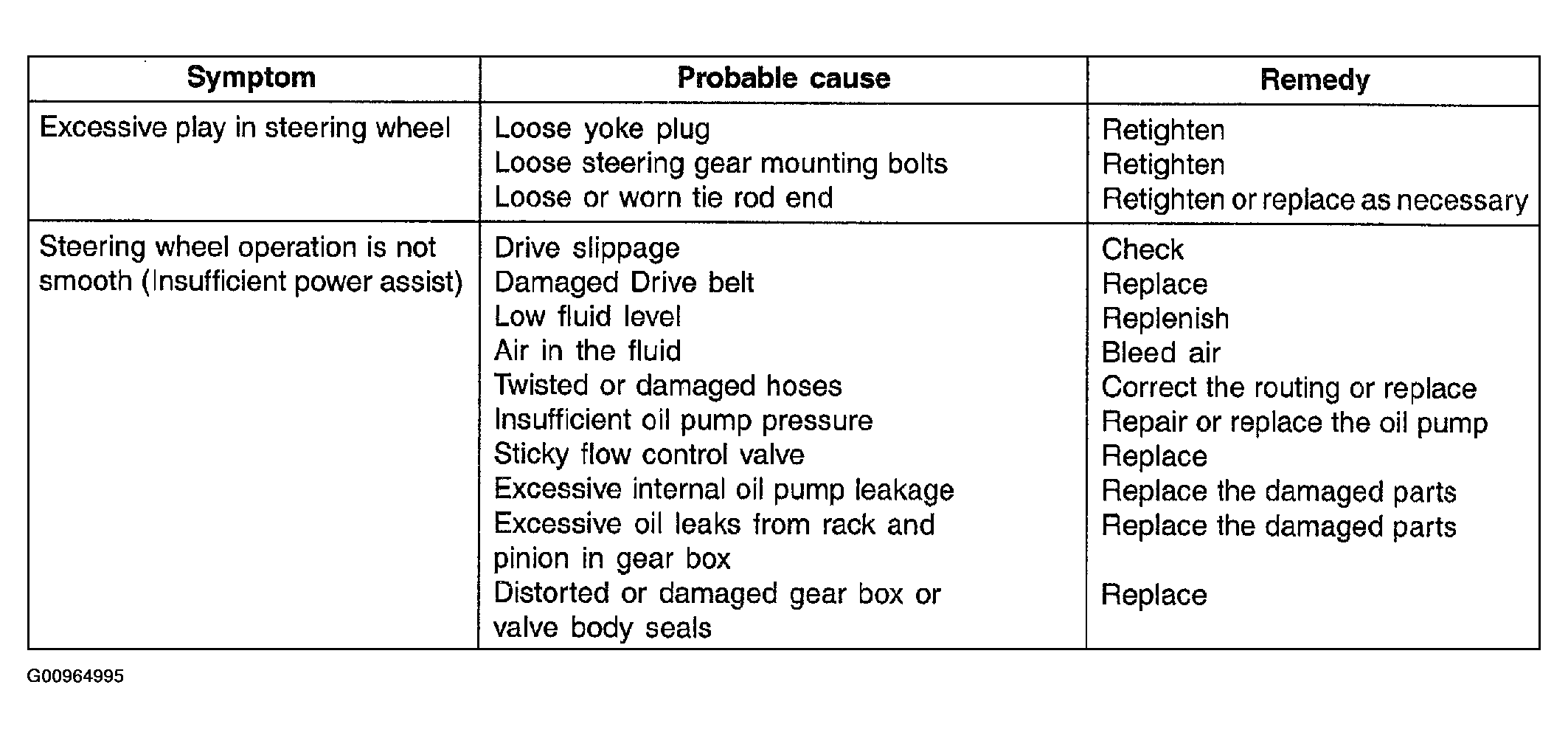

Fig 1: Troubleshooting Symptom Table (Power Steering - 1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

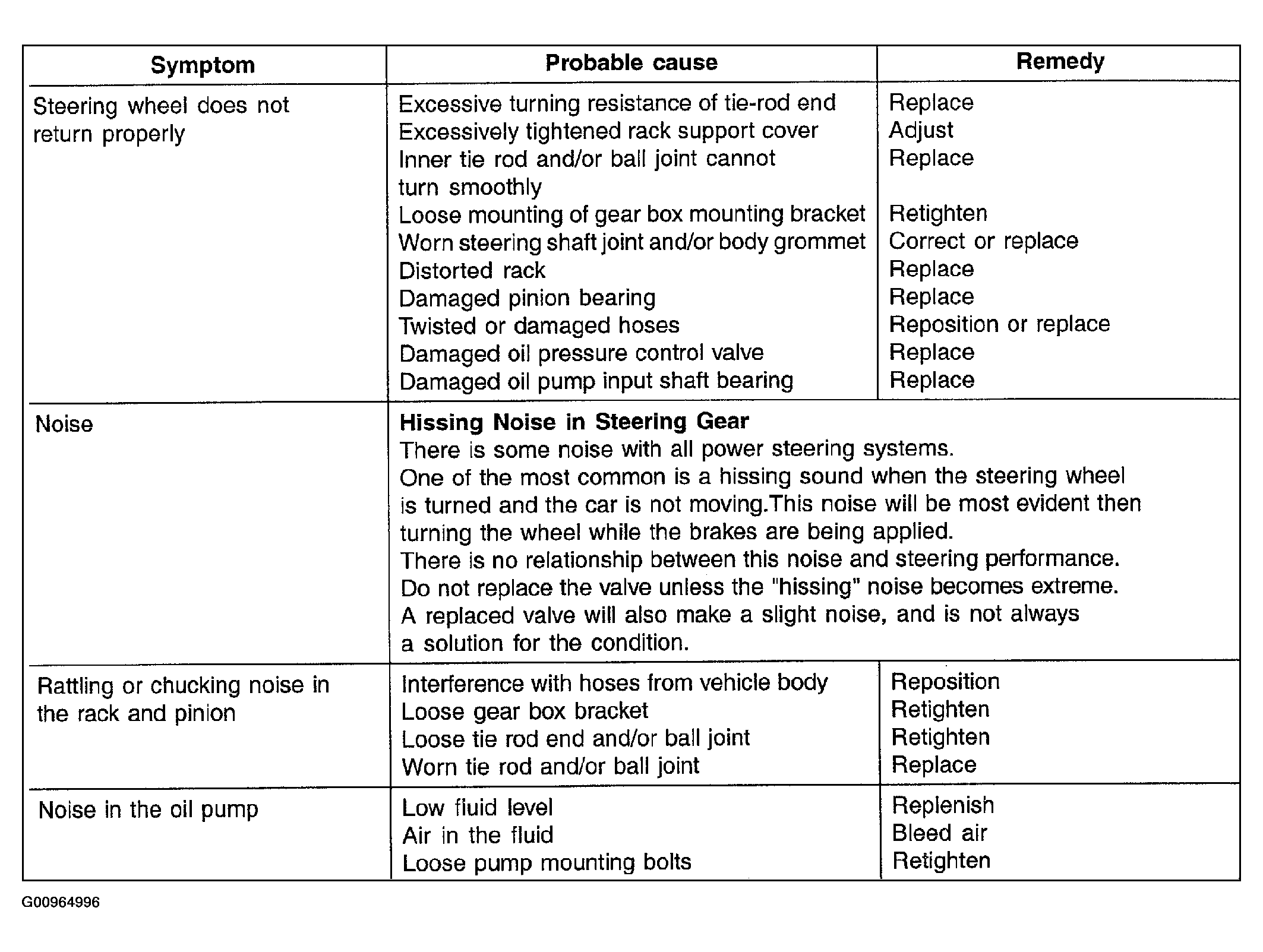

Fig 2: Troubleshooting Symptom Table (Power Steering - 2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

NOTE: A slight "grinding noise" may be heard immediately after the engine is started in extremely cold whether conditions (below-20°C): This is due to power steering fluid characteristics in extreme cold conditions and is not an indication of malfunction.
