Manual Steering Gear Box: Components

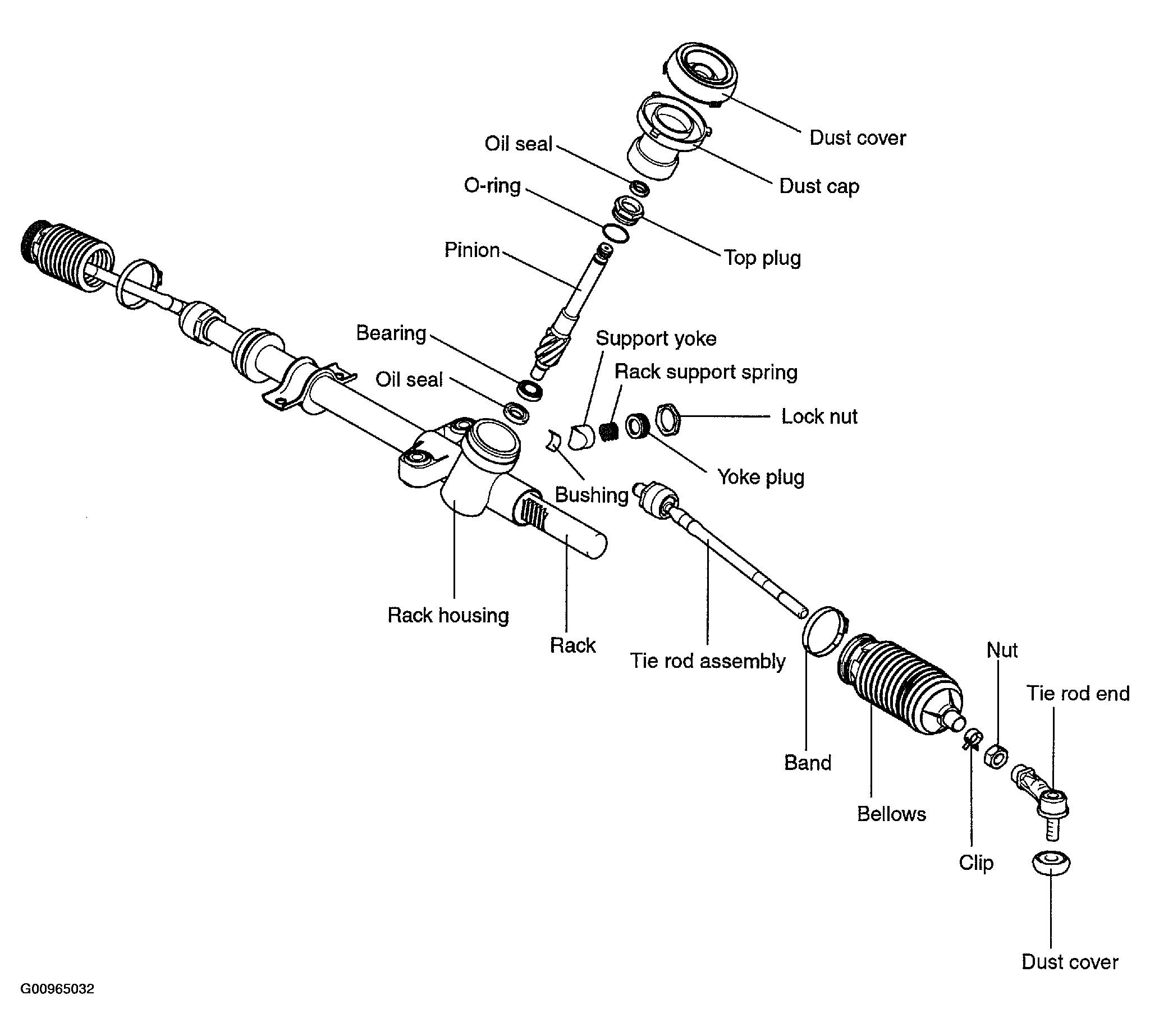

Fig 1: Manual Steering Gear Box Components (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

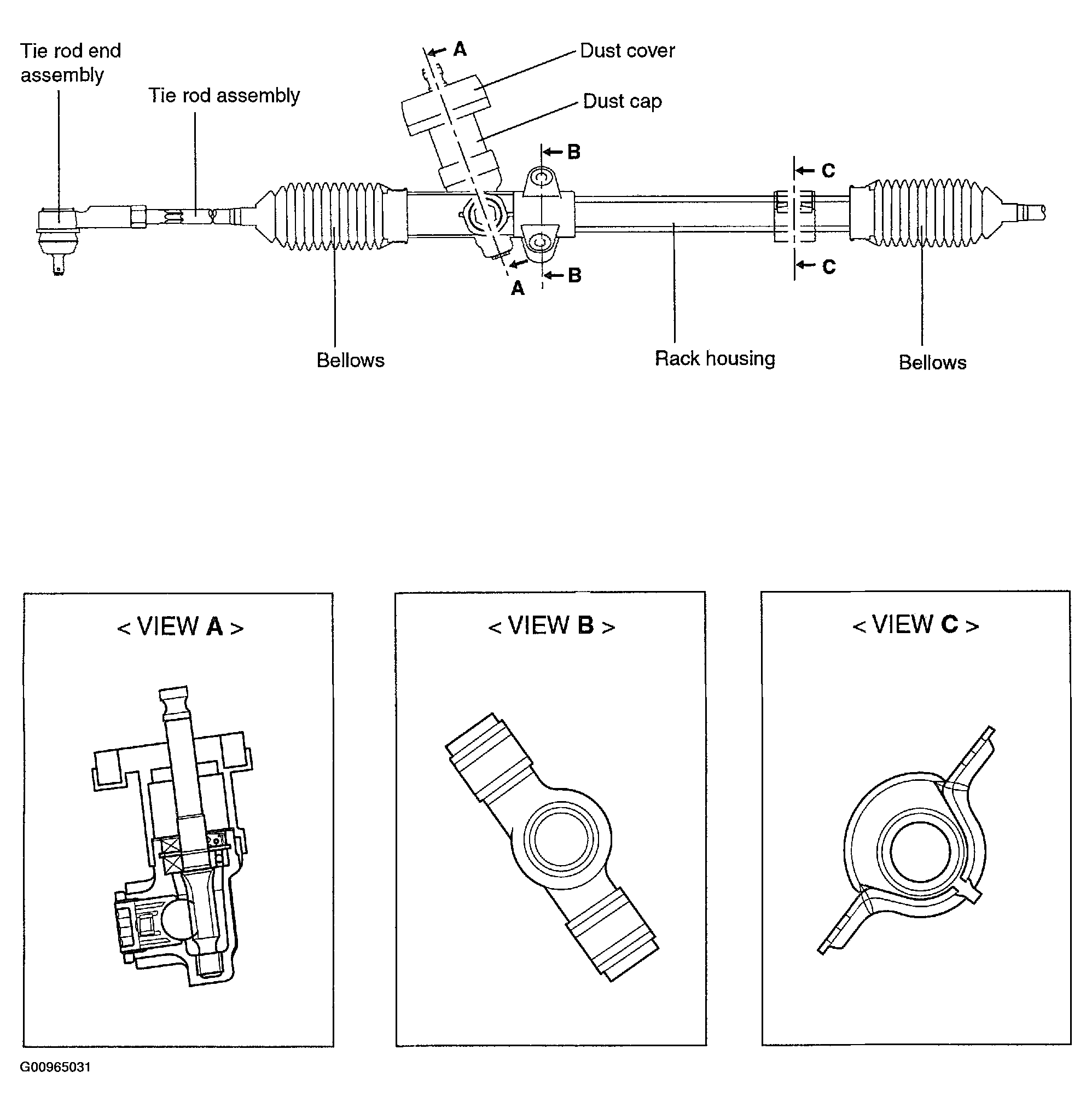

Fig 2: Manual Steering Gear Box Components (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
