Power Steering Oil Pump: Components

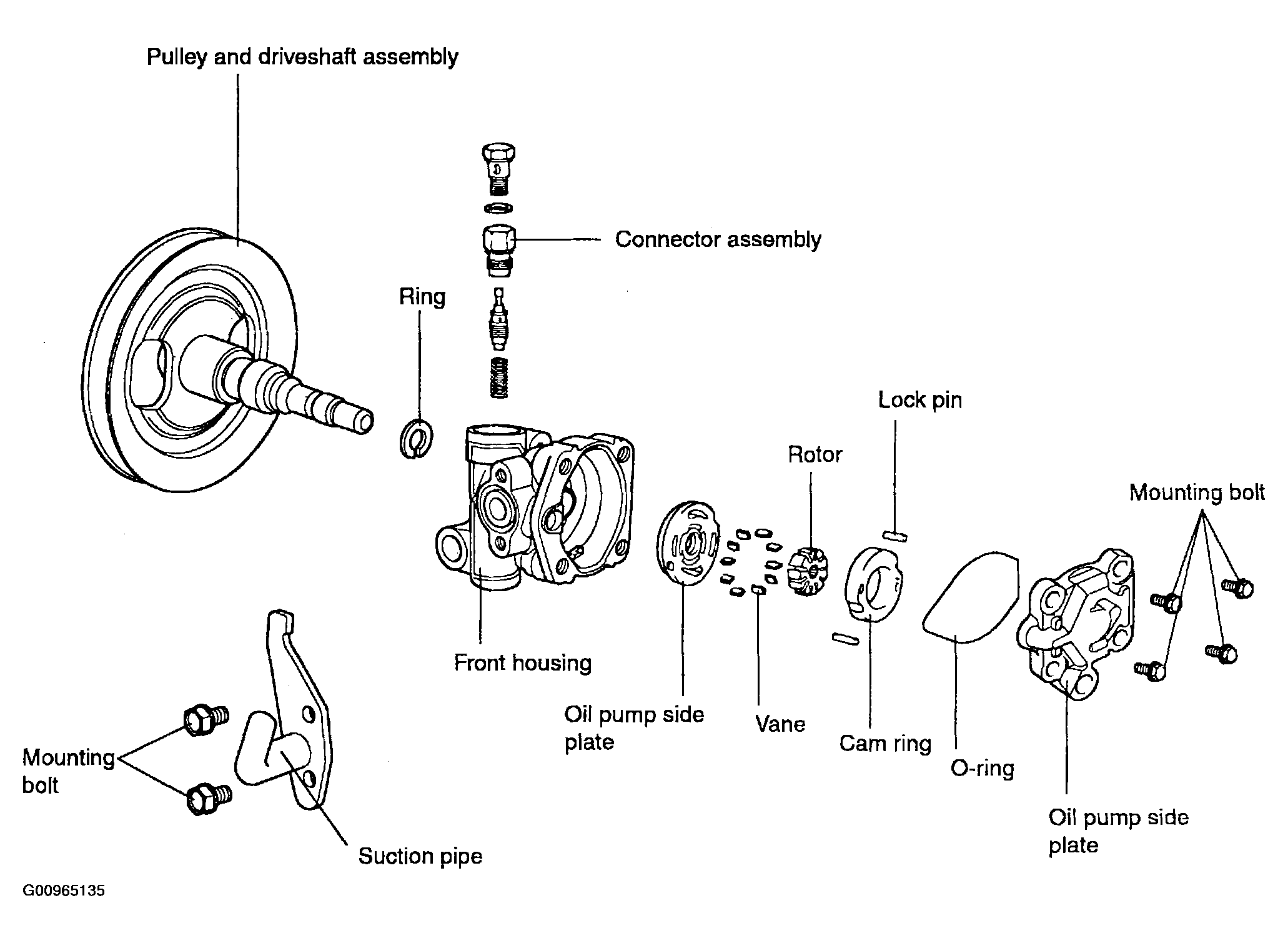

Fig 1: Power Steering Oil Pump Components
G00965135Courtesy of HYUNDAI MOTOR CO.
