Anti-Lock Braking System Wheel Speed Sensor: Components

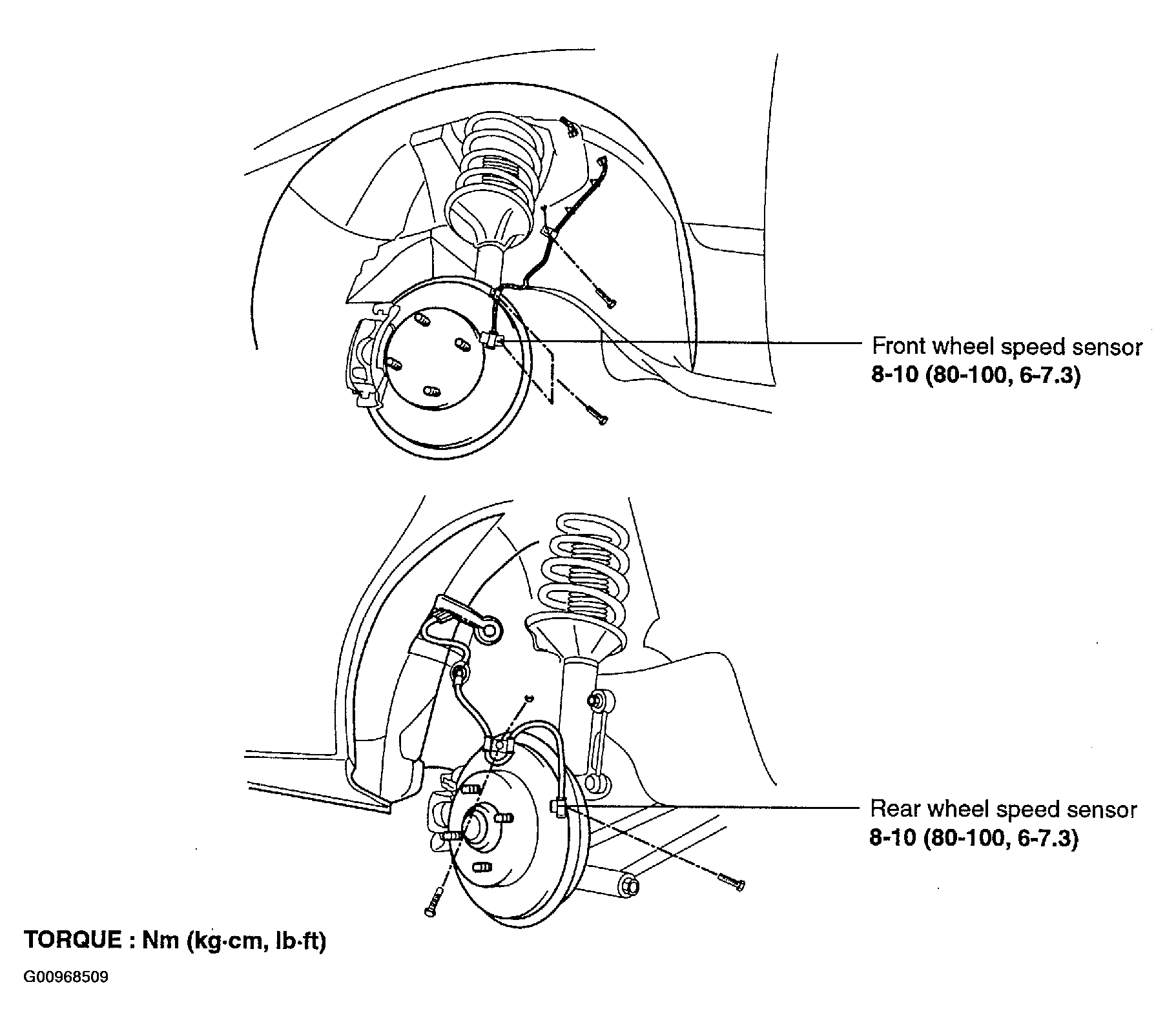

Fig 1: Anti-Lock Braking System Wheel Speed Sensor Components
G00968509Courtesy of HYUNDAI MOTOR CO.
