Pressure Control Valve A, B: Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR CO.

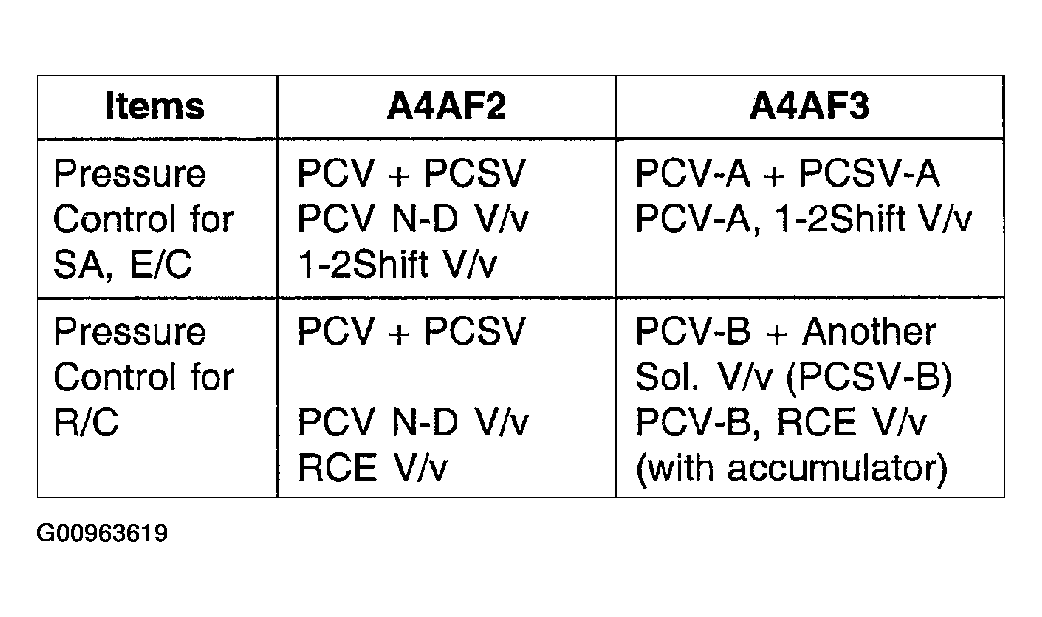

CHANGED POINTS:
- N-D valve has been eliminated.
- PCSV-B has been added for Rear clutch pressure control independently.
- Mechanical accumulator has been adopted.
- E/C release control: PCV-A, Switching of SA, E/C: CSV
