Shift Lock System

1. Check that under the following conditions, the shift lever cannot be moved from the "P" position to any other position.

   IGNITION KEY POSITION: "ON" BRAKE PEDAL: NOT DEPRESSED BUTTON: PRESSED

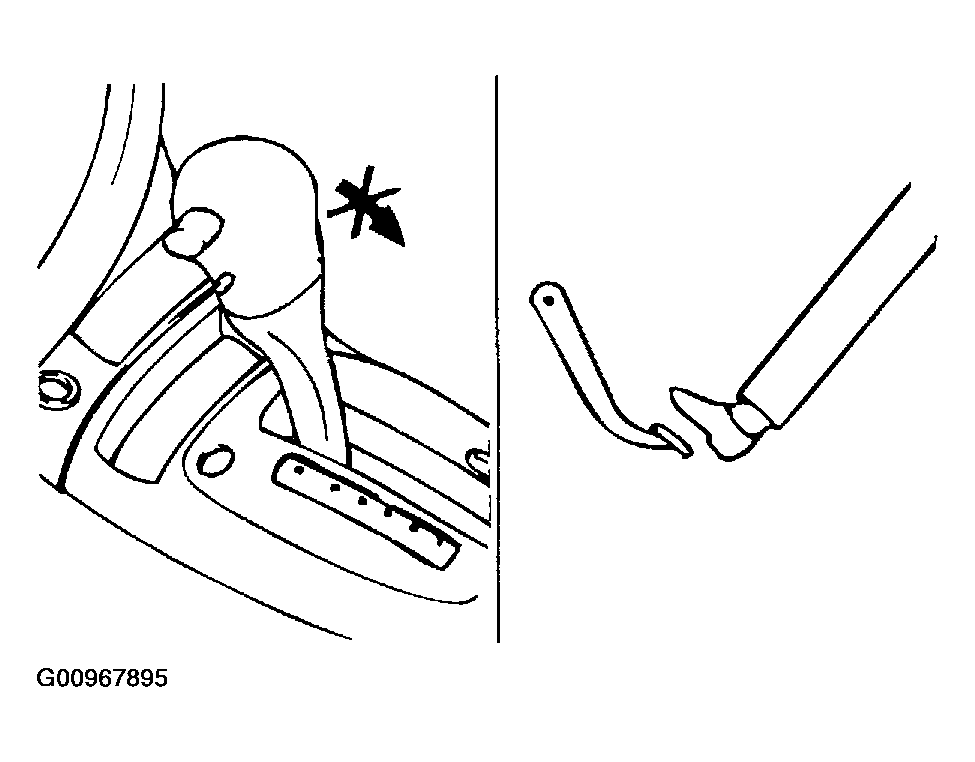

   Fig 1: Checking Shifter Operation With Brake Pedal Not Depressed

   Courtesy of HYUNDAI MOTOR CO.
2. Check that under the following conditions, the shift lever can be moved from the "P" position to other position.

IGNITION KEY POSITION: "ON" BRAKE PEDAL: DEPRESSED BUTTON: PRESSED

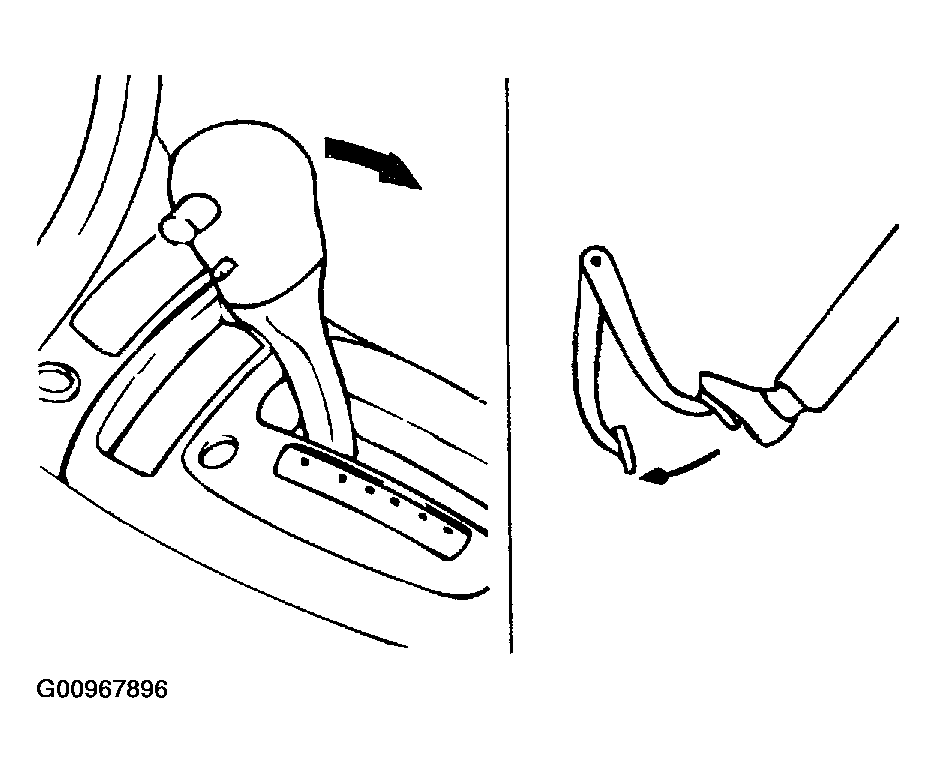

Fig 2: Checking Shifter Operation With Brake Pedal Depressed

Courtesy of HYUNDAI MOTOR CO.
