Using Code Saving Switch

  1. Remove the center fascia panel.
    NOTE: Don't disconnect the negative (-) battery terminal.

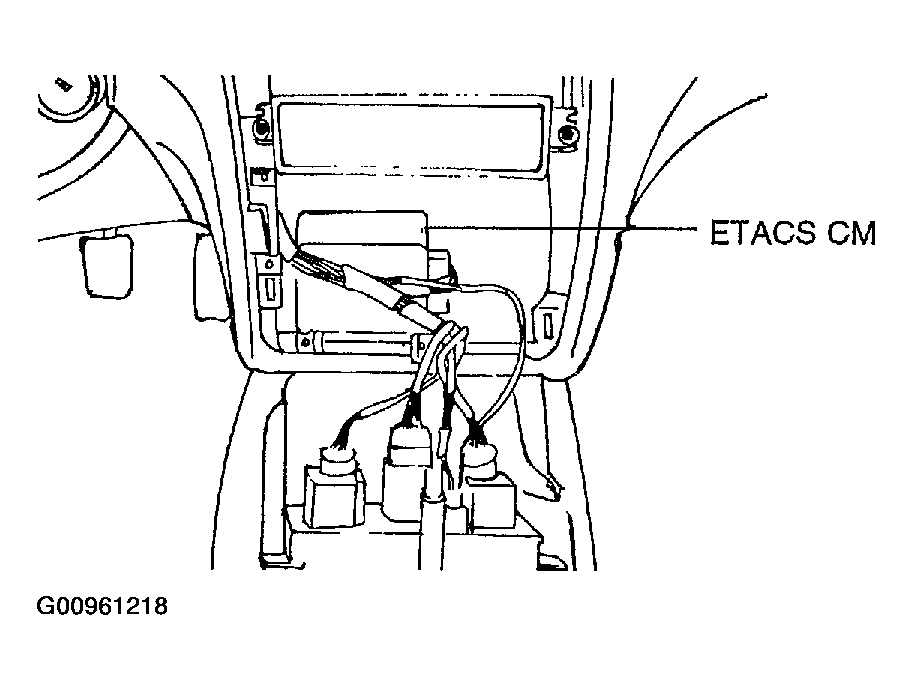

    Fig 1: Identifying ETACS Module
    G00961218Courtesy of HYUNDAI MOTOR CO.
  2. To store new codes:
    • Activate the keyless entry/receiver unit and change the code saving switch of the receiver unit from "OFF" to "SET".
    • The secret codes from the transmitter will be stored into the receiver unit when the door lock button or unlock button is pressed on the transmitter.
    • Save the 2nd transmitter codes in the same manner.
  3. Return the code saving switch of the receiver unit from "SET" to "OFF".
    Fig 2: Identifying SET & OFF Switch
    G00961220Courtesy of HYUNDAI MOTOR CO.
  4. Install the center fascia panel.
